| Prod Model: |
RG6 Tri-shield |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Coverage: |
60% or According to The Clients' Request |
| Jacket: |
PE or PVC |
| Messenger: |
Available |
| Shield: |
Tri-Shield |
| Application: |
LAN Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
ETL |
| Type: |
CATV Coaxial Cable |
| Wire Core Material: |
Bare Copper,Aluninum Wire,Tinned Copper Wire |
| Model: |
Rg59 |
| Brand: |
Libo or OEM |
Product Description

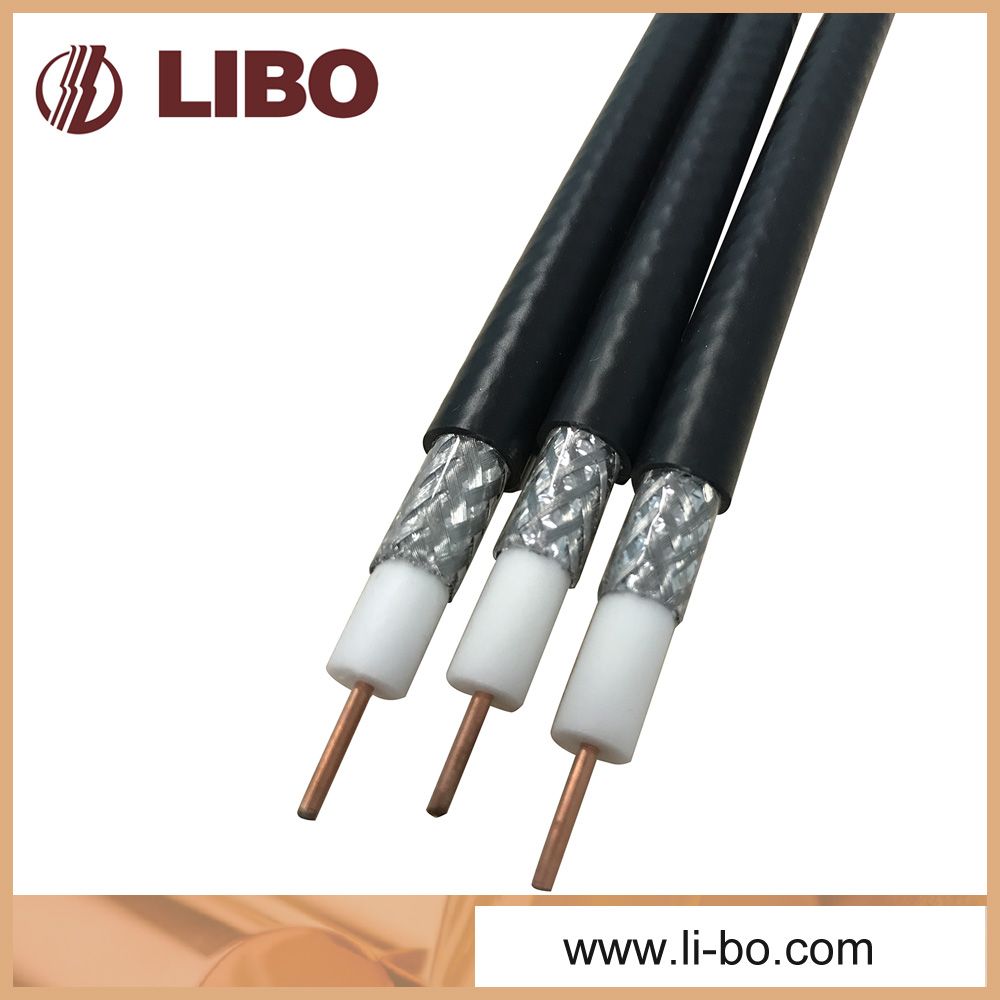

75 ohm Copper Clad Steel Inner Conductor RG6 Black PVC Tri-shield
Tri-shield RG6 Coaxial Cable
18AWG CCS
Polyethylene Insulation
Bonded aluminum PET foil
60% braiding coverage
Tri-shield
PVC jacket
Product description:
21% conductivity copper clad steel (21%CCS).Dielectric core is insulating grade virgin polyethylene. The 1stshield is aluminum Mylar tape, the 2nd shield is 60% coverage braid, PVC or PE for outer jacket.
Center conductor:
18AWG copper clad steel
Nominal diameter: 0.0403"(1.02mm)±0.01(0.0004)
Dielectric:
Gas expanded polyethylene
Nominal diameter over dielectric: 0.18"(4.57mm)
Shield:
1st shield: bonded aluminum tape.
2nd shield: 0.15 aluminum braid wire, 4ends x16 carry, pitch 25mm, 60% coverage.
Maximum ovality: 0.013" (0.33)
3rd shield: normal aluminum foil.
Screening shield: >=80dB
PVC Jacket:
Nominal diameter over jacket:0.278"(7.06mm)±0.008"(0.2mm)
Messenger version: 1.3mm zinc coated (galvanized) carbon steel wire.
Packing:
Buyer's labels and cartons OEM/ODM desgin service is available.
Electrical properties:
Impedance : 75±3 ohms
Velocity of propagation: 82% nominal
Attenuation@ 68OF(20oC):
@Frequency MHZ | dB/100 meters(MAX.) |
5 | 2.66 |
55 | 5.25 |
211 | 10.10 |
250 | 11.25 |
270 | 11.48 |
300 | 12.14 |
330 | 12.76 |
350 | 13.15 |
400 | 14.11 |
450 | 15.03 |
500 | 15.93 |
550 | 16.70 |
600 | 17.77 |
750 | 19.69 |
870 | 21.33 |
1000 | 22.97 |
Applications:
RG6 tri-shield 60% coverage cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Competitive Advantage:
- RG6 tri-shield 60% coverage cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
- RG6 tri-shield cable is of low cost, and it is easy to install as well.
- Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
- Libo cable has a stable workforce and engineering team, lead-time of 20'FCL is 5 days.
- Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and ODM services.
