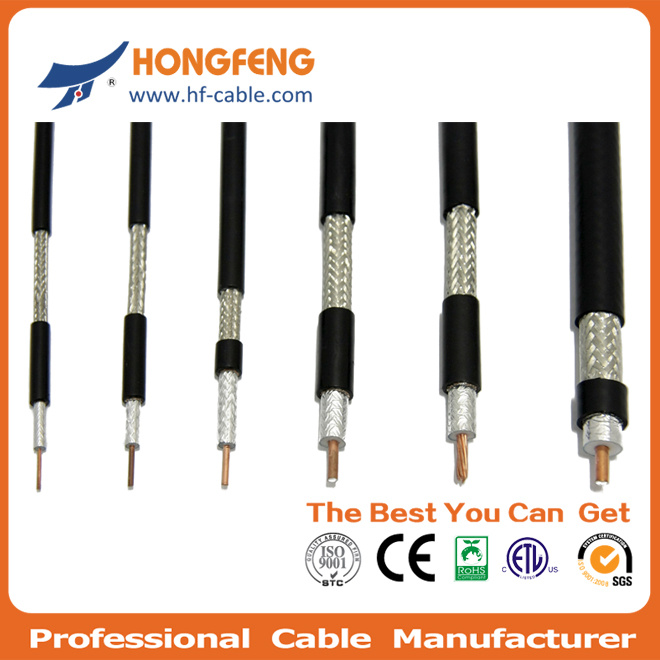

RG6 Triple Shield Coaxial Cable RG6

Name: RG6 Triple Shield Coaxial Cable RG6
Brand: all-electronics-online.com
SKU: 740771085
Availability: InStock
Rating: 4.4 (145 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CIF
Min Order:	100/Roll
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	rg6 tri, rg6 quad, rg6, rg59, rg11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor:	CCS or Copper
Braiding:	60% or 90%
Shield:	Double Shield ,Tri Shield ,Quad Shield
Apd:	Jelly
Jacket:	PVC or PE
Application:	Coaxial Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	ETL
Type:	Coaxial Cable

Product Description

RG6 COAXIAL CABLE

Basic Info.
Model NO.: RF coaxial cable
Application: Local Communication Cable
Conductor Material: Copper
Type: Coaxial Cable
Cover Material: PE
Certification: CE
Jacket: PVC
Jacket Color: Black/White/Color
Impedance: 75 Ohm
Braid Shied Material: Bc, Tc, CCA, CCS, Al-Mg(60%-95%)
Inner Conductor: CCS, CCA, Cu
Inner Conductor Diameter: 0.8-1.3mm
Certificate: ISO9001, Cl2/CATV/Cm UL
Dielectric: 3.66-5.72mm
Insulation Material: Bonded/Non Bonded
Jacket Diameter: 6.1-8.08mm
Export Markets: Global
Additional Info.
Trademark: Hongfeng cable
Packing: 100m/Roll, 200m/Roll, 305m/Roll, 100yard/Roll,
Standard: Rg11 rg59 rg6
Origin: China
HS Code: 85442000
Production Capacity: 100, 000kms/Year

Frequency(MHz)	dB/100ft.(nominal.)	dB/100ft.(max.)	dB/100m(norminal.)	dB/100m(max.)
5	0.54	0.67	1.77	2.20
55	1.45	1.60	4.76	5.25
211	2.64	2.87	8.66	9.42
500	4.09	4.48	13.42	14.70
750	5.11	5.59	16.76	18.34
862	5.47	5.98	17.96	19.62
1000	5.99	6.56	19.65	21.46
1450	7.80	8.00	25.60	26.20
1800	8.60	8.80	28.20	28.90
2250	9.80	10.00	32.20	32.80
3000	11.30	11.90	37.10	39.00

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
