| Prod Model: |
RG6+2C (with two power wires) |
| Jacket Color: |
Customized |
| Trade Term: |
EXW/Fob/CFR/CIF |
| Length: |
Customized |
| Application: |
Submarine Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
ETL, CPR |
| Type: |
RG6+2c (with Two Power Wires) |
| Wire Core Material: |
Customized |
| Model: |
RG6+2c (with Two Power Wires) |
| Brand: |
Shengda |
Product Description
-------------------------------------------------------Product-------------------------------------------------------

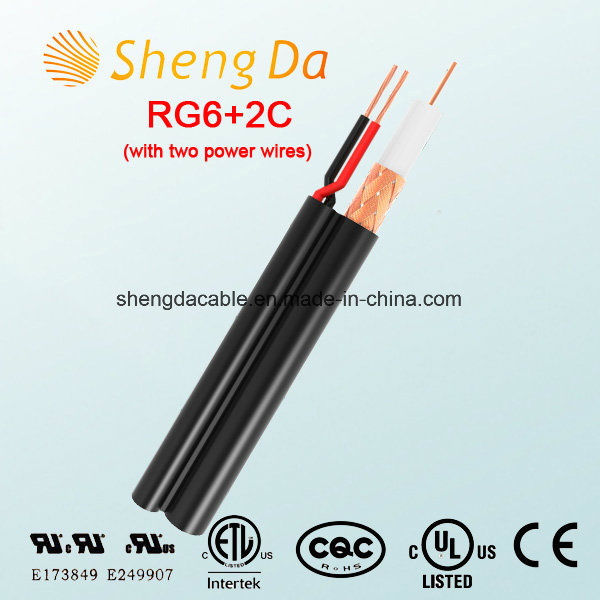

1. Name: RG6 with Two Power Wires Security Coaxial Cable for CCTV Camera
2. Item Code: RG6+2C (with two power wires)
3. Characteristics:
High velocity of propagation, low attenuation and low return loss;
Perfect cable for digital video and audio signals for the highest quality image;
Perfect cable for satellite tv & high speed internet;
Durable & flexible jacket is ideal for running cable through dry wall and over drop ceilings girders;
Allows for bending cable without damaging the shielded insulated wiring.
4. Certificate: UL, ETL, CE, RoHS etc

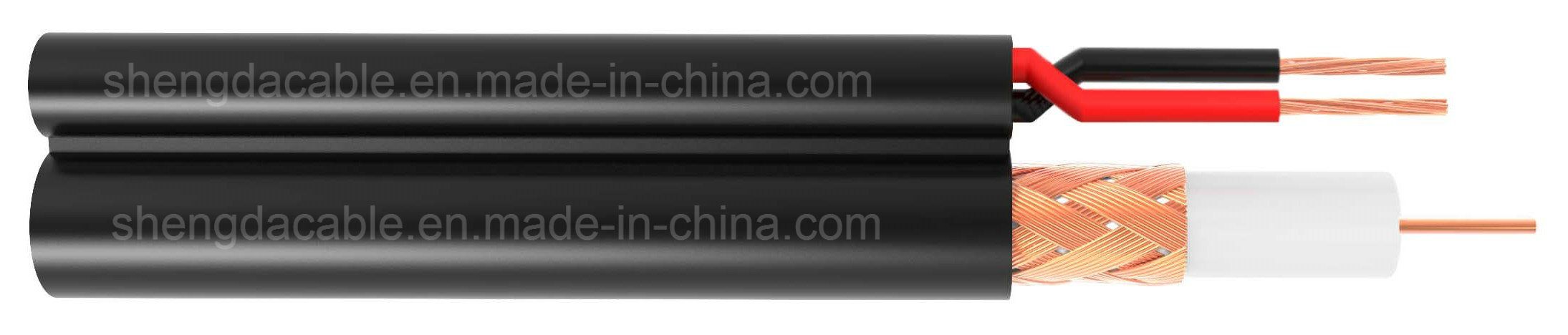

5. Picture:
---------------------------------------------Construction Materials---------------------------------------------
RG6 Coaxial Cable: | |
Center Conductor Material | Copper clad steel / Bare copper |
Dielectric Material | Foam PE |
1st Inner Shield (Tape) Material | Optional |
2nd Inner Shield (Braid) Material | Copper wire / Copper clad Aluminum Wire |
Jacket Material | PVC / PE / LSZH |
Power Wires: | |
Conductor Material | Bare copper |
Insulation Material | PVC OR Polyethylene |
----------------------------------------------------Dimensions----------------------------------------------------
RG6 Coaxial Cable: | |
Diameter Over Center Conductor, nominal | 1.024mm |
Diameter Over Dielectric, nominal | 4.57mm |
Diameter Over First Shield (Tape), nominal | Optional |
Second Shield Braiding Coverage | 60%-97% |
Diameter Over Jacket, nominal | 6.86mm |
Power Wires: | |
Diameter Over Conductor, nominal | 7x26AWG |
Diameter Over Dielectric, nominal | 2.00mm |
--------------------------------------------Electrical Specifications--------------------------------------------
Characteristic Impedance | 75 ohm |
Characteristic Impedance Tolerance | ±3 ohm |
Nominal Velocity of Propagation (NVP) | 82% |
----------------------------------------------------Attenuation----------------------------------------------------
Frequency (MHz) | 5 | 50 | 100 | 400 | 700 | 1000 |
dB/100m | 2.00 | 5.00 | 7.20 | 14.92 | 20.43 | 24.22 |
----------------------------------Regulatory Compliance/Certifications-----------------------------------
Agency | Classification |
RoHS 2011/65/EU | Compliant |
ISO 9001:2008 | Designed, manufactured under the quality management system |

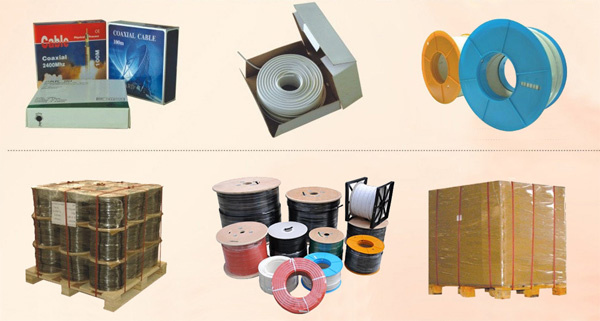

-------------------------------------------------------Packing-------------------------------------------------------
-----------------------------------------------Company overview-----------------------------------------------

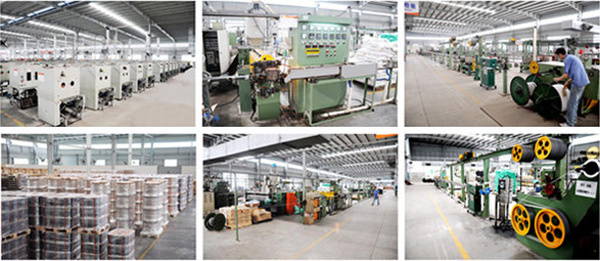

-----------------------------------------------------Workshop-----------------------------------------------------

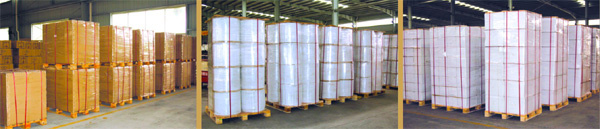

-----------------------------------------------------Stockhouse-----------------------------------------------------
----------------------------------------------------Trade Show----------------------------------------------------
-------------------------------------------------------Contact Details-------------------------------------------------------
Shengda Cable Co Ltd - Manufacturer
Address: No.100, Changbao West Rd, Ronggui, Shunde, Foshan, Guangdong, China
Website: www.shengda-cable.com
Contact::Derek Li
Tel: 86-757-2638 9090
Fax: 86-757-2662 5464
Cell: 86-139-2487-1973
Shengda Cable Co Ltd, formerly known as Shun Fat Electric Manufactory, is affiliated to Shun Fat Innovations Limited, a company incorporated in Hong Kong. Located in Pearl River Delta, the most dynamic region in China Mainland, Shengda enjoys the benefits of what a center of advanced manufacturing and modern service industries brings.
Established in 1985, Shengda has over 300 skilled workers and a team of marketing and engineer experts. In October 2006, Shengda moved its office and factory into Shunde High Tech. Industrial Park, the most famous high tech. Industrial center in China. Shun Fat has a factory site of over 40, 000 square meters. In its 20, 000- square- meter gardenesque workshop, there are series of integrated production appliances, among which are 4 physical foaming machines, 4 PVC Jacket extrusion machines, 2 machines for production of alarm and security cables. There are also over 400 sets of braiding machines, 100 of them are of high speeding and the remaining are of multi-function. To make sure the quality control mechanism works effectively, Shengda is equipped with various kinds of testing instrument and facilities.
Shengda manufactures wide range of products from coaxial cables to security cables with a capacity of over 250, 000 kilometers and annual turnover of nearly RMB100 million. Its products meet standard globally and have been certified or approved by ISO9001, , CCC for China, UL & ETL for US, CSA for Canada, CE & LVD for Europe.
Shengda takes pride in its human assets, its professional staff with caring minds to serve and to improve. Shengda and its working team are making continuous efforts to pursue perfectionism in providing products and service.
