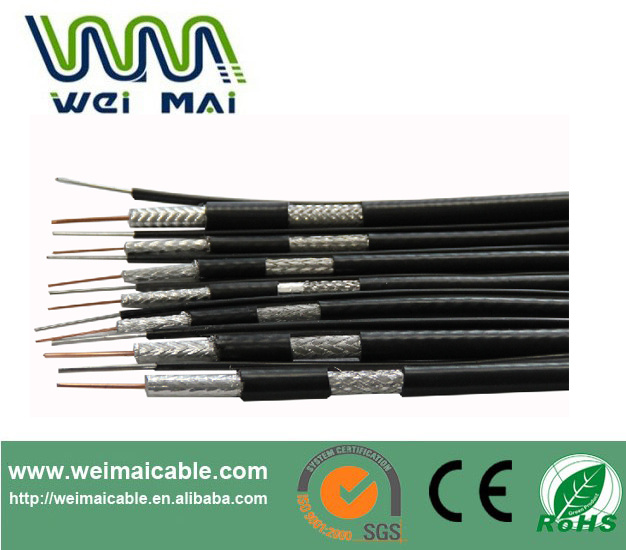

Rg6u Coaxial Cable Rg6u

Name: Rg6u Coaxial Cable Rg6u
Brand: all-electronics-online.com
SKU: 684462042
Availability: InStock
Rating: 4.3 (129 reviews)

Price:	US $ 0.04/Meter
Trade Terms:	FOB
Min Order:	10000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG6U Coaxial Cable RG6U
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL

Product Description

Coaxial Cable

RG6 STANDARD Coaxial cable
1) Construction

Center Conductor:

1.02 + 0.01mm Solid Copper/Copper Clad Steel

Dielectric:

4.57 + 0.05mmFoam PE

Shield:

Al Foil/Bonded Al Foil

Braid Coverage:

40%-95%Al

Jacket:

6.90 + 0.05mm PVC

Jelly/APD

Per Customers Special Requirement

2) Characteristics

Sparker Test:	4000VAC
Impedance:	75 + 3 Ohm
Capacitance:	54 + 3pF/m
Velocity of Propagation:	85%
Return Loss:	20dB min (5-2300MHz)

3) Attenuation

Attenuation	[@68 o F. (20 o C.)]
Frequency (MHz)	Maximum (dB/100 ft.)	Maximum (dB/100 m)
5	0.58	1.9
50	1.5	4.9
100	2.0	6.5
200	2.8	9.2
400	4.1	13.6
700	5.6	18.4
900	6.2	20.3
1000	6.5	21.4
1450	8.0	26.2
1800	8.5	27.9
2100	9.5	31.1
2250	10.0	34.0
3000	11.4	37.5

Linan Weimai Electron Co., Ltd is a manufacturer with more than 6 years

Experience in the communications cable industry in China. With an experien-

Ced and professional team, we have exported our products to many countries

And regions all over the world, especially European countries, North Americ-

An, Asia and the Middle East. We can professionally manufacture and supply

Coaxial cables, LAN cables, alarm cables, telephone cables Speaker Cable,

Audio RCA Cable, Scart cable, Flexible RVV Cable and the cable assembly

etc, and many are approved by CE, RoHS. Current production capacity is

About 180, 000, 000 meters per year. Our factory is located in Lin an city, enjoying great convenience toShanghai and Ningbo Sea Port. We have advanced testing machines, ToTest Attenuation, Return Loss Ect. We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. We welcome

Customers, business associations and friends from all parts of the word to

Contact us and seek cooperation for mutual benefits
