Rg6u Coaxial Cable

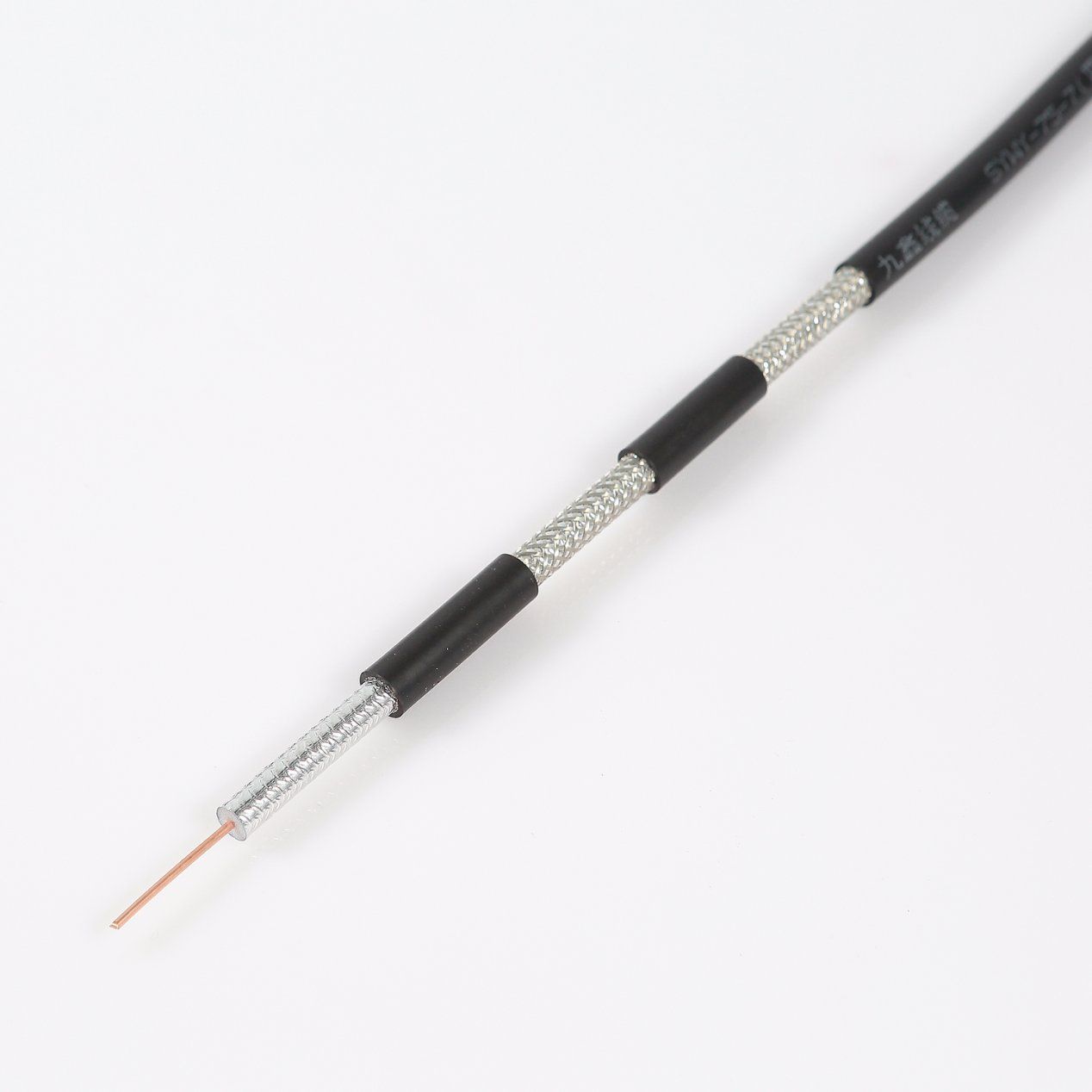

Name: Rg6u Coaxial Cable
Brand: all-electronics-online.com
SKU: 828428605
Availability: InStock
Rating: 5 (64 reviews)

Price:	US $ 1-55KM
Min Order:	1000KM
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG6U
Application:	Coaxial Cable
Conductor Material:	Copper
Cover Material:	PE
Certification:	RoHS
Brand:	Jiuxin

Product Description

RG 6 , 1000FT package

1) Construction
Center Conductor:	1.02±0.01mm CU/CCS
Dielectric:	4.57±0.1mmFoam PE
Shield:	Al Foil
Braid Coverage:	40%-95% Al-Mg
Jacket:	6.91±0.1mm PVC/PE
UL:	CMX, CM, CATV, CL2
Jelly/APD	Per Customer' Special Requirement
2) Characteristics
Sparker Test:	4000VAC
Impedance:	75±3 Ohm
Capacitance:	50±3pF/m
Velocity of Propagation:	85%
Return Loss:	20dB min (5-1000MHz)
Attenuation	[@68o F. (20o C.)]
Frequency (MHz)	Maximum (dB/100 ft.)	Maximum (dB/100 m)
5	0.58	1.9
55	1.6	5.25
187	2.85	9.35
300	3.55	11.64
450	4.4	14.43
600	5.1	16.73
750	5.65	18.54
865	6.1	20.01
1000	6.55	21.49

Suzhou Jiuxin Cable Co. Ltd was founded in 2003. Is a professional manufacture of coaxial cable. Located in Qidu town, Wujiang District of Suzhou City. Company occupies the workshop area 3000 square meters, and employs 200 people.

The company mainly produces CATV television cable (coaxial cable) SYWV75-5 series, SYWV (Y) 75-7 series, SYWV (Y) 75-9 series, SYWV (Y)75-12 series, SYWLY75-9/12 aluminum pipe cable series, RG6 series and RG11 series and so on. Inspection by professional organizations, the company's products meet national standards, and we have got SARFT registration certificate and ISO quality system certification.

Providing excellent service to all customers is the basic policy of Jiuxin. With excellence in quality control and the responsibility of management, we will continuously devote to company future and staff well-beings.
