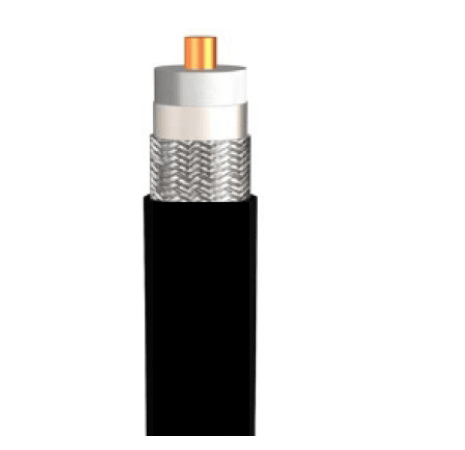

Rg8 Coaxial Cable with 144 Nets Braid

Name: Rg8 Coaxial Cable with 144 Nets Braid
Brand: all-electronics-online.com
SKU: 791368065
Availability: InStock
Rating: 4.8 (121 reviews)

Price:	Negotiable/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG8
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PE
Certification:	UL
Wire Core Material:	CCA
Model:	Rg8
Brand:	Wanma

Product Description

RG8 Cable Description: RG8 COAXIAL CABLE, Outdoor compatible, CCA inner conductor, PE jacket

1. Cable structure

  1.1 Innner conductor: CCA , diameter 2.74±0.02mm
  1.2 Dielectric: Physial Foam PE , diameter 7.24±0.14mm
  1.3 Outer Conductor:  AL Foil,  diameter 8.1±0.15mm
  1.4 Jacket: Black PE, diameter 10.3±0.2 mm

2. Electrical performance

  2.1 Capacitance: 77.1pF/m
  2.2 Impedance : 50Ω
  2.3 Velocity of Propagation : 86%
  2.4 Insulation Resistance: >10000 MΩ·km
  2.5 Cut-off Frequency: 16.2 GHz
  2.6 Inner conductor DC resistance: <4.5 Ω/KM
   Outer conductor DC resistance: <28.0 Ω/KM
  2.7 Peak Power Rating: 16KW
  2.8 VSWR:

100-480 MHz	1.25
500-1900 MHz	1.30
1900-2500MHz	1.35

2.9 Attenuation (dB/100m+5%):

150MHz	5.58 dB
450MHz	9.84 dB
900MHz	14.41 dB
2000MHz	21.65 dB
2500MHz	24.54 dB

2.10 Shielding Effectiveness: >90 dB
2.11. Operating/Storaging/Installation Temperature: -40ºC~85ºC
2.12 Insulation Voltage: 2.5kv
2.13 Jacket Spark: 8.0kv

Electrical Performance test rerort:

Company information:
1. Established in 1989, Zhejiang Wanma Group Special ELectron Cable Co.,LTD has more than 20 years experiences in producting and researching coaxial cables.
2. In the filed of cable industry, Wanma become a trusted OEM and ODM supplier to well-known fortunes 500 enterprises and famous CATV or satellite cables all over the world.
3. Annual output 700000KM of coaxial cables and 20 Millions of cable assemblies, exports more than 1500 containers per year.
4. Major products include RG series cables, HDMI, USB 2.0&3.0&3.1, TYPE C, Audio/Vedio cable, Fiber optical cables, category cables, hybrid cables and EV charging cables.
5. With the development of cables, we have vertical integration of the supply chain, set up own individual plant for PVC, COPPER and ALUMINUM FOIL.
6. Full set of testing equipments complying with UL requirements, cable quality pass trough UL, ISO14000, TL 9000, ISO9000, RoHS, CSA, HDMI, SGS, Wal-Mart EHS, GE and Thomason's audit.

Ulmost quality is our constantly seeking and demand!

Wanma is a professional cable manufacture located in Lin'an, Zhejiang Province, an ancient Chinese city.Since its establishment in 1989, Wanma has devoted over 20 years in constantly research, investigation, and improvement in not only our products, but also management philosophies and technical abilities.Thus allowing us to achieve rapid progress in the field of cable manufacturing industry, and also becoming a trusted OEM and ODM supplier to a number of well-known Fortunes 500 enterprises and many famous CATV, satellite system operators across the world.

Our major products include RG series cable, HDMI, USB2.0&3.0, A/V and Fiber Optic cables.Our annual output includes 700, 000 km of coaxial cables and 20 million pieces of related cable assemblies.Along with the development of cable products, we've also paid great attention to vertical integration of the supply chain;We set up our own individual plant for PVC and Aluminum foil.

Utmost quality is our constantly seeking and demand, we have accurate testing device for high frequency electrical performance, and a full set of testing equipments complying with UL's strict requirements.We passed through ISO 9002 quality system acceptance in 1999, acceptance to UL's safety specification as well as CSA nominated products in 2002.We became HDMI adopter and passed HDMI Compliance Test in 2010.In addition, we have passed GE and Thomson's quality management audit.

We are determined to assume the responsibility for the protection of our environment and society.We passed the SGS ethics acceptance in 2005, ISO 14000 acceptance in 2006, Wal-Mart EHS audit in 2012.Our products completely conform to the requirements of RoHS guidance.

We are always ready for your professional inquiry.
