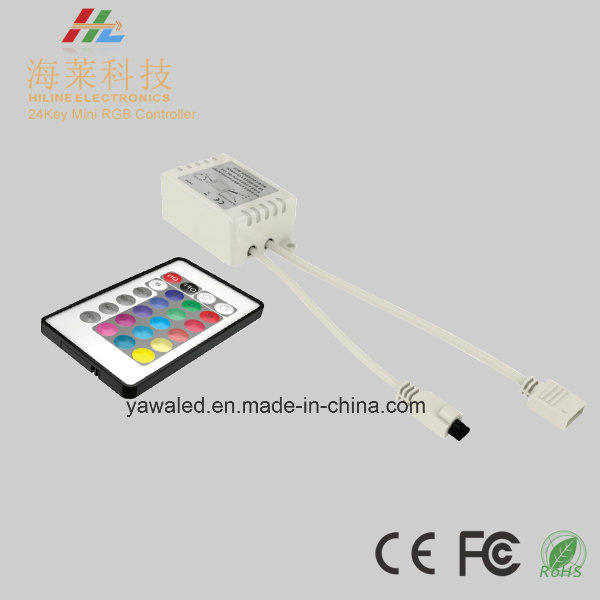

RGB Controller with 24key IR Remoter

Name: RGB Controller with 24key IR Remoter
Brand: all-electronics-online.com
SKU: 800516435
Availability: InStock
Rating: 5 (115 reviews)

Price:	US $ 2-3/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HL-RGB302-2A
Terminal:	Screw
Size:	623523mm
Color:	White
Application:	LED Strip LED Module
Signal Transmission:	IR Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	AAA Battery
Voltage:	DC5-12V

Product Description

5-12V LED mini Controller with IR remoter features:

1.For RGB LED lamp dimming and color changing.
2.Sensitive 24-key IR remote control.
3.20 changing modes, easy wiring, convenient to use.
4.Speed and brightness can be adjusted;
5. Low cost, easy to operate, 3 years warranty;

5-12V LED mini Controller with IR remoter parameter:

Model	HL-RGB302-2A
Power Chosen	CV power supply
Input voltage	DC5-12V
Output voltage	DC5-12V
working temperature	-20degree to 60 centigrade degree
Current load	2A*3CH=6A
Output power	72W
Changing modes	20
G.W	70g
Product siza	62W35H23(mm)
Package size	L90W56H34(mm)

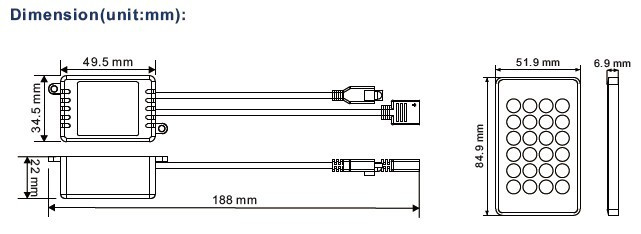

5-12V LED mini Controller with IR remoter structure:

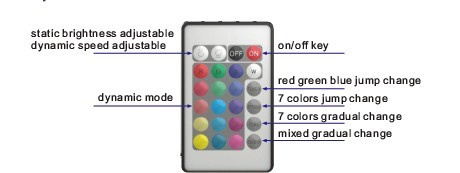

Function description of remoter:

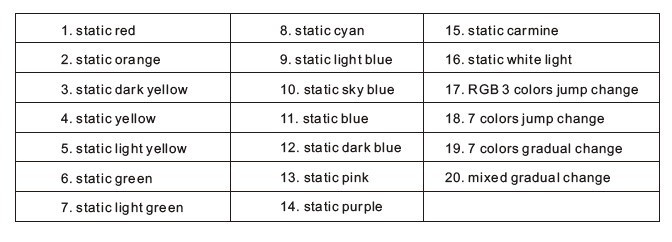

Modes table for 5-12V LED mini Controller with IR remoter

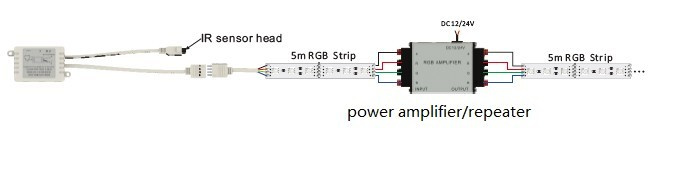

Wiring sample:
