RGB LED Controller

Name: RGB LED Controller
Brand: all-electronics-online.com
SKU: 690419365
Availability: InStock
Rating: 4.8 (128 reviews)

Price:	Negotiable/Piece
Trade Terms:	others
Min Order:	2/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Life:	50000h
Power Source:	AC
Electric Current Type:	DC
Usage:	Tunnel
Base Material:	Aluminum
Input Voltage:	12V
Diffuser:	Polycarbonate
Warranty:	2 Years
Delivery Time:	Within 5~10 Days
Shipment Term:	by Express (DHL, UPS, etc)
Emitting Color:	RGB
IP Rating:	IP65
Certification:	CE & RoHS

Product Description

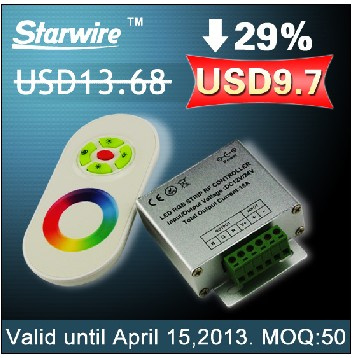

Rainbow Touch LED RGB controller

Name: Rainbow Touch LED RGB controller
Item No.: SW-RC-T-B(three kinds remote for your choice)

Advantage:
1. Match with the RGB flexible strip, easily control the colors change
2. Wireless touching remote and control distance is more than 30meters
3. Two kinds of modes: Gradual change mode and hopping change mode.
4. The rate of color change and the brightness can be easily control
5.3 kind of wireless remoter, you can choose as you like.

Description:
Working Temperature: -20-60 ° C
Voltage: DC12V/24V
Output: 3 channels
Connectiing mode: Common anode
Controller dimension L65XW56XH24 mm
Remote dimension: L113.5XW55XH22 mm
Gross weight: 120g
Static power consumption: < 1 W
Output current: < 6A(each channel)
Power output: 12V: < 72W, 24V: < 144W

Attentions
1) Input voltage of remote control must be the same as RGB strips
2) Match the color of output wiring when connecting
3) When the color doesn't match, for example, it displays blue when touch green, or displays green when touching blue, please check whether the wiring is correct, in this case, exchange blue and green.

Working Temperature	-20-60 ° C
Voltage	DC12V/24V
Output:	3 channels
Connectiing mode	Common anode
Controller dimension	L65XW56XH24 mm
Remote dimension	L113.5XW55XH22 mm
Gross weight	120g
Static power consumption	< 1 W
Output current	< 6A(each channel)
Power output	12V: < 72W, 24V: < 144W

Shenzhen Starwire Lighting Co., Limited, is a professional manufacturer specializing in producing and selling various LED related products: LED bulbs, LED Strip, LED modules, LED floodlight, LED tube and other related products. "No captious customer, only deficient service" is our company's business concept and service principle. "To be the best LED light supplier in China" is our mission. With the effort of 200 workers, we've earned our customer's trust and support since foundation in 2007.

Through our working experience and manufacturing technical capabilities, our company has already obtained ISO Quality Certification and CE Certification. Our R&D department is constantly researching and developing new and innovative lighting series products for the ever-changing market needs. We choose famous LEDs from well-know LED producer to ensure the quality of high power LED products, with product quality controlled by our company. Our quality promise is: There is no best, only better. We strive to exceed 99% yields, and customer satisfaction is our goal.
