(RH-1-15KV/38KV) Outdoor Disconnect Switch (Distribution Type)

Name: (RH-1-15KV/38KV) Outdoor Disconnect Switch (Distribution Type)
Brand: all-electronics-online.com
SKU: 677813685
Availability: InStock
Rating: 4.9 (83 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	20/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RH-1-15KV/38KV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Arc-Extinguishing Medium:	Air
Function:	Overcurrent Protection
Type:	High-voltage
Structure:	Single-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Manual
Grounding:	Single Ground
Series:	Single-Stage
Run:	Turn the Horizontal
Switching Mode:	Single Throw-in
Certification:	ISO
Brand:	Haivol

Product Description

Outdoor Disconnect Switch (Distribution Type) Model RH-1-15kV/38kV
Outdoor disconnect switch used in 15kV\27kV and 38 Kv power distribution systems, with currents from 200 to 630A. And it used as switching on and switching off at the voltage with no load.

Note: For detail, please refer to the catalogue.

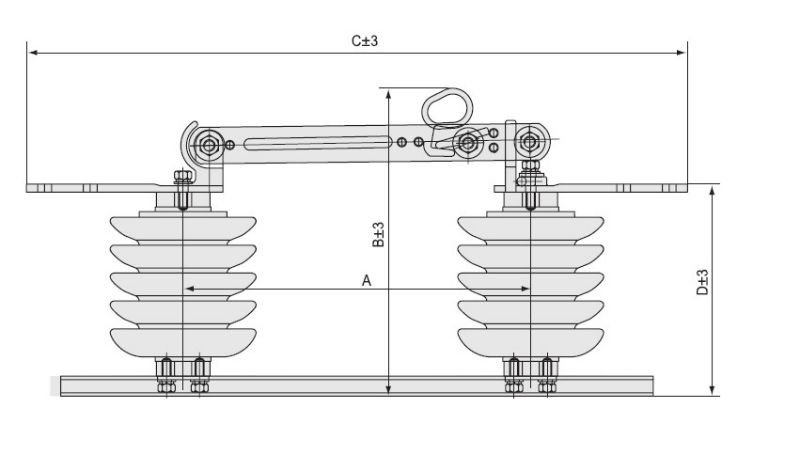

Kv			Amperes	(kA/Is)	Dimensions
Nominal voltage	Maximum voltage	BIL	Nominal Current	Transient Current	A	B	C	D
Nominal voltage	Maximum voltage	BIL	Nominal Current	Transient Current	(mm)
13.8	15	95	200/630	16	305	270	580	186
		95	630	25	305	313	595	230
		110	200/630	16	381	270	650	186
		110	630	25	381	313	670	230
24.2	27	125	200/630	16	381	310	650	228
24.2	27	125	630	25	381	340	670	260
34.5	38	150	630	25	381	368	670	290
34.5	38	170	630	25	381	400	670	316

Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
