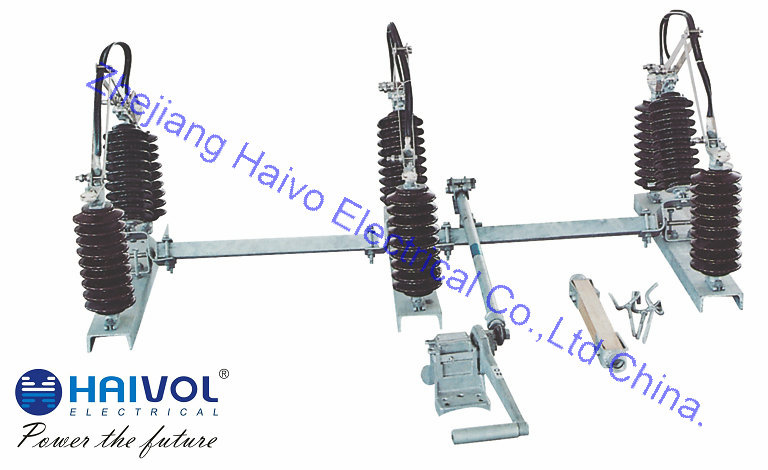

(RH-B-11/33KV) Outdoor Gang Disconnector/Isolator Switch

Name: (RH-B-11/33KV) Outdoor Gang Disconnector/Isolator Switch
Brand: all-electronics-online.com
SKU: 677813225
Availability: InStock
Rating: 4.5 (36 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	20/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RH-B-11/33KV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Speed:	High-Speed Circuit Breaker
Arc-Extinguishing Medium:	Air
Function:	Overcurrent Protection
Type:	High-voltage
Structure:	Three-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Manual
Grounding:	Single Ground
Series:	Three
Run:	Turn the Horizontal
Switching Mode:	Single Throw-in
Certification:	ISO
Common Model:	Gn10
Brand:	Haivol

Product Description

Outdoor Gang Isolator Switch Model RH-B-11/33kV

Outdoor AC Gang isolator switch 11kv/400A-33kv/600A used in 3phase AC 50/60Hz power circuit, it is used as switching on and switching off at the voltage with no load. It apply to IEC standard. IEC60964: 1996, IEC62271-102: 2002

Note: For detail, please refer to the catalogue.

Model	Rated voltage(KV)	Rated current(A)	4S Heat steady e. c. A	Impulse withstand voltage A	Impulse voltage		Power frequency withstand voltage
Model	Rated voltage(KV)	Rated current(A)	4S Heat steady e. c. A	Impulse withstand voltage A	To earth KV	Across the isolating distance KV	To earth KV	Across the isolating distance KV
RH-B	11	400	12500	31500	75	95	38	42
RH-B	33	600	12500	31500	170	195	70	80

Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
