Right Angle BNC Female Connector 4 Pins Square Nut Bulkhead PCB Mount RF Connector

Name: Right Angle BNC Female Connector 4 Pins Square Nut Bulkhead PCB Mount RF Connector
Brand: all-electronics-online.com
SKU: 824943045
Availability: InStock
Rating: 4.4 (66 reviews)

Price:	US $ 0.5-1/Piece
Min Order:	1000/Piece
Pay Type:	T/T,D/P,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG6
Impedance:	50 Ohm
Frequency Range:	DC~1GHz
Temperature Range:	-40~+60
Color:	Silvery

Product Description

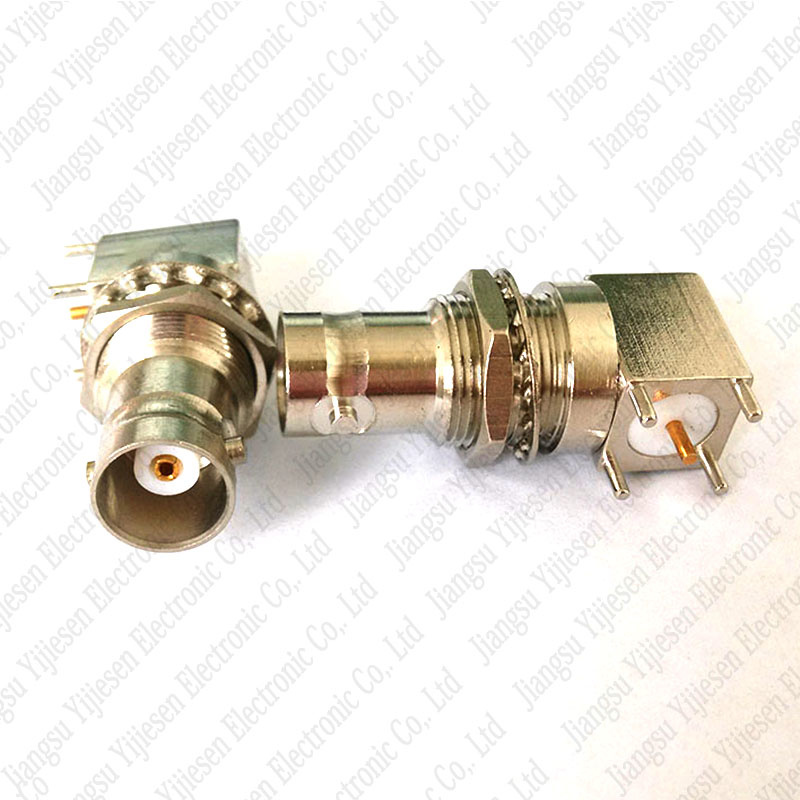

Right Angle BNC Female connector 4 Pins Square Nut Bulkhead PCB Mount RF connector:
BNC Type is one kind of RF connectors using a bayonet type coupling mechanism. Characteristic impedance has types: 50Ω and 75Ω.They can be quick connect/disconnect, reliable lock etc. They are widely used in connection with the RF coaxial cables in computer field, network of wireless, medical equipment and electronic instrument.

Temperature Range	-55~+155ºC(PE Cable -40~+85ºC)
Vibration	100m/S²(10~500Hz)10g
Impedance	50Ω,75Ω
Frequency Range	DC~1 GHz
Working Voltage	500V r.m.s at sea level
Withstand Voltage	1500V r.m.s at sea level
Contact Resistant
Center Contact	≤1.5mΩ
Outer Contact	≤1mΩ
Insulation Resistance	≥5000MΩ
Center Conductor Retention Force	≥0.57N
Voltage Standing Wave Radio
Straight	≤1.20
Right Angle	≤1.30
Durability(Mating)	≥500(cycles)

Our company supplies different kinds of connectors. We stick to the principle of "quality first, service first, continuous improvement and innovation to satisfy the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality and reasonable price.
