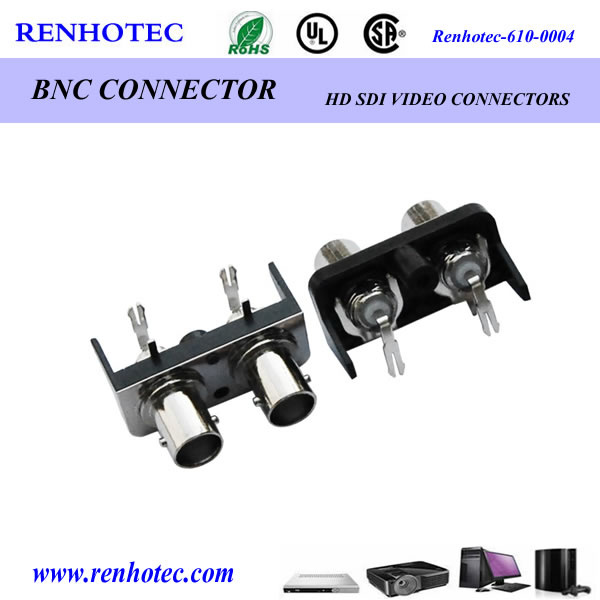

Right Angle BNC Female Connector Plastic Housing Connector

Name: Right Angle BNC Female Connector Plastic Housing Connector
Brand: all-electronics-online.com
SKU: 749290525
Availability: InStock
Rating: 4.4 (87 reviews)

Price:	US $ 0.3/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
RF Connector:	BNC
Material:	Zinc Alloy or Brass
Color:	Nickel
Warranty:	Two Years
Certificate:	FCC CE RoHS
Durability:	500 Times
Type:	Generally Coaxial Connector
Coupling Mechanism:	Double Bayonet Plug-in
Brand:	Renhotec
Shape:	Optional
Medium Pressure:	Optional

Product Description

right angle bnc female connector plastic housing connector
Hot sell BNC connetors for electronic:
BNC series are one kind of cards of thing the mouth join the radio frequency coaxial connection device.It joins rapidly,keeps in touch with the characteristic such as being reliable,applys to the radio equipment and electron tube instrument field and joins the coaxial cable of the radio frequency extensively.

BNC Connector Application:

1.Antennas
2.Broadcast
3.radios
4.Electronic test equipment
5.Serial digital and Analog interface
6,Non-professional radio antenna connections

BNC CONNECTOR MAJOR TECHNICAL CHARCTERISTICS

Temperature Range		-55 to +155°c(PE Cable-40 to 85°c)
Vibration		100m/s (10-500Hz). 10g
Impedance		75Ω
Frequency		DC to 11GHZ
Working Voltage		1000V r.m.s at sea level
Withstanding Voltage		2500V r.m.s at sea level
Contact Resistance	Center contact	≤1m Ω
	Outer contact	≤1m Ω
Insertion Loss		≤0.24dB(6GHz)
Insulation resistance		≥5000M Ω
Center Conductor Retention Force		≥0.56N
Voltage Standing Wave Ratio	Straight	≤ 1.15/6GHz
	Right angle	≤ 1.25/6GHz
Durability(mating)		≥ 500cycles

BNC CONNECTOR MATERIAL AND PLATING

Body	zinc alloy	Nickel plated
Pin contact	Brass	Gold plated
Socket contact	Beryllium or tin bronze	Nickel plated
Resilient Contact	Beryllium-copper	Nickel plated
Insulator	POM
Crimp Ferrule	zinc allloy	Nickel or gold plated
O-ring Sealing	6146 silicon rubber

APPLICABLE STANDARD
MIL=C-39012
CECC 22210
IEC 60169-16
