| Prod Model: |
RHT-612-0029 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Business Type: |
Manufacturer |
| Connector Type: |
SMA Connector |
| Impedance: |
50ohm |
| Orientation: |
Right Angle |
| Body: |
Brass |
| Plating: |
Gold |
| Suitable Cable: |
Rg174 Rg316 Rg178 |
| Service: |
OEM/ODM |
| Warranty: |
12 Months |
| Type: |
PCB Coaxial Connector |
| Coupling Mechanism: |
Clamping Type |
| Interface Type: |
Thread |
| Brand: |
Renhotec |
Product Description

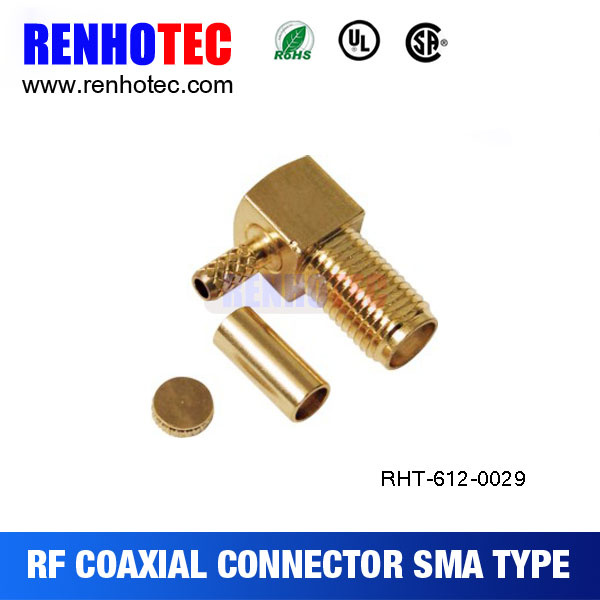

Right Angle Crimp SMA Female Connector for Cable RG174
1. Good quality with reasonable price.
2. On time delivery
3. RoHS compliant
4. Best service
Hot sell SMA connectors for electronic:
SMA connector series product is widely used small coaxial connectors with threaded connections, high strength, and good shock resistance. The outer conductor ends in direct contact, so that the insertion loss to a minimum. Using the appropriate adapter cables, SMA connectors in the 18GHz still has good electrical properties. SMA series has long product life, superior performance and high reliability. Widely used in microwave devices and digital communications equipment RF circuit to connect the RF coaxial cable or microstripit, and the width performance are excellent, high frequently.
Applications:
1. Base Stations
2. Cable Assemblies
3. Components
Major technical characteristics:
| Temperature Range | -55 to +155° C(PE Cable-40 to 85° C) |
| Vibration | 100m/s2 (10-2000Hz) |
| Impedance | 50Ω |
| Frequency | DC to 12.4GHz(semi-rigid cable: 0-18 GHz) |
| Working Voltage | 335V r. M. S at sea level |
| Withstanding Voltage | 1000V r. M. S at sea level |
| Center contact Resistance | ≤ 3m Ω |
| Outer contact Resistance | ≤ 2.5m Ω |
| Insertion Loss | ≤ 0.15dB(6GHz) |
| Insulation resistance | ≥ 5000M Ω |
| Center Conductor Retention Force | ≥ 0.28N |
| Coupling nut retention force | ≥ 180N |
| VSWR Straight | ≤ 1.10+0.02f |
| Right angle | ≤ 1.20+0.03f |
| Durability(mating) | ≥ 500cycles |
Material and plating:
| Body | Brass |
| Contact Male | Phosphor Bronze |
| Contact Female | Beryllium Copper |
| Central Contact | Gold plated |
| Plating | Nickel or Gold Plated |
| Insulator | Telflon |
| Gasket | Silicone Rubber |
| Ferrule | Brass, Nickel/gold plated |
APPLICABLE STANDARD
MIL-C-39012
CECC 22110
IEC 60169-15
