| Prod Model: |
RHT-610 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Impedence: |
50 Ohm&75 Ohm |
| Body Material: |
Zinc Alloy or Brass |
| Fish: |
Nickel or Gold |
| Center Pin: |
Brass Gold Plated |
| Insulator: |
PTFE or POM |
| Business Type: |
Manufacturer |
| Type: |
Generally Coaxial Connector |
| Coupling Mechanism: |
Threaded Connection |
| Shape: |
Optional |
| Medium Pressure: |
Optional |
| Brand: |
Renhotec |
Product Description

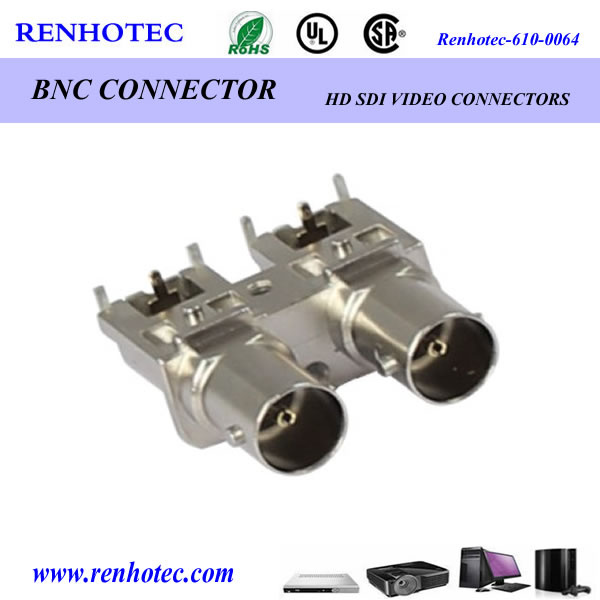

Right Angle Dual BNC Female Connector PCB Mounting BNC Connector
Features & Benefits
. | Bayonet coupling mechanism provides quick mating and unmating |
| . | 50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements |
| . | 50 Ω and 75 Ω connectors are intermateable to ensure non-destructive mating |
| . | Three grades of connectors are available for military, industrial and commercial applications |
Applications
. | Antennas | . | Automotive | . | Base Stations |
| . | Broadcast (75 Ω) | . | Cable Assemblies | . | Cable Modems |
| . | Components | . | Computers/LANs | . | Instrumentation |
| . | Oscilloscopes | . | Medical Equipment | . | Mil-Aero |
| . | Radios | . | Satcom | . | Surge Protection |
| . | Telecom | | | | |
Specifications
Electrical |
| Impedance | 50 Ω 75 Ω nominal |
| Frequency Range | 0-4 GHz with low reflection |
| Voltage Rating | 500 volts peak |
| Dielectric Withstanding Voltage | 1,500 volts rms |
| VSWR | M39012 straight connectors: 1.3 max 0-4 GHz M39012 right angle connectors: 1.35 max 0-4 GHz |
| MIL-C-39012 Contact Resistance | Center contact: 1.5 mΩ; Outer contact: 0.2 mΩ |
| MIL-C-39012 Insulation Resistance | 5,000 MΩ |
| MIL-C 39012 Braid to Body | 0.1 milliohm |
| MIL-C-39012 RF Leakage | -55 dB min at 3 GHz |
| MIL-C-39012 Insertion Loss | 0.2 dB min at 3 GHz |
| Mechanical |
| Mating | 2-stud bayonet coupling per M39012 |
| Braid/Jacket Cable Affixment | All crimps are hex braid; clamps are screw-thread net and braid clamp |
| Center Conductor Cable Affixment | Crimps are crimp or solder; all other are solder only |
| Captivated Contacts | All crimps unless specified otherwise |
| Cable Retention | Crimps: 20-100 lbs; All others: 30-70 lbs |
| Material |
| Male Contact | Brass |
| Female Contact | Beryllium copper or phosphorous bronze, silver or gold-plated |
| Other Metal Parts | Brass, nickel finish; M39012 is silver finish |
| Insulator | TFE, copolymer of styrene, glass-TFE (hermetically sealed) |
| Crimp Ferrule | Copper/brass |
| Environmental |
| Temperature Range | TFE insulators: - 65°C to + 165 °C Copolymer of Styrene: - 55°C to + 85°C |
| Weatherproof | Clamps with clamp gaskets; crimps with heat-shrink tubing |
| Hermetic Seals | Pass helium leak test of 2x10 -8 cc/second |
| Shock | MIL-STD-202 method 202 |
| Vibration | MIL-STD-202 method 202, test condition D |
| Moisture Resistance | MIL-STD-202 method 106 |
| Corrosion | MIL-STD-202 method 101, test condition B |
| Temperature Cycling | MIL-STD-202 method 102, test condition D |
| Altitude | MIL-STD-202 method 105, test condition C |
| Military |
| MIL-C-39012 | Where applicable |
Note: These characteristics are typical but may not apply to all connectors.
dosin straight bnc switch plastic rf connector cctv dvr series rj11connector
Our Quality:Quality is the life of DOSIN We use only the best quality (original) components to ensure the standard of our product range is of the highest caliber. All products we sold out are strictly selected and tested by our QC department.
Warranty: We provide comprehensive after-sales service, including quality service, guidance services, We focus on customer needs in every detail. Please contact us if you need our detail warranty term.
Payment: We accept payment via TT (Bank transfer), Western Union, Escrow. We accept bank transfer for large orders. For small order, you'd better pay via Western union or Escrow.
Shipping:We offer as many shipping options as possible, including DHL, UPS, TNT, FEDEX and EMS. Do you have any question? Contact me now! We look forward to cooperating with you.
Renhotec offers many types of BNC connectors. PCB mount BNC female connector/ BNC male cable connector/Flange chassis mount BNC connectors/ Straight right angle BNC connector/ Crimp solder compression BNC connector,etc. If you can't find the exact model you need, please don't hesitate to contact us!
