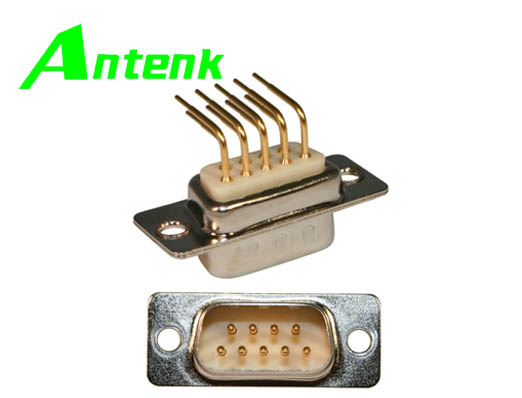

Right Angle Machined Contacts D-SUB Connector

Name: Right Angle Machined Contacts D-SUB Connector
Brand: all-electronics-online.com
SKU: 690385585
Availability: InStock
Rating: 5 (131 reviews)

Price:	US $ 1.2/Piece
Trade Terms:	FOB,EXW
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	D-SUB connector series 006
Markets:	North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Type:	Dual Hole Terminals
Material:	Copper
Application:	Transmission of Electrical Signals
Production Process:	Stamping

Product Description

D-SUBMINIATURE CONNECTOR MACHIND PIN P. C. B MOUNT RIGHT ANGLE with MALE & FEMALE TYPE
FEATURES:
* Contact positions: 09, 15, 25, 37 and 50
* Available in plug, right angle styles
* Provides ground continuity from cable-to-PC board
* Available in 3 types of body length (8.08mm, 9.4mm and 14.98mm) measured from front face Of mounting flange to first row of contacts
* Optional plating available
* Various options of fasten types
* Mates with industry compatible connectors

MATERIALS:
* Contacts: Brass
* Housing: PBT+30% Glass Fiber (UL 94V-0)
* Shell: Cold Roller Steel

ELECTRICAL CHARACTERISTICS:
* Current rating: 5 Amperes
* Withstanding Voltage: AC 1250V r. M. S
* Insulation Resistance: 5000 Megohms Minimum At DC 500V
* Contact Resistance: 15 Milliohms Maximum
* Operation Temperature: -55C° ~ +105C°
* Applicable P. C. Board thickness: . 063"[1.6mm]

MECHANICAL CHARACTERISTICS:
* Contact Resistance Force: 341 g. Maximum
* Contact Separation Force: 20 g. Minimum

FINISHES:
* Contact: Gold Flash, 10, 15, 30, 50u"
* Shell: Nickel Plated, Tin Plated

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
