| Prod Model: |
OTG CABLE |
| Cable Use For: |
Printer |
| Cable Conductor: |
28AWG Bare Copper |
| Cable Material: |
PVC and Copper |
| Cable Length: |
as Customer's Request |
| Cable Color: |
Black ,Blue Color |
| Cable Warranty: |
12 Months |
| Cable Packing: |
Poly Bag,Blister ,Gift Box |
| Cable Certification: |
Ce,RoHS |
| Application: |
Computer |
| Interface Type: |
USB |
| Material: |
Copper |
| Pin: |
4Pin |
| Feature: |
Waterproof |
| Power Cable Type: |
Two-pin |
| Shape: |
Round |
| Computer Cable Type: |
Power Line |
| Printer Cable Type: |
USB |
| Color: |
Black |
Product Description

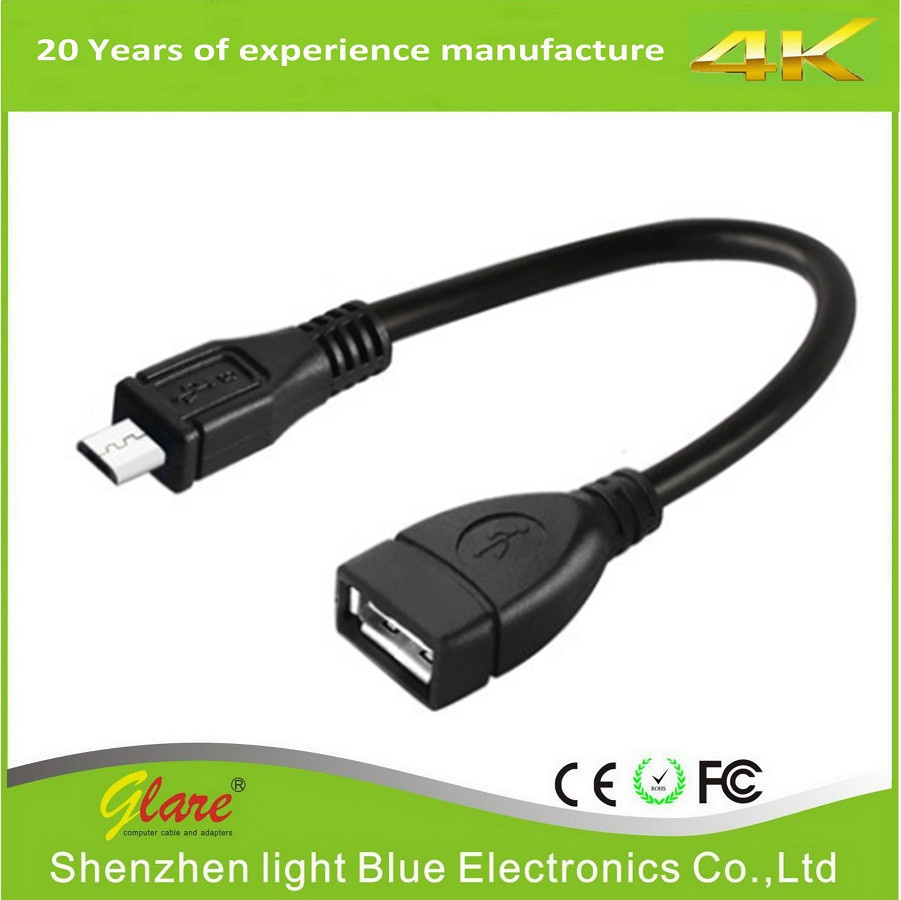

right angle micro USB B male to USB 2.0 A Female OTG Cable
1) Functions:
This cable looks like a USB micro cable but it isn't! Instead of a USB A Plug, it has a USB A Socket on the end. This cable is designed for use with OTG (On the Go) host devices (like the Arduino Due or many tablets) so you can connect a mouse, keyboard, or any other USB device. You'll still need to have drivers on the device, this cable is just a cable and contains no microcontroller or electronics inside.
Features
This On-the-Go(OTG) Cable allows you to connect the following USB devices to your smart and tablet.
1# USB Flash Memory:
You can access and view content stored in the memory drive and also connect or transfer files between the flash memory and the smart phone.
2# External Hard Disk:
This will require power supply to the external hard disk. You can access and view content stored inside the hard disk and even copy of transfer files between the hard disk and the smart phone.
3# Mouse and Keyboard:
Allow you to task in comfort of a normal size keyboard and mouse.
Work with almost all models of USB-interfaced keyboard and mouse.
Specifications
USB 2.0 version
Straight cable, PVC molding injection
Wire specification: 28AWGx1P+28AWGx2C+Al foil+Brad+OD:3.5MM
Cable Length: 10CM+0.5CM
Available in Black Color
2) More Information
1.Product Features:
| 1 | Cable Features: | Nickel plated connectors |
| 2 | Conductor Material | Copper |
| 3 | Insulation Material | PVC |
| 4 | Cable Jacket | PVC |
| 5 | Cable Length: | 10CM |
| 6 | Cable Key Features (AH): | Over Molded |
| 7 | Cable Subcategory: | OTG Cable |
| 8 | Compliant Standards: | USB / Hi-Speed USB |
| 9 | Connectivity One Side: | 4 Pin USB Type A |
| 10 | Connectivity Other Side: | "L" Shape 5pin Micro-B |
| 11 | USB A Gender: | Female |
| 12 | Micro-B Gender: | Male |
| 13 | Technology: | Double shielded(Al foil and Braid) |
| 14 | Color: | Black |
2.Technical Details:
| Micro USB OTG to USB 2.0 Adapter. |
| Quantity: | 500PCS |
| Connect your peripheral devices like mice, keyboards and more to your portable electronics such as cell phones, eReaders, tablets, and laptops with this micro USB OTG (on-the-go) to USB 2.0 adapter. |
| Functions depended on the device's operating system and applications. |
| Operate small USB peripherals by plugging in the adapter cable which transforms your mobile or portable device into a USB capable unit. |
| Adapter allows you to use standard USB devices with micro 5-pin oriented electronics. |
| Connectors: | Standard USB 2.0 port. |
| Micro USB OTG Connector. |
Company information
Shenzhen Light Blue Electronics Co., Ltd. is a leading professional manufacturer of cable assembly. Our products include HDMI cable, USB3.0/2.0 cable, VGA CABLE,MHL Cable, (DP)Displayport Cable, SATA cable, Network Lan Cat cable, AV cable, Coaxial cable,DVI cable, HDMI adapter, HDMI splitter, HDMI switch, HDMI extender, HDMI repeater, Chargers, Earphone cable, which all attained "CE", "UL", "FCC" and "RoHS", "ATC", ISO9001:2008, ISO14001:2004 certificates, and they have been sold to America, England, Mexico, Germany, Chile, Greece, Australia and European countries. We guarantee each product will be Full-checked 100%. If there are bad products, we will promptly pay compensation to customers without any charge.
Package information
1pcs/poly bag
250pcs/carton
carton size:46*30*25cm
FAQ
With years of export experience along with excellent quality, advanced services and competitive prices, YITAILI has won numerous customers' trust and support.More detail please contact us.
Payment term?
(1)Payment:T/T only,30%deposit,the balance before delivery.
(2)Production leading time:10-15days,see qty to confirm.
(3)Shipping out:Guangzhou or Shenzhen
Certification
FCC,CE,ROHS
Shenzhen Light Blue Electronics Co., Ltd. is a leading professional manufacturer of cable assembly. Our products include HDMI cable, USB3.0/2.0 cable, VGA CABLE, MHL Cable, (DP)Displayport Cable, SATA cable, Network LAN Cat cable, AV cable, Coaxial cable, DVI cable, HDMI adapter, HDMI splitter, HDMI switch, HDMI extender, HDMI repeater, Chargers, , which all attained "CE", "UL", "FCC" and "RoHS", "ATC", ISO9001: 2008, ISO14001: 2004 certificates, and they have been sold to America, England, Mexico, Germany, Chile, Greece, Australia and European countries. We guarantee each product will be Full-checked 100%. If there are bad products, we will promptly pay compensation to customers without any charge
Our factory With strong technical capabilities, complete set of equipment and facilities, advanced technology and perfect testing and inspecting measures, we specialize in designing, developing, manufacturing and marketing connection cables which are applied to all kinds of computer, network, communication, car, medical resource, remote monitoring and household appliances. We can also undertake OEM orders of processing various special fiber optic cables. Our products sell well in domestic and foreign market and are widely used by many famous corporations.
We have set up a functional modern business management system and carried out ISO9001: 2000 quality management system for many years. We are authorized with independent import and export rights. Our products have obtained many product safety certificates including CCC (China) and UL (USA).
We will try our best to satisfy customers' requests. We sincerely welcome all clients to cooperate with us hand in hand for a wonderful future!
