| Prod Model: |
RHT-612 |
| Impedence: |
50ohm |
| Orientation: |
Right Angle/90 Degree |
| Material: |
Zinc Alloy |
| Plating: |
Gold Plating |
| Factory Direct Sale: |
Yes |
| OEM: |
Weclome |
| Type: |
Generally Coaxial Connector |
| Coupling Mechanism: |
Threaded Connection |
| Interface Type: |
SMA |
Product Description

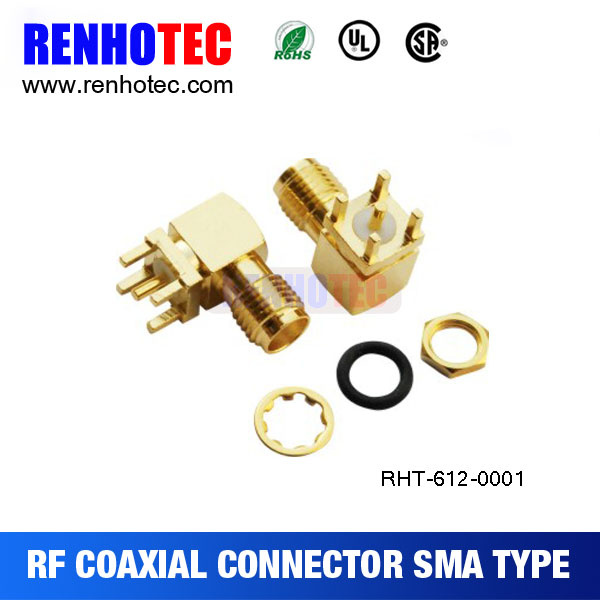

Right Angle SMA Connector O Ring SolderingUsing a threaded interface, SMA 50 Ohm connectors are semi-precision units that provide excellent electrical performance from DC to 18 GHz and outstanding mechanical durability. SMA connectors feature stainless steel or brass construction and ¼ - 36 threaded coupling, which offers high performance in a compact design.| Major Technical Characteristics |
| Temperature Range | -5 degree to +155 degree
(PE cable -40 degree to +85 degree ) |
| Vibration | 100m/S2 (10 to 2000 Hz), 10G |
| Impendance | 50ohm |
| Frenquency Range | DC-12.4GHz( Semi-Rigled Cable DC-18GNz) |
| Working Voltage | 335V r.m.s at sea level |
| Workstandinging Voltage | 1000V r.m.s at sea level |
| Center Contact Resistance | ≤3Mohm |
| Outer Contact Resistance | ≤2.5Mohm |
| Insulation Resistance | ≥5000Mohm |
| Center conductor Retention Force | ≤0.28N |
| Coupling Nut Retention Force | ≥180N |
| Insertion Loss | ≤0.15dB/6GHz |
| VoltaggeStanding Wave Ratio : |
| Straight | ≤1.10+0.02f |
| Right Angle | ≤1.20+0.03f |
| Dutability (Mating) | ≤500(cycles) |
| Materials |
| Body | Brass |
| Contact | Brass |
| Insulator | PTFE |
| Suitable cable |
| RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US) |

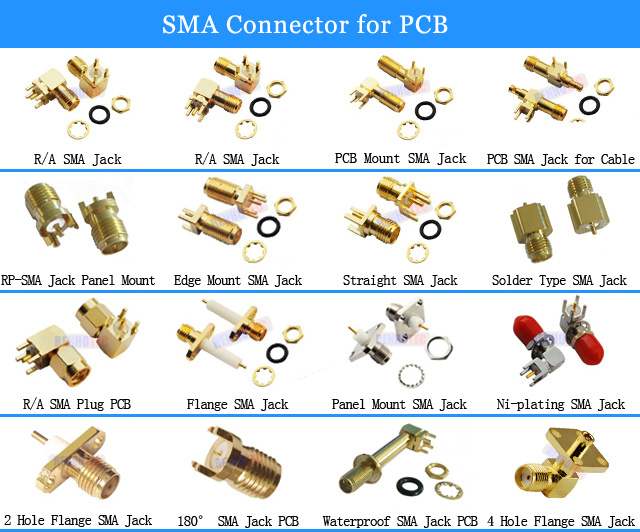

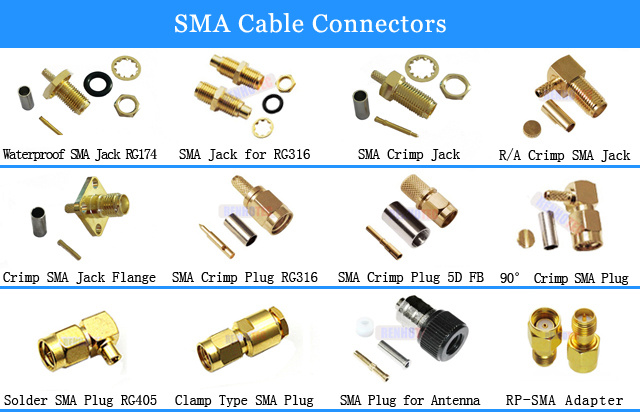

More SMA Connectors
The useage of sma connector:
1. CATV
2. Cable Assemblies
3. Boxes Cable Assemblies
4. Base station
5. Antenna
6 communication systom
1.100% tested before delivery.
2. Guarantee the prompt delivery. The stocked goods will be delivered within 3 days and the customized products will be delivered as arranged date.
3. We are glad to makes samples according to our customers'drawing, specifications and samples.
4. OEM is available.
5. Free to contact us, we can offer you the best service, top-quality goods, competitive price and timely delivery.
6. We have got the certificate ISO9001: 2008
