| Prod Model: |
DOSIN-802-0013 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Impedence: |
50ohm |
| Plating: |
Silver or as Request |
| Orientation: |
Right Angle/90 Degree |
| Connector Gender: |
Female Jack |
| Factory Direct Sale: |
Yes |
| Small Order: |
Acceptable |
| OEM: |
Weclome |
| Type: |
PCB Coaxial Connector |
| Coupling Mechanism: |
Threaded Connection |
Product Description

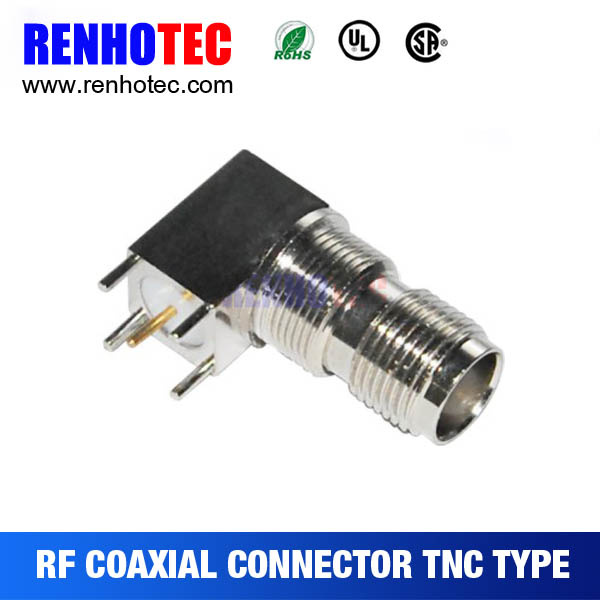

Right Angle TNC Connector for PCB Board Connector
Identical to the BNC design, but have a threaded connector. Operates better than the BNC connector at microwave frequencies. TNC are miniature, threaded weatherproof units with a constant 50Ω impedance and operate from DC to 11 GHz. Widely used in WiFi equipment, radar, and military/aerospace systems.
Renhotec offers many types of TNC connectors. PCB mount TNC female connector/ TNC male cable connector/Flange chassis mount TNC connectors/ Straight right angle TNCconnector/ Crimp solder TNC connector,etc. If you can't find the exact model you need, please don't hesitate to contact us!
| Major Technical Characteristics |
| Temperature Range | -55 degree to +155 dregree |
| Vibration | 100m/S2 (10 to 2000 Hz), 15G |
| Impendance | 50ohm |
| Frenquency Range | DC-11GHZ |
| Working Voltage | 500V r.m.s at sea level |
| Workstandinging Voltage | 1500V r.m.s at sea level |
| Center Contact Resistance | ≤10Mohm |
| Outer Contact Resistance | ≤2.5Mohm |
| Insulation Resistance | ≥5000Mohm |
| Center conductor Retention Force | ≤0.57N |
| Insertion Loss | ≤0.20dB/3GHz |
| VoltaggeStanding Wave Ratio : |
| Straight | ≤1.22/3GHz |
| Right Angle | ≤1.30/3GHz |
| Dutability (Mating) | ≤500(cycles) |
| Materials |
| Body | Brass..........................Nickel |
| Contact Plating | Brass.........................Gold |
| Insulator | Teflon |
| Nut | Brass.........................Nickel |
| Washer | Brass.............................Nickel |
| Suitable cable |
| RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US) |
