| Product Name: |
Right Angle TNC Jack Connector for PCB Board |
| Type: |
PCB Coaxial Connector |
| Coupling Mechanism: |
Threaded Connection |
Product Description

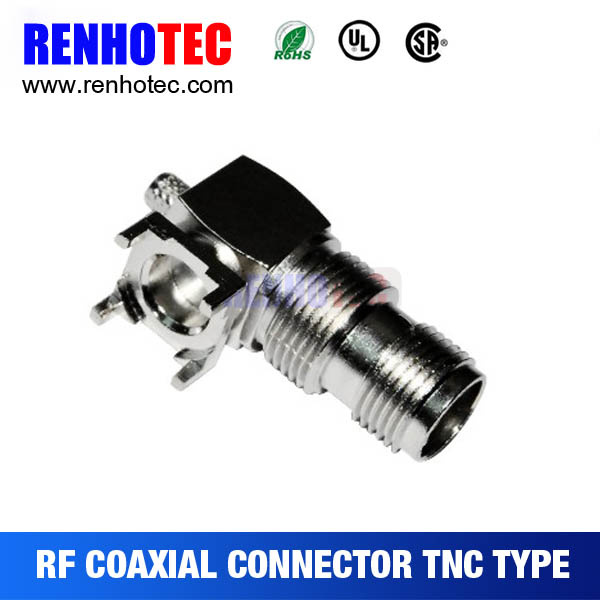

Right Angle TNC Jack Connector for PCB Board
Identical to the BNC design, but have a threaded connector. Operates better than the BNC connector at microwave frequencies. TNC are miniature, threaded weatherproof units with a constant 50Ω impedance and operate from DC to 11 GHz. Widely used in WiFi equipment, radar, and military/aerospace systems.
| Major Technical Characteristics |
| Temperature Range | -55 degree to +155 dregree |
| Vibration | 100m/S2 (10 to 2000 Hz), 15G |
| Impendance | 50ohm |
| Frenquency Range | DC-11GHZ |
| Working Voltage | 500V r.m.s at sea level |
| Workstandinging Voltage | 1500V r.m.s at sea level |
| Center Contact Resistance | ≤10Mohm |
| Outer Contact Resistance | ≤2.5Mohm |
| Insulation Resistance | ≥5000Mohm |
| Center conductor Retention Force | ≤0.57N |
| Insertion Loss | ≤0.20dB/3GHz |
| VoltaggeStanding Wave Ratio : |
| Straight | ≤1.22/3GHz |
| Right Angle | ≤1.30/3GHz |
| Dutability (Mating) | ≤500(cycles) |
| Materials |
| Body | Brass..........................Nickel |
| Contact Plating | Brass.........................Gold |
| Insulator | Teflon |
| Nut | Brass.........................Nickel |
| Washer | Brass.............................Nickel |
| Suitable cable |
| RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US) |
Package:
Normal packing: 100 pcs per tray or polybag ,800pcs per carton.
Private packing and label service are available as per your requirement.
Shipment:
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.
Payment:
We support payment of T/T, Paypal, West Union, etc.
FAQ:
1. When can I get the quotation?
All of inquiries will be replied within 12 hours. If it is urgent, we can be reached at skype, 24 hours online.
2. What's your MOQ?
Normally our MOQ is 500pcs. Small order is also welcome.
3. What about the lead time for production?
3-5 days for sample, 10-15 days for bulk order.
4. How do you guarantee the quality?
All of the raw materials we used are purchased from qualified suppliers with certification approved, we promised our connectors are strictly produced accoring to UL, ROHS standards. QC will inspect goods before shipping to ensure the quality.
5. What's the warranty?
One year, 12 months.
6. How to proceed an order with you?
Please contact us by email or skype, then we will confirm you product details. If all confirmed, Proforma invoice will be available for you.
If any questions, please do not hesitate to contact with us at any time.
Welcome to contact us! We are the factory Manufactures of electronic components in China, Your best connector parner!
