Right Angle White Plastic Coaxial Connector BNC

Name: Right Angle White Plastic Coaxial Connector BNC
Brand: all-electronics-online.com
SKU: 746961775
Availability: InStock
Rating: 4.7 (100 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DOSIN -801-0038
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Business Type:	Manufacturer
Connector Type:	BNC Connectors
Orientation:	90 Degree
Impedance:	50/75ohm
Body Material:	Brass/Zinc Alloy
Plating:	Nickel
Warranty:	12 Months
Service:	OEM/ODM
Type:	Generally Coaxial Connector
Coupling Mechanism:	Double Bayonet Plug-in
Brand:	Renhotec

Product Description

BNC connectors are for low power, quick connector/disconnector application using a bayonet type coupling mechanism. There are 50ohm and 75 ohm about the Characteristic impedance. They are widely use in electronic instrument, communication equipment, internet system, microwave testing.

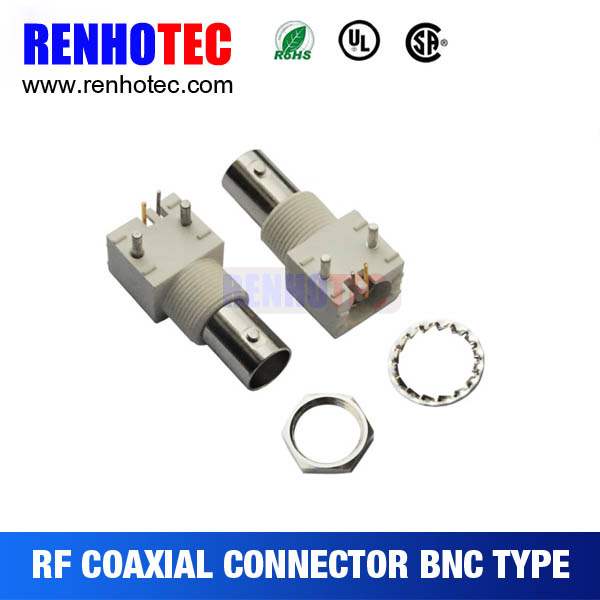

Right Angle DIP Female BNC Connector PCB Mount

TECHNICAL CHARACTERISTICS

Temp. Range	-65~+165° C (PE Cable -40~+85° C)
Vibration	MIL-STD-202, Method 213
Impedance	50Ω , 75Ω
Frequency Range	DC~4GHz
Working Voltage	500V max
Withstand Voltage	1500V rms
Center Contact resistance	≤ 1.5 mΩ
Outer Contact resistance	≤ 1 mΩ
Insulation resistance	≥ 5000 MΩ
VSWR Straight	≤ 1.22
Right angle	≤ 1.30
Durability(mating)	≥ 500(cycles)

Material and plating:

Shell	Brass nickel plated
Contact pin	Brass gold or silver plated
Socket	Beryllium gold or silver plated
Elastic contact	Beryllium gold or silver plated
Insulator	PTFE
Crimping suite	Copper alloy nickel plated
O-ring sealing	6146 silastic

APPLICABLE STANDARD
MIL-C-39012;
CECC 22120;

1.100% tested before delivery.
2. Guarantee the prompt delivery. The stocked goods will be delivered within 3 days and the customized products will be delivered as arranged date.
3. We are glad to makes samples according to our customers'drawing, sp ecifications and samples.
4. OEM is available.
5. Free to contact us, we can offer you the best service, top-quality goods, competitive price and timely delivery.
6. Our products are extensively used in electronic and other industries.
7. ISO9001: 2008 certified.
