Rigid Fiber Optic Probe Used in Temperature Measurement

Name: Rigid Fiber Optic Probe Used in Temperature Measurement
Brand: all-electronics-online.com
SKU: 721126652
Availability: InStock
Rating: 4.8 (134 reviews)

Price:	US $ 500-1000/Piece
Min Order:	30/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Detection Range:	-200 ----- +300 Centigrade
Measurement Accuracy:	0.05 Centigrade
Type:	Optical Fiber Temperature Probe

Product Description

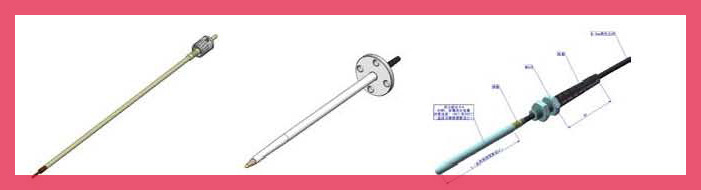

Rigid fiber optic probe

Its temperature detection range is from 200 ºC to -450 ºC and the highest measurement accuracy can be up to 0.05ºC. From the appearance of speaking, rigid probe is similar to traditional in-line temperature probe; the rigid protection tube on the probe seals the optical waveguide and the temperature sensitive area, this form is consistent with the traditional hanging temperature probe use habits. Usually, rigid fiber probes need to use fiber optic cables to connect to thermostats or temperature transmitters to measure temperature. Meanwhile, rigid fiber optic probes can directly replace traditional industrial thermocouples and resistive temperature sensors.

Technical parameters of fiber optic probe:

Measuring range	-200ºC to +450ºC (optional)
Measurement accuracy	0.1 ºC or 1% reading value
Probe type	Flexible, rigid or special custom
Fiber optic materials	Plastic fiber (POF) <85ºC Glass fiber (GOF) <300ºC Quartz fiber(SOF)<450ºC
Sheath material	PE,FEP,PFA, PTFE, PEEK, PA, PVC
Fiber optic connectors	ST,SMA, HP (user optional)
Length	0.1 m - -40 m (flexible) ; 0.1 m - -0.5 m (rigid)
Probe diameter	0.3 m - -10 m
Temperature calibration selection	To choose 1 to 5 point according to customer requirement
