| Prod Model: |
RF 008 |
| Board Thickness: |
1.6mm Rigid and 0.1mm Flex |
| Copper Thickness: |
1oz |
| Solder Mask: |
Green and Yellow |
| Silk Screen: |
White |
| Material: |
Fr4 + Polymide |
| PCB Type: |
Rigid-Flexible PCB |
| Test: |
100% Test |
| Small Order: |
Accepted |
| Lead Time: |
5-10 Days |
| Service: |
High Quality |
| Dielectric: |
FR-4 |
Product Description

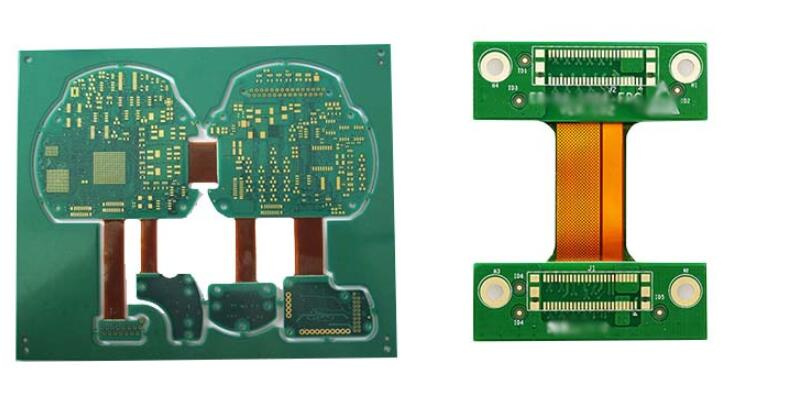

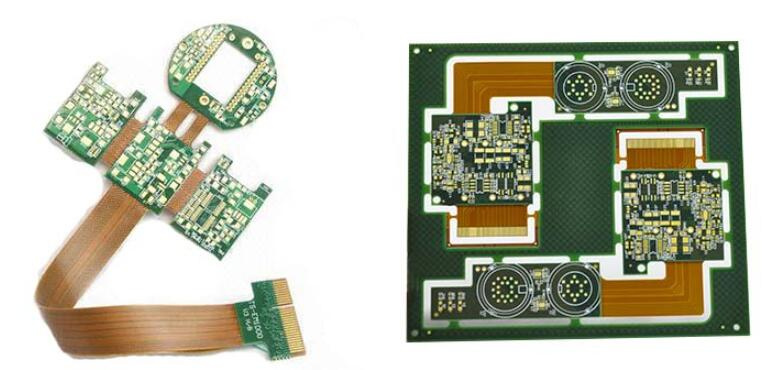

Rigid-Flex PCB with 2 Layers and Quick Turn PCBFlexible Circuits Specification | Product Name | Flexible Circuits |
| Type | 1-8 Layer |
| Quality Grade | Standard IPC 2 |
| Material | DuPont PI, Domestic Shengyi PI |
Board Size | Min 6mm*6mm, Max 400mm*500mm |
| Board Thickness | 0.6mm - 2.0mm |
| Copper Thickness | 0.5oz - 2.0oz |
| Min Tracing / Spacing | 3mil |
| Solder Mask Sides | As per the file |
| Solder Mask Color | Green, White, Blue, Black, Red, Yellow |
| Solder Stop Coating | PI and PET Film |
| Silkscreen Sides | As per the file |
| Silkscreen Color | White, Black, Yellow |
| Surface Finishing | HASL, HASL Leadfree, Immersion Tin, Gold Finger, OSP |
| Min Annular Ring | 4mil |
| Min Hole Diameter | 8mil |
| Tolerance Dimension | ±0.05mm |
| Other Tech | Peelable Solder Mask, Stiffener |

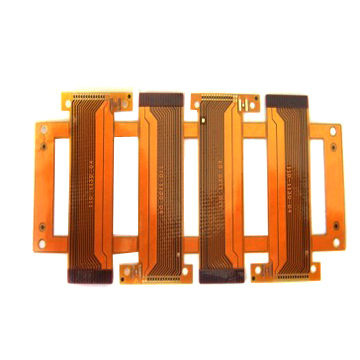

Double FPC Structure:
When the board circuits are very complex and single board can not reach functions needs,
we need choose double fpc or multilayers fpc .
The difference bewtween single layer fpc and mutilayer fpc are add via design series so that connect all layers clad copper.
Usually the first step to make vias.
Drilling vias on the base material can clad copper are first step.
And the next step is almost same to single layer fpc.

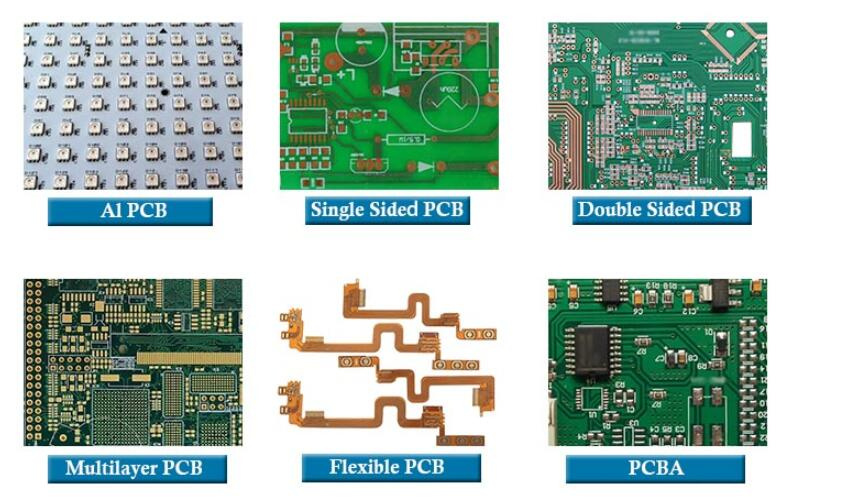

Our Main Products
Our serviceNow we have been a factory which can provide one-stop service, from the PCB production,
the components purchasing to the components assemble.

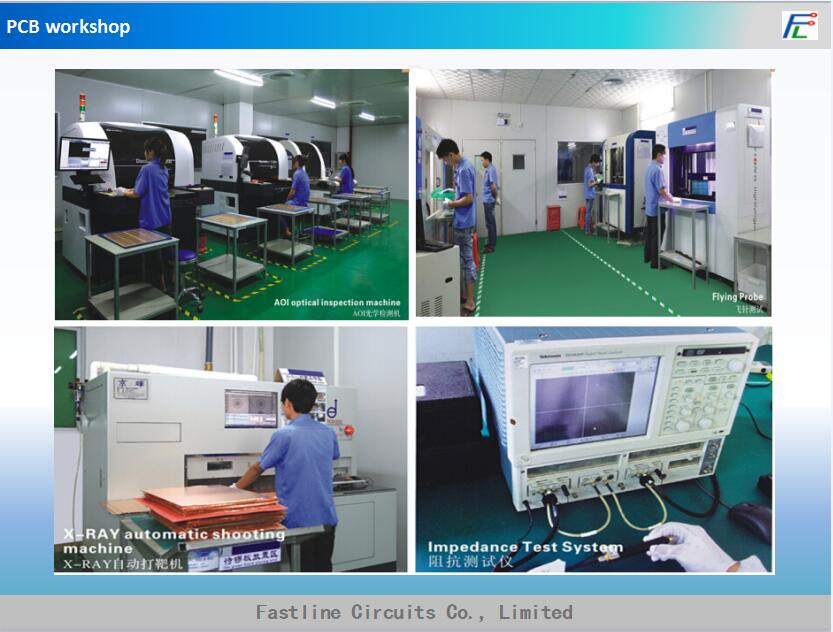

PCB workshop
Packing &shipping
Our company is not only trying to give customers a good product,
but also pay attention to offering a complete and safe package.
And here we prepare some personalized services for all the orders.Common packaging:PCB: Sealed bag, Anti-static bags, Suitable carton.
PCBA: Antistatic foam bags, Anti-static bags, Suitable carton.Regular Cartons Specification.No. Dimension (L*W*H)
Small Size : 33cm*28.5cm*18.5cm
Medium Size: 44.5cm*30cm*15cm
Big Size: 51.5cm*32.5cm*17.5cmCustomized Cartons:Carton outside according to the requirements of customers printed the name of the customer address, mark,
the customer needs to specify the destination and other information. FAQ - What does JY need for a customized PCB order?
When you place a PCB order, you need to provide Gerber or pcb file.
If you do not have the file in the correct format, you can send all the details related to the products.
- What does Fastline need for a customized PCBA order?
When you place a PCBA order, you need to provide Gerber or pcb file and the BOM list.
- What is your quotation policy?
For the PCB order in large quantity, we will send you the quotation based on the MOQ of the products concerned.
- What does Fastline need for other services?
For PCB clone service, the customer needs to send us the printed circuit board concerned, and also the sharp photos of its front side and the back side.
- How about the service Fastline offered to the customers?
If you have any questions about our products or company,
do not hesitate to send us your inquiry to our customer service representatives.
Your satisfaction is our pursuits.
