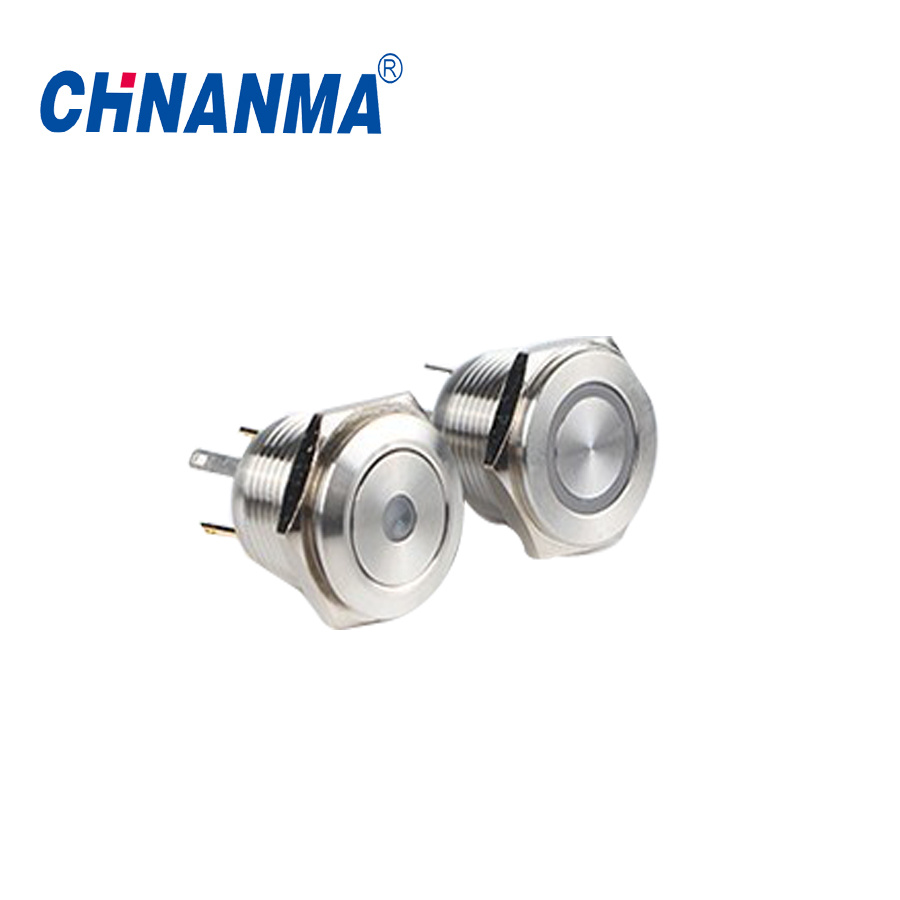

Ring Illuminated Anti-Vandal Push Button Switch, LED Push Button Switch

Name: Ring Illuminated Anti-Vandal Push Button Switch, LED Push Button Switch
Brand: all-electronics-online.com
SKU: 728676822
Availability: InStock
Rating: 4.9 (86 reviews)

Price:	US $ 1.88-1.99/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	A16 series
Type:	Normal Open
Usage:	Check Button
Kind:	Double-pole on-off Switch
Brand:	Chnanma

Product Description

Model Number		GQ16 series
Mounting hole size		16mm Diameter
Switch Rating		2A/36VDC 0.5A/220V
Contact Configuration		1NO
Operation Type		Momentary
IP Degree		IP65,IK08 (Customizable IP67)
Switching		X(double-break slow-motion contact)
Panel Thickness		1~6mm
Mechanical Life		1,000,000 cycles
Electrical Life		200,000 cycles(36VDC) 50,000 cycles(220V)
Operation Pressure		About 4N
Operation Travel		About 2mm
Connection type		Binding post,Pin terminal,Long pin terminal(Customed)
Head shape		Domed,Flat Round,High Round,Flat+Flat,Flat+High Flat(Customed)
LED Type		Single-point,Annulus(Customed)
LED Color		Blue,Red,Green,Yellow,Orange,White,Black(Customed)
LED Voltage		AC/DC 6V,12V,24V,220V (Other voltage grade can be customized)
Materiall	Body	Stainless Steel,Nickel-plated Brass,Aluminium alloy(black),engineering plastics(Customed)
	Button	Stainless Steel,Aluminium alloy(black),Brass(Customed)
	Base	PBT,PA(Customed)

Specification
Operation Temperation	-25ºC~+55ºC(no freezing)keep the air flowing around illuminated push button
Operation Humidity	45~85%RH(no condensation)
Contact Resistance	≤50mΩ
Insulation Resistance	≥1000MΩ
Dielectric Strength	2000VA C50Hz.5 seconds
Vibration Resistance	50HZ.Amplitude 1.2mm
Shock Resistance	>10g
Solder Heat Resistance	320ºC(or 30W soldering iron)no more than 2 seconds)

Lamp Rating
Lamp Type	LED lamp(AC/DC)
Led Color	R G Y O B W
Life	40000hours(Reference)
Rated Voltage	AD/DC 6V.AC/DC 12V.AD/DC 24V.AC/DC 36V.
Rated Current	About 15mA
Dropping Way	External resistance
Lamp Circuit Diagram	Using AC/DC LED lamp,the terminals have no differece of anode and cathode.
Note:DC LED and other voltage can be made to order

Why choose our switches

1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.

Customer's questions

Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.

Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.

Q3:Can you give me samples to test?
Answer:Yes

Q4:What's you MOQ?
Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order.

More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!

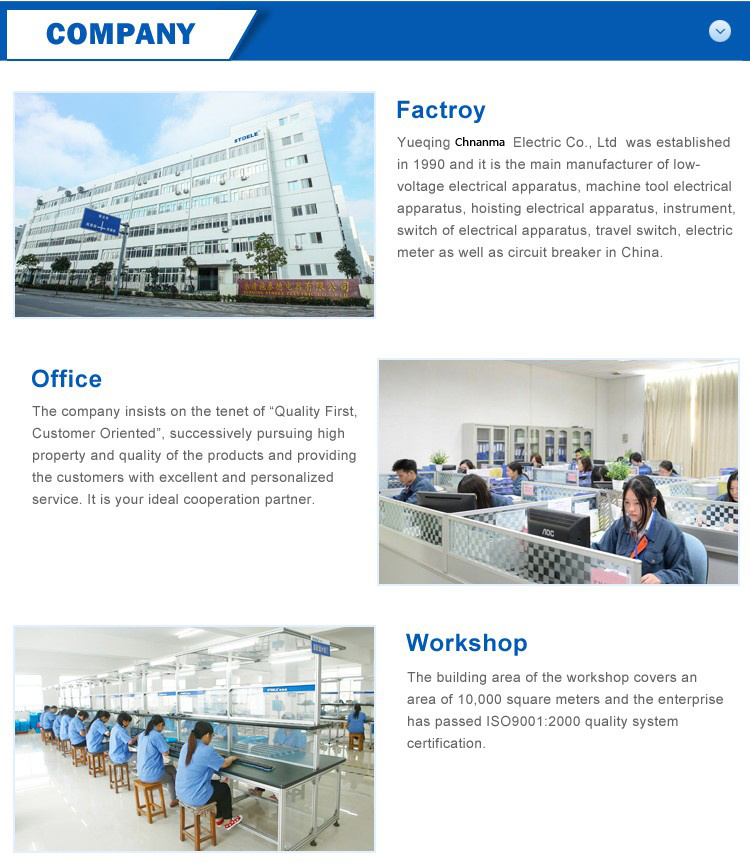

Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
