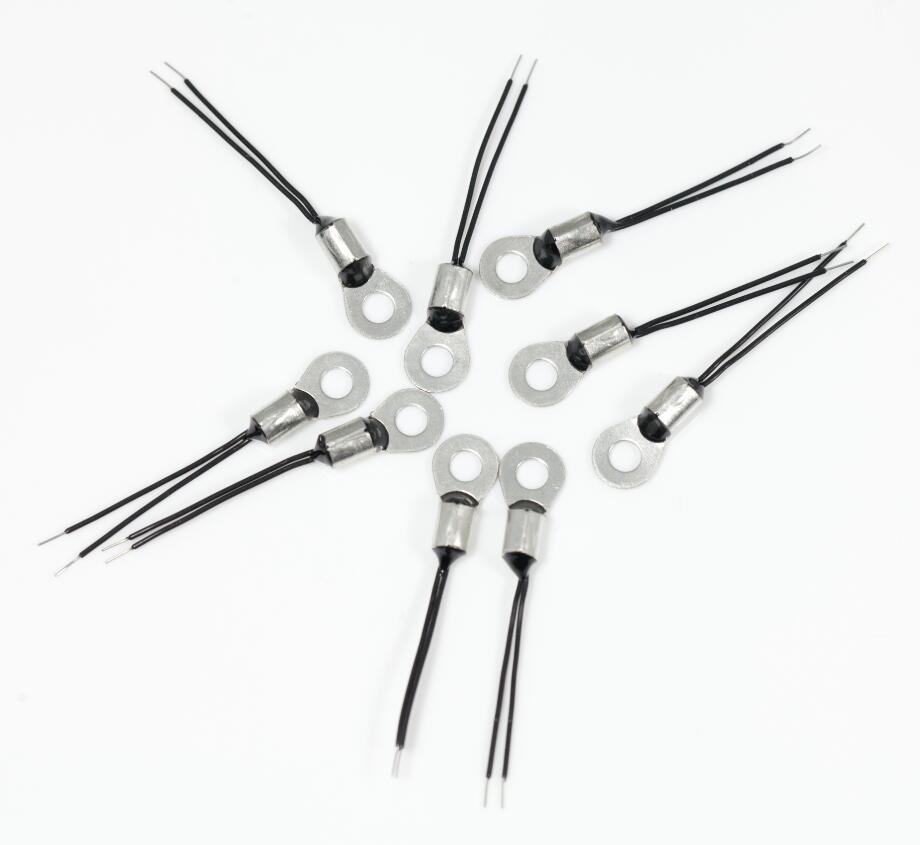

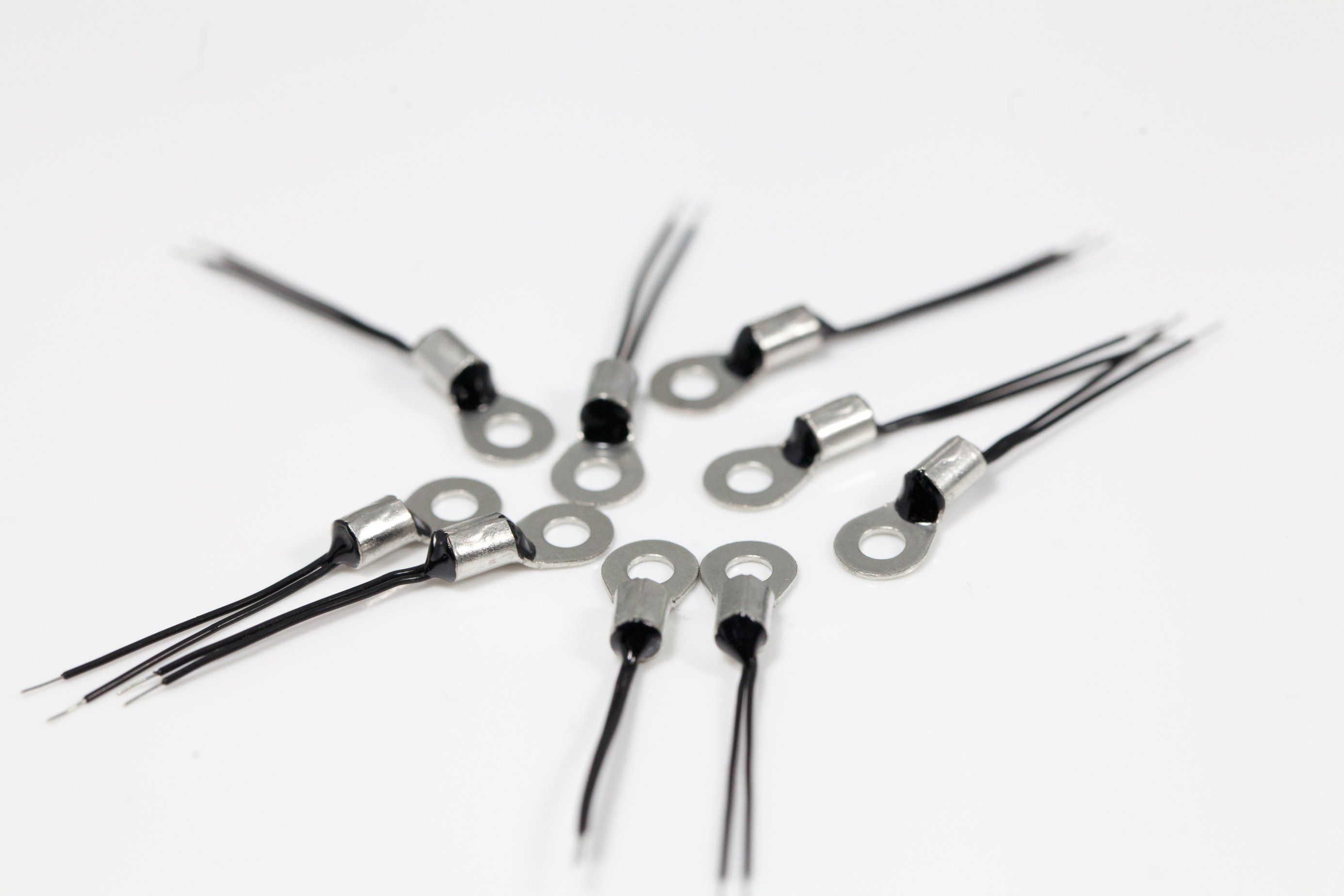

Ring Lug Terminal Ntc Temperature Sensor Probe for BMS

Name: Ring Lug Terminal Ntc Temperature Sensor Probe for BMS
Brand: all-electronics-online.com
SKU: 811111355
Availability: InStock
Rating: 4.6 (38 reviews)

Price:	US $ 0.3-1/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MFP-2 Series
Wire:	UL4411 22AWG Black 87mm
Stripping:	10mm

Product Description

Specifications:
NTC Temperature sensor is connected by a high-precision, high reliability NTC thermistor and PVC wire, Teflon wire or other wire . With the shape of insulation, thermal, waterproof material packaged as required.Easy to install and control temperature.

NTC temperature sensors Parameter:
1. Products name: temperature sensor
2. R25:            5k/ 10 k / 50 k / 100 k / 150 k / 200 k300K 500K 1000K etc.
3. Resistance accuracy: + / -1%,2% / 3% / 5%
4. Woking temperature: -30°C ~ + 150°C
5. B25/50:               3470,3950,3380,3100,3950,4000,4250,4500,4500
6. Test accuracy :         + / -1% / 2%  ±3  ±5
7. Terminal:            customized

Product Features:

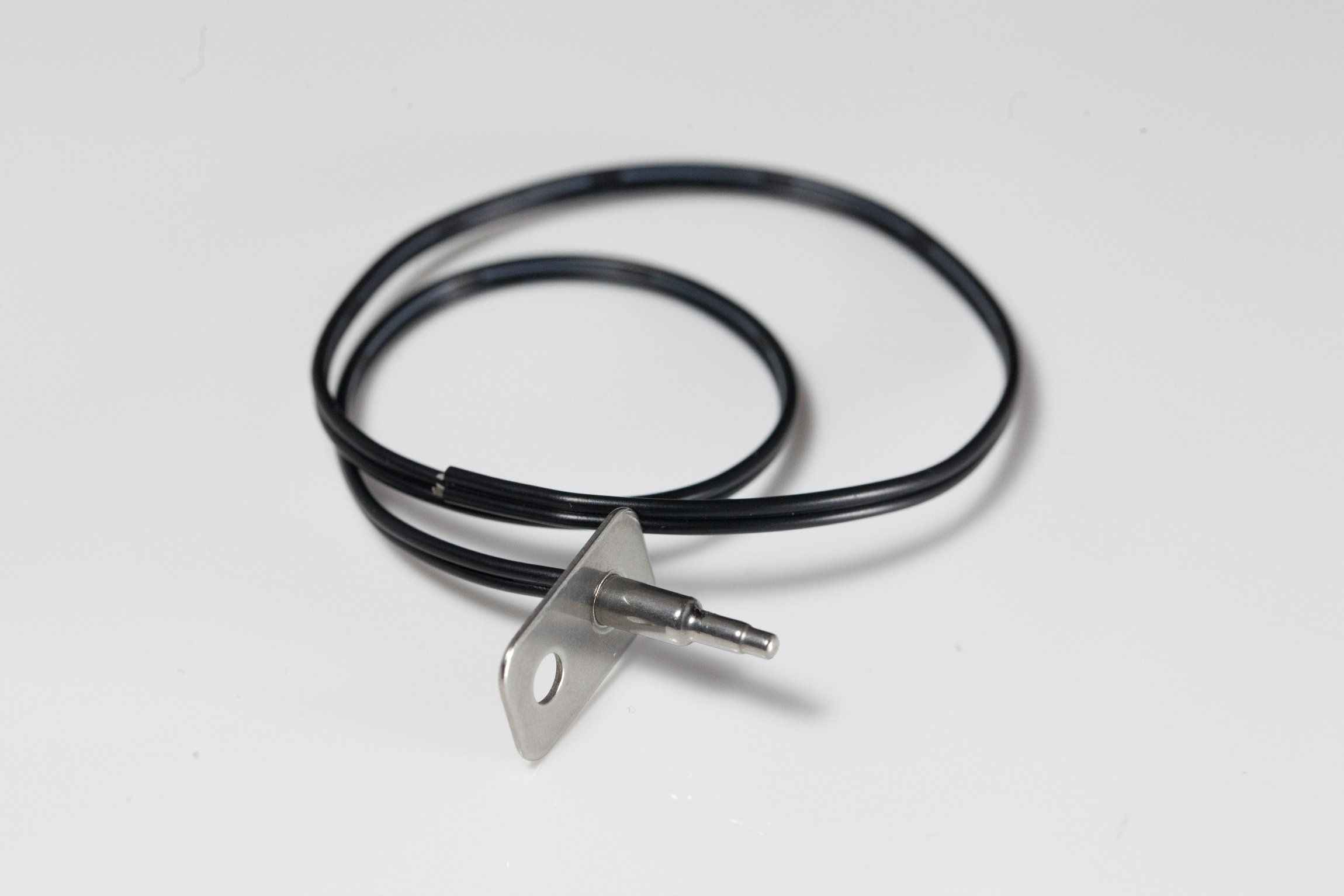

1, Screw hold mounting type
2, wide operating temperature range, good stability and reliability.
3, easy to install and operate the seal can be done according to the environment
4, low-temperature correction, accurate measurement
5, point matching or interchangeable tolerance
6, lead wire specified by the customer may terminate dock or connector

Applications:
1.Air conditioner (heat and cool) and related equipment.

2.Temperature measurement and controls thermal protection circuits in various family appliances, such as air conditioner, refrigerator, electromagnetic oven, bread toaster, bake oven, electric roaster, microwave oven, electric fan, soybean milk maker, electric water heater, rice cooker, sterilizing cabinet, water dispenser and lighting appliances.

3.Temperature measurement and control circuit in the equipment for industrial and agricultural, medical, meteorological purpose, environmental protection and food processing
Automatic office appliances.
