Ring Main Unit Air Insulated Switchgear Un-Panel

Name: Ring Main Unit Air Insulated Switchgear Un-Panel
Brand: all-electronics-online.com
SKU: 839866085
Availability: InStock
Rating: 4.9 (60 reviews)

Price:	US $ 1000-30000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	ring
Type:	Distribution Metering Box
Structure:	Fixed Board

Product Description

Description

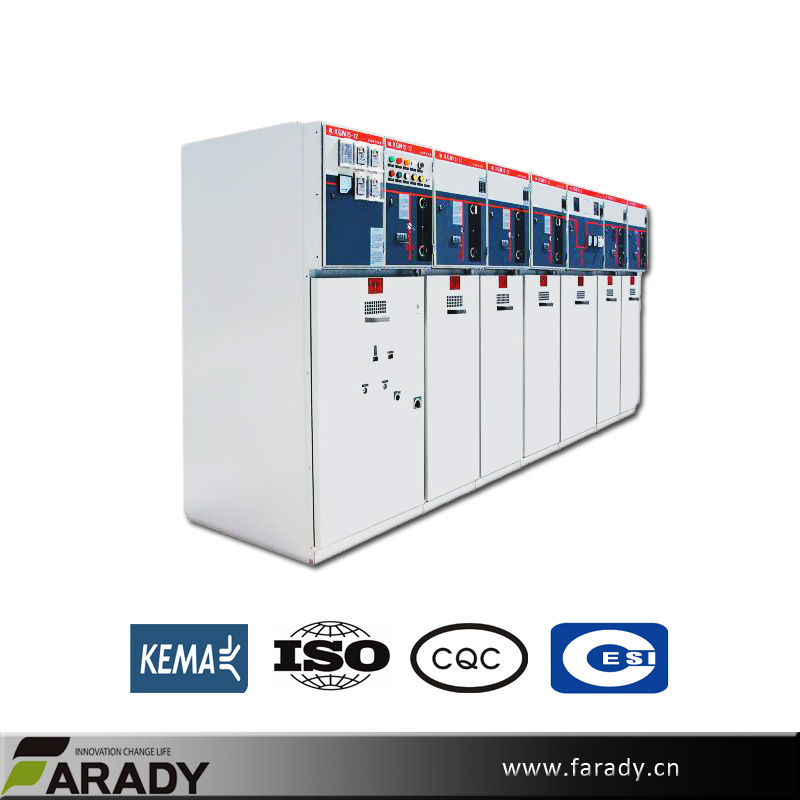

The Unisun enjoy more than 16 year experience manufacture SF6 Ring main Unit in china, we import first APG line from Germany to localized air pressure guage production craft, our APG manufacturing including SF6 switch disconnector, embedded pole and etc epoxy resin insulation parts. iUN-panel units are used for the MV section in MV/LV transformer substations in public distribution systems and MV consumer or distribution substations up to 24 kV.

Feature
The iUN-panel range is made up of modular units containing metal-enclosed SF6 switchgear, using Sulphur hexafluoride (SF6) or vacuum:

switch-disconnector;
iVD4S vacuum circuit breaker;
Vacuum contactor;
disconnector.

Unit definitions

Below is the list of iUN-panel range units used in MV/LV transformer substations and industrial distribution substations:

IM, IMC, IMB switch;
PM fused switch;
QM, QMC, QMB fuse-switch combination;
CRM contactor and contactor with fuses;
DM1-A, DM1-D, DM1-S single-isolationSF6 type circuit breaker;
DMV-A, DMV-D, DMV-S single-isolation vacuum type circuit breaker;
DM1-W, DM1-Z withdraw able single-isolationSF6 type circuit breaker;
DM2 double-isolation SF6 type circuit breaker;
CM, CM2 voltage transformers;
GBC-A, GBC-B current and/or voltage measurements;

Standards
iUN-panel units meet all the following recommendations, standards and specifications:

IEC:60694:
IEC62271-200
IEC60265
IEC60420
IEC60255
IEC62271-100
IEC62271-102

Designation
iUN-panel units are identified by a code including:

an indication of the function, i.e. the electrical diagram code: IM, QM, DM1, CM, DM2, etc.
the rated current: 400 - 630 - 1250 A;
the rated voltage: 7.2 - 12 - 17.5 - 24 kV;
the maximum short-time withstand current values: 12.5 - 16 - 20 - 25 kA.1 s;
the color is of RAL 9002 type (frosted satin white).

Example for a unit designated: IM 400 - 24 - 12.5

IM indicates an "incoming" or "outgoing" unit;
400 indicates the rated current is 400 A;
24 indicates the rated voltage is 24 kV;
12.5 indicates the short-time withstand current is 12.5 kA.1 s.

The hereunder values are for working temperatures from -5°C up to +40°C and for a setting up at an altitude below 1000 m.
Internal arc withstand:

standard:12.5 kA. 0.7 s;
enhanced:16 kA. 1 s.

Protection index:

units: IP2XC (IP3X consult us);
between compartments: IP2x.

Electro-magnetic compatibility:

relays: 4 kV withstand capacity, as per recommendation IEC 60801.4;
compartments:
electrical field:

Temperatures:
The cubicles must be stored in a dry area freefrom dust and with limited temperature variations.

for stocking: from -40°C to +70°C,
for working: from -5°C to +40°C,
other temperatures, consult us.

Main characteristics

Rated voltage (kV)		17.5
Insulation level
50 Hz, 1 mn	Insulation	38
(kV rms)	Isolation	45
1.2/50μs	Insulation	95
(kV peak)	Isolation	110
Breaking capacity
Transformer off load (A)		16
Cables off load (A)		31.5
Short-time withstand current	25	630 - 1250 A
(kA.1 s)	20	630 - 1250 A
	16	630 - 1250 A
	12.5	400 - 630 - 1250 A

The making capacity is equal to 2.5 times the short-time withstand current.

Maximum breaking capacity

Rated voltage (kV)	17.5
Units
IM, IMC, IMB,	630 A - 800 A*
NSM-cables, NSM-busbars	630 A - 800 A*
PM, QM, QMC, QMB	20 kA
CRM
CRM with fuses
SF6 circuit breaker range:
DM1-A, DM1-D, DM1-W, DM1-Z, DM1-S, DM2	20 kA
Vacuum circuit breaker range:
DMV-A, DMV-D, DMV-S	20 kA

Founded in 1999, with a registered capital of 10 million USD, Zhejiang Farady Powertec Co enjoys about 20 years' experience in medium voltage distribution electrical equipment manufacture.

We are National Hi-tech enterprise, National Spark plan Program, State Hi-tech enterprise, State Innovation R&D center, Patent demonstrate company.

Farady is located in Ecomonic develop Zone of Yueqing, Zhejiang, China, main products include: Auto recloser/gas insulated load break switch/capacitor switch/ring main unit/vacuum circuit breaker/SF6 switch disconnector.

All the products of ours have passed the national and international laboratory type test, Farady Electric was qualified supplier of China State Grid and China southern Grid.

With ISO9001/14001/18001, we are strike for create value for our partner and customer.

There is more than 20 distributors and agents worldwide already trust us and distribute Farady product there, we are not only export product, but also provide whole technology solution to help partner to establish local factory in our business line.

Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Farady Company is dedicated to become the top name in the international business from China, and contributes its share to the transformation from the Made in China into the Invented in China.

Our Advantages:

(1). Professional team: Farady before-sales engineering team give you full support as whole solution

(2). Adquate sale reference: Export to 55 countrys with good sale reference and international bid experiencec

(3). Paper work: Full ISO certificate and product type test convince end user

(4) Quality Assurances

We have a strictly quality control process from the raw material to finished products. Advanced testing lab to make sure products quality and improve our creative ability. Quality and Safety is the soul of our products.

(5) Excellent Services

Many years of manufacturing experience and rich export business help us to establish a well-trained sales service team for all customers.

(6) Fast Deliveries

Strong manufacture capacity to satisfy urgent leading time. It is around 15-25 working days after we receive the payment. It varies according to the different products and quantity.

(7) OEM ODM and MOQ

Strong R&D team for quick new products' development, we welcome OEM, ODM and customize request order. Whether selecting a current product from our catalog or seeking engineering assistance for your application. You can tell us about your sourcing requirements
