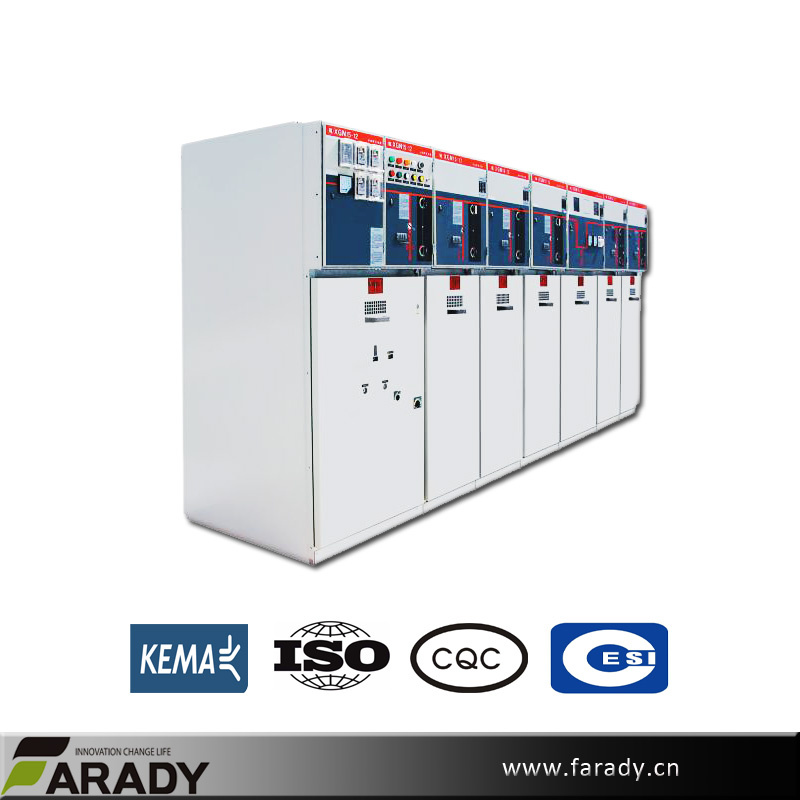

Ring Main Unit Switchgear Panel,Sf6 Gas Insulated Hxgn-24
Product Description
iUN-SFRMU SF6 insulated Ring Main Unit
Gas Insulated Ring Main Unit
iUN-SFRMU is a SF6 insulated ring main unit for the secondary distribution network. iUN-SFRMU can be supplied in 10 different configurations suitable for most switching applications in 12/24/36 kV distribution networks.
As an option, iUN-SFRMU can be delivered as extendable ring main unit.
Together, iUN-SFRMU represent a complete solution for 12/24/36 kV secondary distribution networks.| C - Cable switch module | F - Cable switch module | V - Cable switch module |
| D - Direct cable connection module | De - Direct cable connection module with earthing switch | M - Metering module |
Operating ConditionsNo. | Description | Requirement |
1 | Altitude(installed indoors) | ≤1000m |
2 | Ambient air temperature | -5ºC ~ +40ºC |
3 | Monthly average relative humidity | ≤90%(+25ºC) |
4 | Anti-seismic intensity | ≤8° |
5 | Maximum daily temperature difference | < 25ºC |
Technical ParameterNo. | Items | Unit | Data |
1 | Rated voltage | kV | 12 |
2 | Rated frequency | Hz | 50 |
3 | Main bus-bar rated current | A | 630 |
4 | Major loop and ground loop rated short-time withstand current/ time | kA/s | 20/3 |
5 | Major loop and ground loop rated peak withstand current(peak value) | kA | 50 |
6 | Major loop and ground loop rated short-time making current | kA | 50 |
7 | Load switch rated current breaking times | time | 100 |
8 | Rated transfer current | A | 1700 |
9 | Fuse maximum rated current | A | 125 |
10 | Fuse breaking current | kA | 31.5-50 |
11 | Mechanical endurance | time | 2000 |
12 | 1min power frequency withstand voltage(effective value) | kV | 42/48 |
13 | Lighting impulse withstand voltage inter-phase, to ground, isolation break(peak value) | kV | 75/85 |
14 | Secondary loop 1min power frequency withstand voltage | kV | 2 |
15 | Protection degree | | IP2X |
16 | External dimension(width * depth * height mm) | mm | 500(375 750) × 940×1900 800×1200×2200 |
SF6 insulated Ring Main Unit Outer assembly
| Upper front cover
1. Manometer
2. Nameplate module
3. Short circuit indicator
4. Capacitive voltage indication
5. Load break / earthing switch position indicator
6. Push buttons close/open operation
7. Charged spring indicator
8. Self-powered protection relay
9. Vacuum circuit-breaker position
10. Operation shaft
11. Padlock device
Lower front cover
12. Nameplate switchgear
13. Fuse blown indicator
14. Disconnector / earthing switch position indicator
15. Capacitive voltage indication
Cable compartment cover
16. Cable compartment cover standard
17. Cable compartment cover with inspection window
18. Support bar (removable)
Side cover
19. Lifting lug
20. Operating handle (standard on right hand side) |
