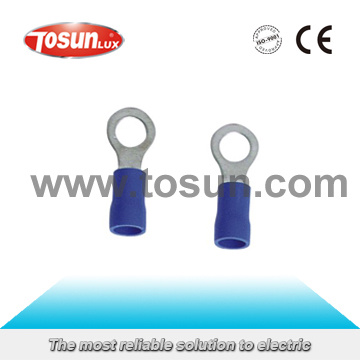

Ring Shaped Insulated Terminal

Name: Ring Shaped Insulated Terminal
Brand: all-electronics-online.com
SKU: 766645105
Availability: InStock
Rating: 5 (79 reviews)

Price:	US $ 0.5-11/Bag
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Bag
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RV series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of ANSI Bolts:	#4-#10
Diameter Of Bolt Mouth:	3.2-13mm
Length:	17.8-38.1mm
Lead Section:	0.5-6mm²
Max Current:	9-48A
Color:	Red, Blue, Black, Yellow
Package:	100PCS Per Bag
Type:	Hook Terminals
Application:	Conduct Electricity
Brand:	Tosunlux

Product Description

Specification of Ring Shaped Insulated Terminal

Cable size:0.5~1.5mm²(A.W.G.22-16) Max current: Imax=9A
No.	Item No.	Dimension							Color
		Number of ANSI bolts	Screw dia.	B (mm)	L (mm)	F (mm)	H	D (mm)
		Number of ANSI bolts	D2(mm)	B (mm)	L (mm)	F (mm)	(mm)	D (mm)
1	RV1.25-3	#4	3.2	5.7	17.8	4.95	10	4.3	Red
2	RVS1.25-3.5S	#6	3.7	5.7	17.8	4.95
3	RVS1.25-3.5M	#6	3.7	6.6	20.1	6.3
4	RVS1.25-3.5L	#6	3.7	8	21.5	7
5	RVS1.25-4S	#8	4.3	6.6	20.1	6.3
6	RVL1.25-4L	#8	4.3	8	21.5	7
7	RV1.25-5	#10	5.3	8	21.5	7
8	RV1.25-6	1/4	6.5	11.6	27.5	11.1
9	RV1.25-8	5/16	8.4	11.6	27.5	11.1
10	RV1.25-10	3/8	10.5	13.6	31.6	13.9

Cable size:1.5~2.5mm²(A.W.G.16-14) Max current: Imax=27A
No.	Item No.	Dimension							Color
		Number of ANSI bolts	Screw dia.	B(mm)	L(mm)	F(mm)	H	D (mm)
		Number of ANSI bolts	D2(mm)	B(mm)	L(mm)	F(mm)	(mm)	D (mm)
11	RV2-3	#4	3.2	6.6	17.8	4.3	10	4.9	blue
12	RVS2-3.5S	#6	3.7	6.6	17.8	4.3
13	RVS2-3.5M	#6	3.7	6.6	21	7
14	RVS2-3.5L	#6	3.7	8.5	22.5	7.75
15	RVS2-4S	#8	4.3	6.6	21	7
16	RVL2-4L	#8	4.3	8.5	22.5	7.75
17	RVS2-5S	#10	5.3	8.5	22.5	7.75
18	RVL2-5L	#10	5.3	9.5	22.5	7.25
19	RV2-6	1/4	6.5	12	27.6	11
20	RV2-8	5/16	8.4	12	27.6	11
21	RV2-10	3/8	10.5	13.6	30.2	13.9

Cable size:2.5~4mm²(A.W.G.14-12) Max current: Imax=37A
No.	Item No.	Dimension							Color
		Number of ANSI bolts	Screw dia.	B(mm)	L(mm)	F(mm)	H	D (mm)
		Number of ANSI bolts	D2(mm)	B(mm)	L(mm)	F(mm)	(mm)	D (mm)
21	RV3.5-4	#8	4.3	8	24.5	7.7	12.5	6.2	black
22	RVS3.5-5S	#10	5.3	8	24.6	7.7
23	RVL3.5-5L	#10	5.3	12	27.9	7.7
24	RV3.5-6	1/4	6.5	12	27.9	7.7

Cable size:4~6mm²(A.W.G.12-10) Max current: Imax=48A
No.	Item No.	Dimension							Color
		Number of ANSI bolts	Screw dia.	B(mm)	L(mm)	F(mm)	H	D (mm)
		Number of ANSI bolts	D2(mm)	B(mm)	L(mm)	F(mm)	(mm)	D (mm)
25	RV5.5-3.5	#6	3.7	7.2	21.4	5.9	12.5	6.7	yellow
26	RVS5.5-4S	#8	4.3	7.2	21.5	5.9
27	RVL5.5-4L	#8	4.3	9.5	25.5	8.3
28	RV5.5-5	#10	5.3	9.5	25.5	8.3
29	RVS5.5-6	1/4	6.5	12	31.5	13
30	SV5.5-8	5/16	8.4	15	33.7	13.7
31	SV5.5-10	3/8	10.5	15	33.7	13.7
32	SV5.5-12	1/2	13	19.2	38.1	16
