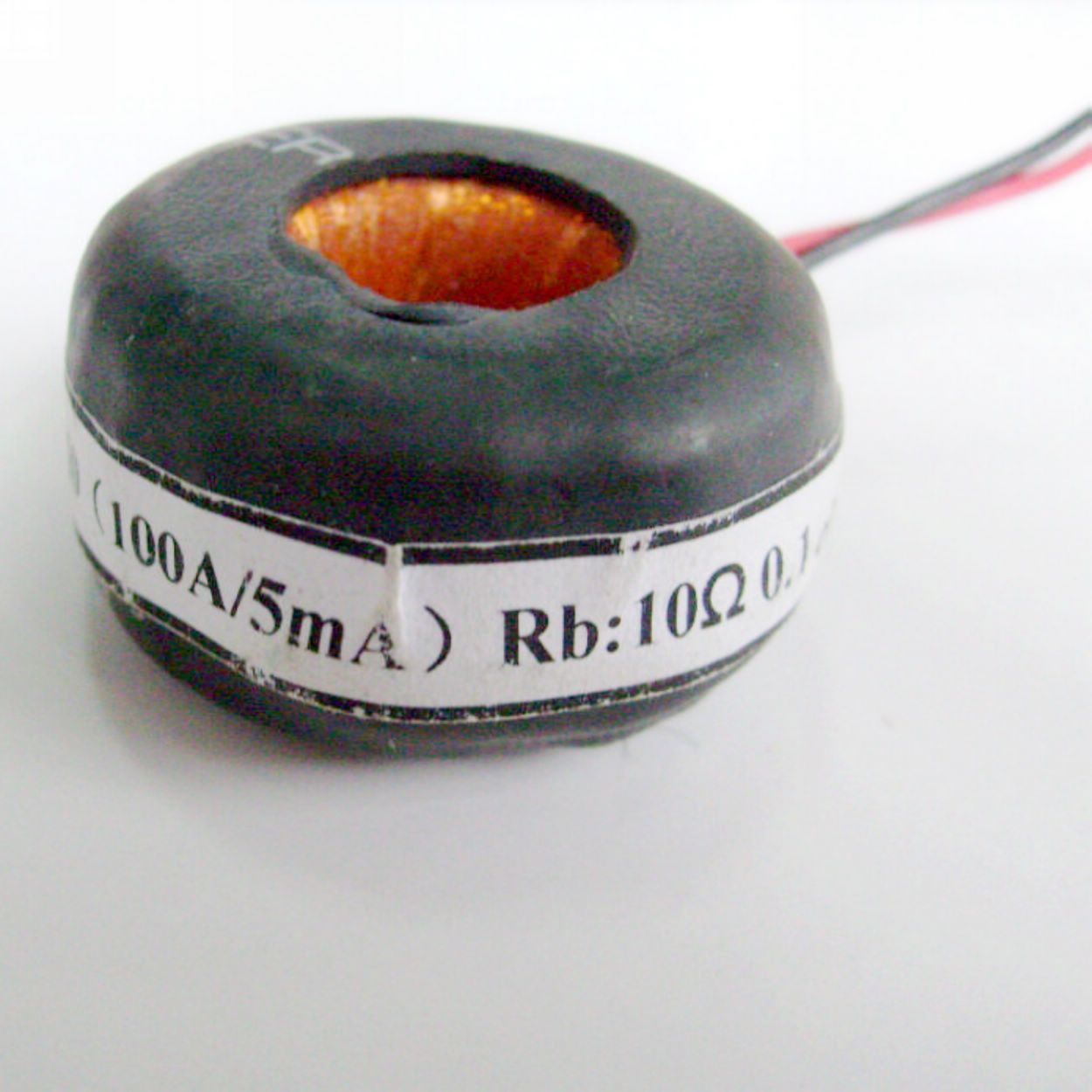

Ring Type CT With DC Immunity Series

Name: Ring Type CT With DC Immunity Series
Brand: all-electronics-online.com
SKU: 681683595
Availability: InStock
Rating: 4.3 (41 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	WJct
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Electric Meter
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer
Certification:	Ce
Brand:	Weijia

Product Description

Appliance to all kinds of high precise instrument, like single-phase or three-phase electronic type electric

Ring Type CT with DC immunity Series Main characteristics
1. Adopt high magnetic permeability magnetic core, with high precision and good linearity and can resist DC component.
2. The range of applicable electric current is wide(5A-400A)
3. Primary input and secondary output ensure flexible and diversified forms as well as easy installation.
4. With a complete range of specification, products can be made according customers special requirements
Parameters and specification
Current Ratio Accuracy Rated Burden(Ω )
10(40)A/4mA
10(60)A/4mA
10(60)A/2.5mA 5
20(80)A/5mA 0.1, 0.2, 0.5 10
20(80)A/8mA 20
30(80)A/7.5mA
30(80)A/10mA
5. Customers' specifications and dimensions are welcome.

Haiyan Weijia Electric Technology Co., Ltd. is a professional large-scale manufacture of all types of electric shunt, integrating development and production together. Our main products include shunt, current shunt, brass shunt, relay, magnetic latching relays, current transformer, testing equipment, transformer cable, electro-optical samplers and related products. Our company was established in 2008, and we have many years of history in the shunt industry. Located near Ningbo, Shanghai, we enjoy convenient water, land and air transportation.

Currently, our product already exported to Russia, India European and other Western countries and regions. Our company has always focused on research, development and innovation, and has obtain some patent in the shunt field. In 2009, we attained ISO9001: 2008 Quality Management System Certification Certificate.

Our company continues to introduce new products to meet different needs, with high-quality products, reasonable prices, and good after service, we hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
