Rj 45 Network Lightning Surge Protector

Rj 45 Network Lightning Surge Protector
Price: US $ 10.3-14/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SN-RJ45
Model No: Snh-RJ45
Usage: Computer, Laptab, Workstation, Server
Tpye: Wireless
Support Work: Ethernet
Qualify: Ce, ISO, RoHS, FCC, Nation
IP Rating: IP 20
Feature: Network Surge Protection
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Manual Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Air
Installation: Fixed
Structure: MCB
Poles Number: 4
Certification: Ce RoHS

Product Description

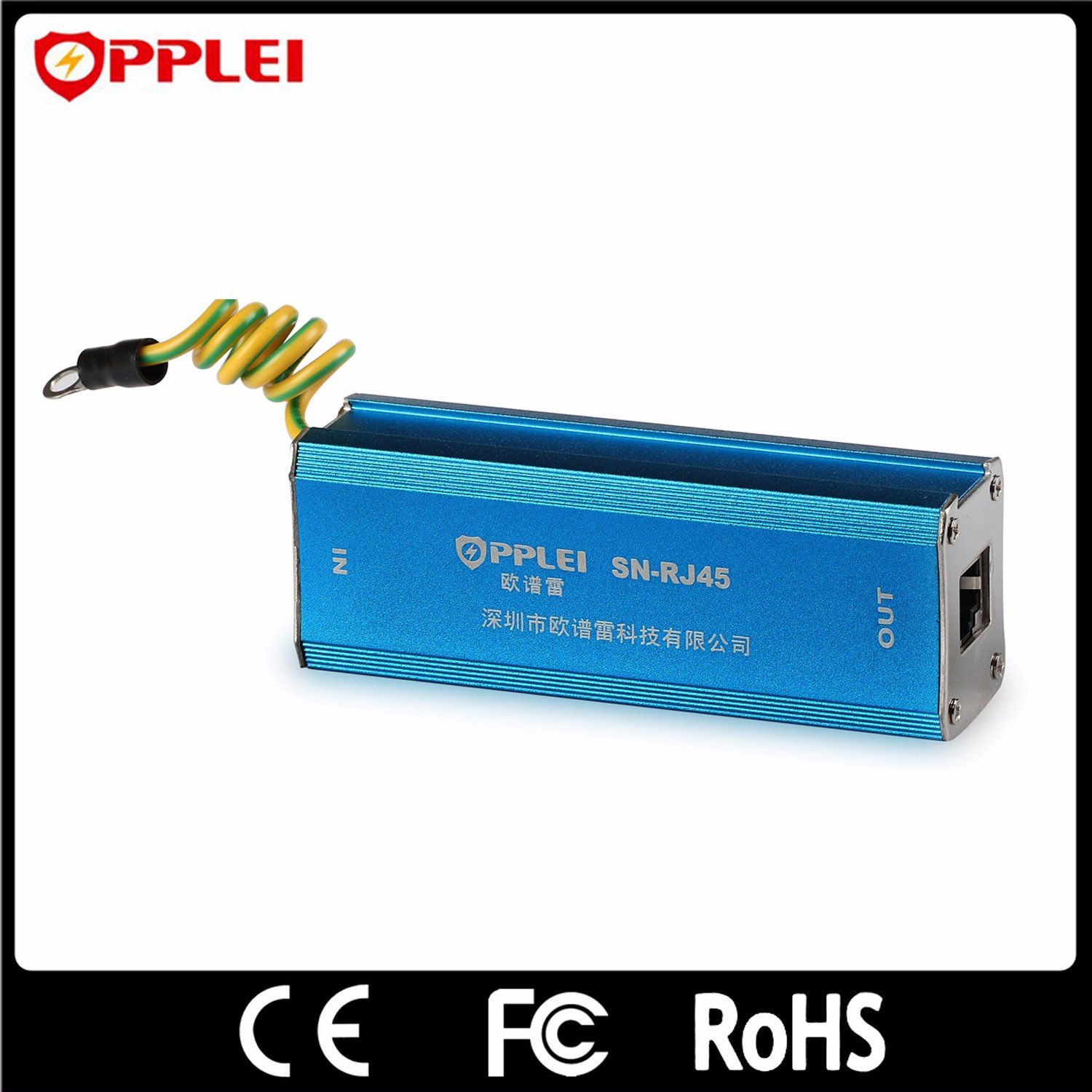

RJ 45 Network lightning surge protection

FEATURES:
Multi.Protection circuits, Gas-Tube+ TVS technology
Dual protection in Common module and different module
TVS array technology, low capacitance
Multi-Strike Capability
TECHNICAL PARAMETER:
ModelSN-RJ45
Electrical Parameter
Max.Continuous operating voltage Uc6V
Nominal discharge current(8/20µs)In2.5kA
Max.Discharge current  (8/20µs)Imax5kA
Limiting voltage (10/700µs) Up
Line-line25V
Line-ground500V
Adapt transmission rate100Mbps
Insertion loss Ae0.5dB
Protection line1/2 3/6
Response time Ta1ns
Interface formRJ45
Mechanical characteristics

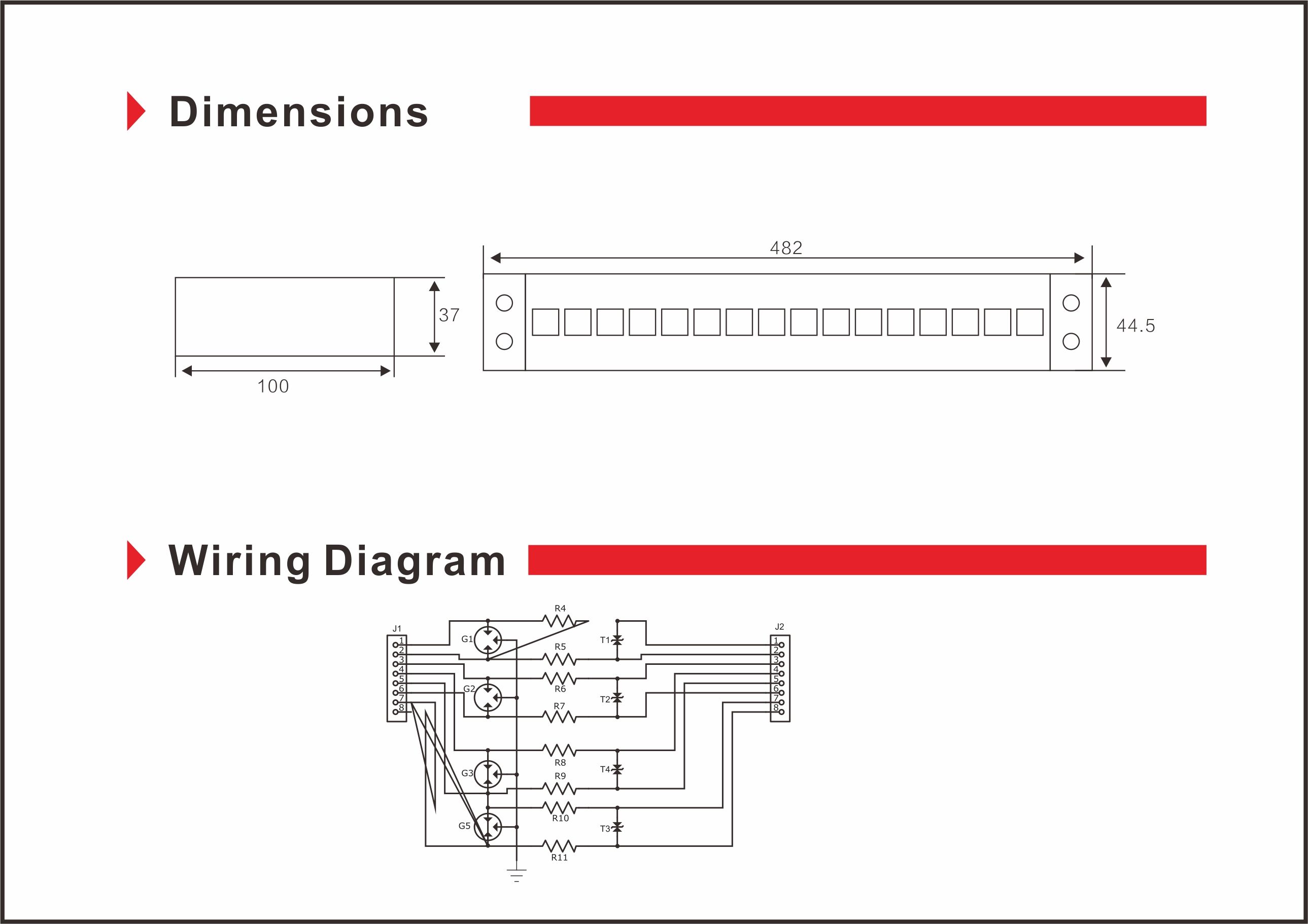

Dimension100(L) ×37(W) ×28(H)mm
Weight per unit100g
IP CodeIP20
Working conditionsTemperature:-40 to 80ºC, Relative humidity:≤95%
Standards ComplianceCE, FCC, RoHS,ISO9001


INSTALLATION AND MAINTENANCE
A)       The SPD should be connected in series between the protected device and the signal/power transmission channel.
B)      The input terminal (IN) of the SPD should connect to the signal/power transmission channel, and the output terminal (OUT) of the SPD should connect to the protected device.
C)       Connect earthing wire of the SPD to earthing bus-bar of the lightning protection system of the room or building.
No special duty needs to be carried out for maintenance.When problem arises and the SPD is suspected, check the system with SPD taken out of circuit.Should system recover, the SPD shall be regarded as a damaged unit and must be replaced immediately.







6. FQA:
Q: Can I get some samples?
A: Yes,
Sample orders welcomed.

Q: Can I use my
own Logo or design on goods?
A: Yes,
 OEM Support. Customized logo and design on mass production are available.

Q:What is the
delivery time?
A:
3 days for samples, 7-10 working days for mass production after payment.

Q: Can you give me a
discount?
A: Yes.
Big purchase. Large discount.

Q: What is the
payment term?
A:
T/T, L/C at sight, West union , Paypal, etc

Q: Can I trust you?
A: Absolutely YES, We are
"Made In China" verified supplier for many years.

Q: How is the
After-Sale Service?
A: We assure
 5 years warranty3 years replacement, any question we have technical department to help you.

Q: May I
visit your factory?
A:Sure, welcome any time. We can also
pick you up at airport or station.
