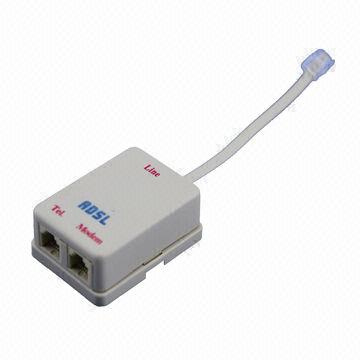

Rj11 ADSL Splitter of High Quality

Name: Rj11 ADSL Splitter of High Quality
Brand: all-electronics-online.com
SKU: 741706195
Availability: InStock
Rating: 4.8 (146 reviews)

Price:	US $ 2-18/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ST-ASDL-10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality:	High Quality
Price:	Competitive Price
Splitter:	Ce/RoHS
Data:	Telephone
Usage:	Server
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

We are specialized in producing LAN cable, patch panel, keystone jack, patch cord, cable management, modular plug, faceplate, network cabinet, PDU and much more since 2000

Specifications:
1. Separates the voice and data signals on your ADSL activated telephone line
2. Compact version suitable for users close to a telephone exchange
3. UK fax/modem and phone adapter
4. Pots -3dB, cut-off frequency: 7/8kHz
5. Pots pass ripple loss: (20Hz to 4kHz) ± 0.5dB
6. Attenuation: 30-300kHz >-65dB, 30-1104kHz >-55dB
7. DC resistance each line: 12.5 Ohms (maximum)
8. Insertion loss (200Hz to 4kHz): -0.5dB (maximum)
9. Return loss: 300-500Hz ≥ 16dB, 500-2, 000Hz ≥ 18dB, 2, 000-2, 400Hz ≥ 18dB
10. Longitudinal balance (CMRR): 200Hz-1kHz: -58dB minimum 3kHz: -53dB minimum
11. Pots loop current: 100mA DC
12. Envelope delay distortion (0.2 to 4.0kHz): 100u-second (maximum)
13. Impedance (300Hz to 3.4kHz): 600 Ohms
14. Hi-pot test: Tip to ring, 250V DC/1mA 2 seconds

Attenuation:
1.30-300kHz: ≥ 65dB
2.30-1104kHz: ≥ 55dB
3. DC resistance each line: 12.5Ω (maximum)
4. Insertion loss (200Hz to 4kHz): -0.5dB (maximum)

Return loss:

300-500Hz: ≥ 16dB

500-2000Hz: ≥ 18dB

2000-2400Hz: ≥ 18dB

Longitudinal balance (CMRR)

200Hz-1kHz: -58dB (minimum)

3kHz: -53dB (minimum)

POTS loop current: 100mA DC

Envelope delay distortion (0.2 to 4.0kHz): 100usec (maximum)

Impedance (300Hz to 3.4kHz): 600Ω

Hi-Pot test: Tip to ring, 250V DC/1mA 2 seconds

Marketing Under "Solitone" Brand

Shenzhen Leo Network Technology has 14 years of experience in supplying network communication products for various applications such as copper network cabling, fiber-optic, network cabinet, security cables and mini LAN SOHO systems to clients in the Americas, the Middle East, Africa, Asia, Western Europe and Australasia. Our products are well marketed under the brand "Solitone".

Daily Output of 560, 000 Meters

By utilizing 10 production lines and supported by 250 to 300 workers in our 16, 000sqm factory, we can turn out 560, 000 meters daily. To guarantee quality, we have nine to 14 QC auditors with an average experience of 13 years. They perform piece-by-piece inspections at each production level before delivery. We have an R&D team composed of five to nine engineers with an average experience of 10 years. They can produce customized items. To keep your option fresh, we release three to five new models per month.

Get a Reply within 24 Hours

Over 20 customers have been cooperating with us for over 10 years. Because we are highly committed to providing high quality, 95% of our customers place repeat orders with us. We are willing to support all developing companies, small or medium.

E-mail us today to know more. We will reply within one working day.
