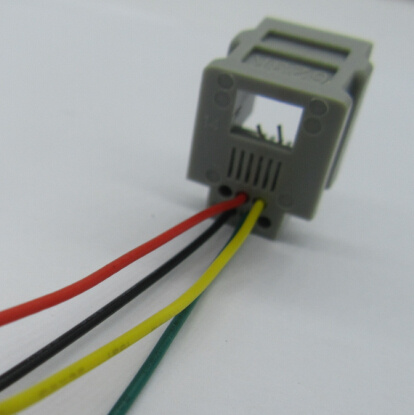

Rj11 Modular Jack 623k 6p4c 60mm Wire Length

Name: Rj11 Modular Jack 623k 6p4c 60mm Wire Length
Brand: all-electronics-online.com
SKU: 809804585
Availability: InStock
Rating: 5 (34 reviews)

Price:	US $ 0.26/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	623K-6-4-2-2-1-L60

Product Description

WIRED LEAD JACK SPECIFICATION
ELECTRICAL:
CURRENT RATING:1.5AMPS
VOLTAGE RATING:125V AC
Operating temperature:0ºC TO +70ºC
INSULATION RESISTANCE:1000MΩ MINI
WITHSTAND VOLTAGE:AC 1000V RMS 50Hz IHIN
CONTACT RESISTANCE:30mΩMAX

MECHANICAL:
MATING FORCE:350g…2 WIRE LEAD 500g…4WIRE LEAD 750g…6WIRE
LEAD900g…8WIRE LEAD 1050g…10WIRE LEAD
RETENTION STRENGTH:7.7Kg BETWEEN JACK AND PLUG
DURABILTY:750MATING CYCLES MINI

MATERIAL:
HOUSING:STANDARD ABS RESIN(UL94-0)
CONTACT WIRE:0.46mm DIAMETER PHOSPHOR BRONZE OPTIONAL GOLD PLTING OVEER VICKEL
GOLD PLATIVG:3u INCH,6u,INCH,15Uinch,30Uinch,50uINCH

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
