| Prod Model: |
RJ45 Connector |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Optional |
| Housing Material: |
PC /ABS |
| Standards: |
UL,Tia/Eia-568A |
| Termination: |
110,T568A&T568b |
| Application: |
Cable |
| Installation Mode: |
Rotary Jack |
| Type: |
SIM Jack |
| Interface Type: |
USB |
| Shape: |
Rectangular |
| Production Process: |
Welding |
| Customized: |
Customized |
| Working Frequency: |
Low Frequency |
| Feature: |
Fire/Flame Retardant |
| Cards Support: |
Single Card |
Product Description

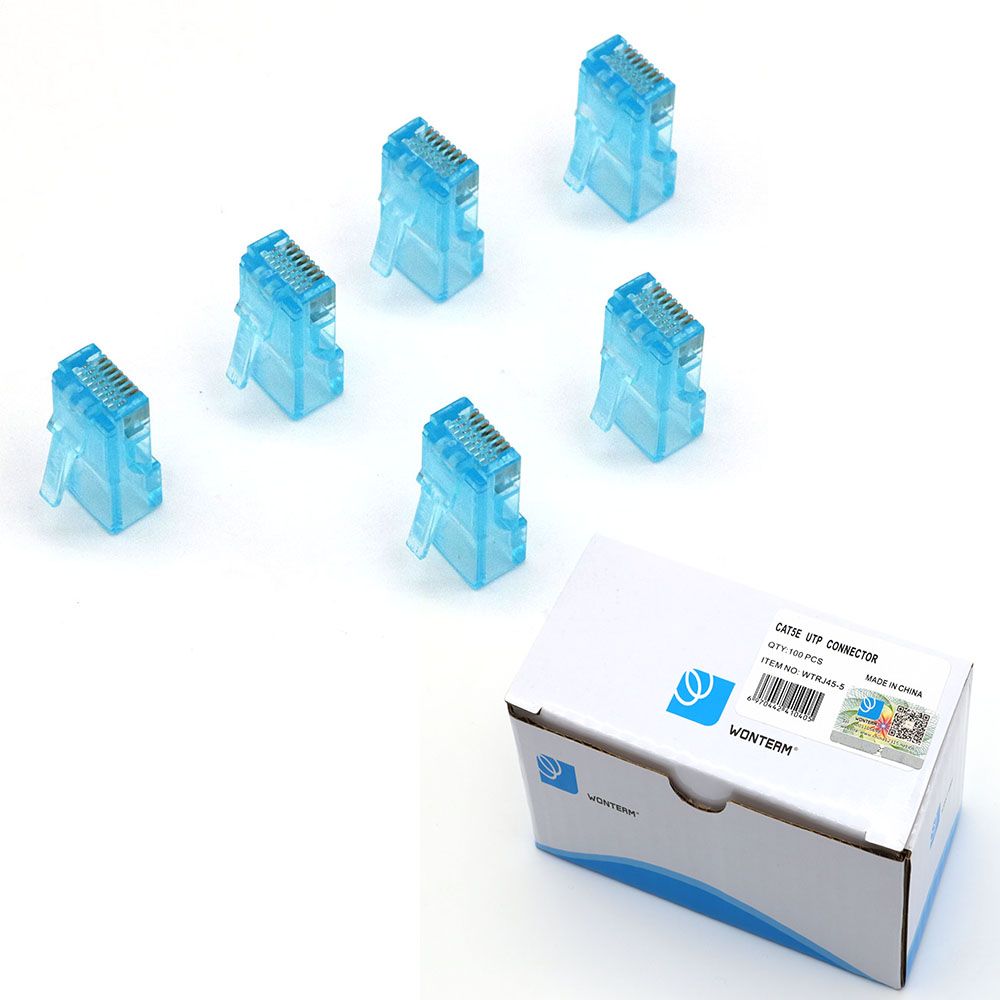

UTP FTP modular plug, cat5e RJ45 Connector
Crystal head
Product Description
Key Specifications/Special Features:
-RJ45 plug, unshielded/shielded solid/stranded 8P8C
-Contact: Phosphor bronze
-Surface plating silver: 0.5 to 5um
-Jack: PC (UL94V-0)
| Front Cover: | PC(UL94V-0)+ABS |
| Back Cover: | High Impact Flame Retardant PC |
| IDC Contact | Phosphor Bronze |
| IDC Holder | High Impact Flame Retardant PC |
| Sliding Block: | Flame Retardant PBT |
| IDC terminals: | Accepts 22,24,26 AWG Solid Wires |
| Mount Plate | 1mm cold-rolled plate,
electrostatic powder spraying process on the surface |
| Contact Pin: | whole phosphor bronze wire with nickel plating,
then 50μm gold plating layer |
8p8c UTP cat6 rj45 connector / rj45 modular jack for Solid Wire , 100 pcs / box
Key Specifications/Special Features:
-RJ45 plug, unshielded/shielded solid/stranded 8P8C
-Contact: Phosphor bronze
-Surface plating silver: 0.5 to 5um
-Jack: PC (UL94V-0)
Descriptions
| Cable to plug tensile strength | 7.7kg/minimum |
| Durability | 750 mating cycles (minimum) |
| Designed according to FCC standard and fully compatible with various jacks |
| Packing | 1000 or 100 pieces/bag with sticker to mark specification |
| CAT 5e FTP/STP connector/plug and CAT 6 UTP/FTP/STP connecters are also available |
Features:
1. All of products we offer are top quality and competitive price;
2. If there is no special explanation, all of our Brand are OEM;
3. Payment: We accept T/T and L/C and Western Union;
4. Packing:
1) Inner packing: 1000pcs/PE bag.
2) Outer packing: Carton box.
3) Other packing available according to client's request.
4. Any question, Please contact us in first time. We'll reply as soon as possible.
Specifications:
1. Types: 8P8C, 8P6C, 8P4C and 8P2C
2. Suitable cable: CAT 5e
3. Housing material: PC
4. Contact material: Phosphor bronze
5. Plating: Gold over nickel
6. Plating thickness: 3μ (standard), 6, 15, 30 and 50μ (optional)
7. Available in various transparent colors or shields
Advantage:
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Well-trained and experienced staffs to answer all your inquires in fluent English.
3. Distributorship are offered for your unique design and some our current models.
4. Protection of your sales area, ideas of design and all your private information.
5.Strictly conform to CE,ROHS,ISO certificate
6.Quick delivery time(20ft,7~15days)
