Prod Model: |
GYM7-B |
Usage: |
Switch System |
Type: |
Wired |
Support Network: |
Ethernet |
Information Content: |
Data |
Certification: |
RoHS |
Condition: |
New |
Product Description
10/100/1000BASE-T Copper SFP Transceiver
GYM7-B
Features:
Up to 1.25Gb/s bi-directional data links
Hot-pluggable SFP footprint
Extended case temperature range0°C to 70°C (-40°C to +85°C industrial class )
Fully metallic enclosure for low EMI
Low power dissipation
Compact RJ-45 connector assembly
Detailed product information in EEPROM
+3.3V single power supply
Access to physical layer IC via 2-wire serial bus
10/100/1000 BASE-T operation in host systems with SGMII interface
Compliant with SFP MSA
Compliant with IEEE Std 802.3TM-2002
Compliant with FCC 47 CFR Part 15, Class B
RoHS Compliant Products10GBASE-T Copper SFP+ Transceiver

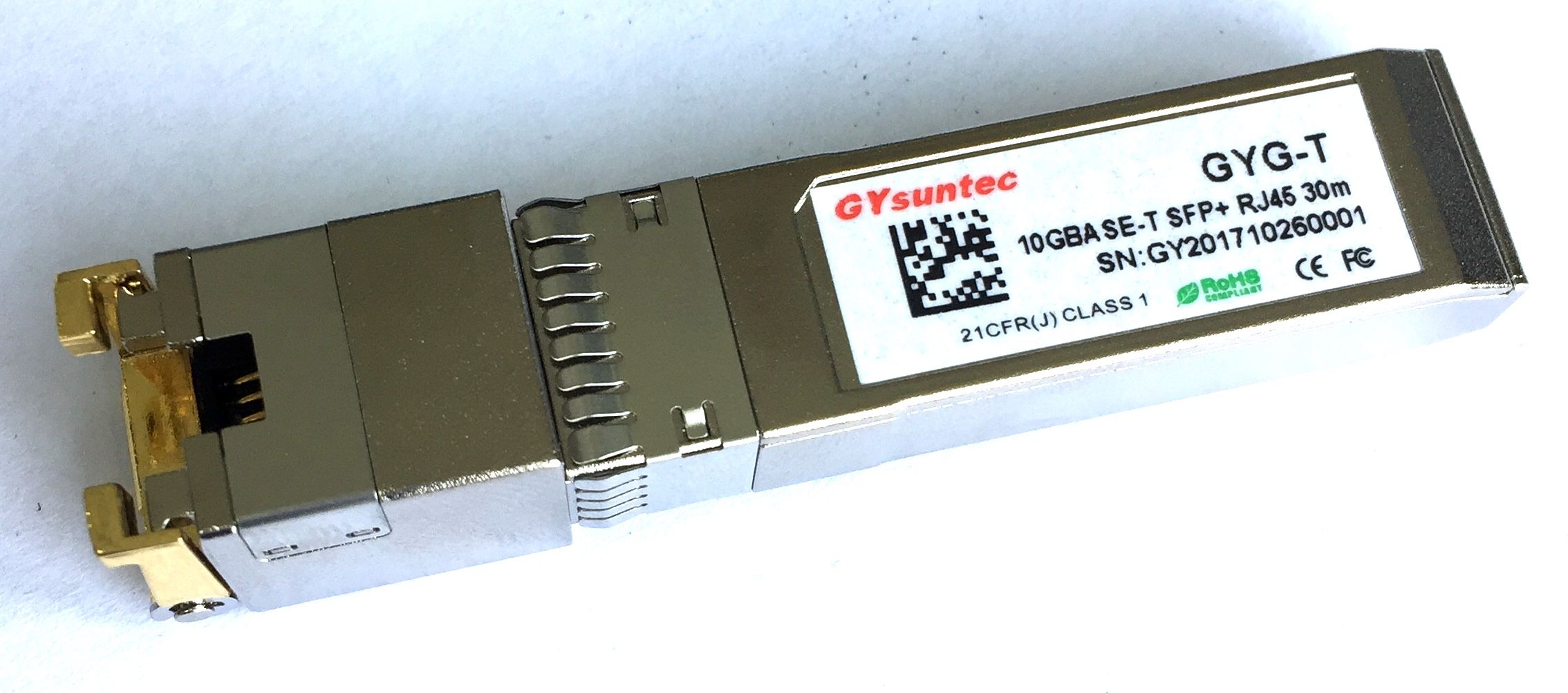

SFP+-10GBASE-T GYG-T
Features:
Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T
Hot-pluggable SFP footprint
Compact RJ-45 connector assembly
RoHS compliant and lead-free
Single +3.3V power supply
10 Gigabit Ethernet over Cat 6a cable
Ambient Operating temperature: 0°C to +65°CApplications:
1.25 Gigabit Ethernet over Cat 5 cable
Switch/Router to Switch/Router Link
High speed I/O for file severs
Description:
GYM7-B(I) 10/100/1000BASE-T copper SFP transceiver is high performance, cost effective module compliant with the Gigabit Ethernet and 10/100/1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 10/100/1000Mbps data rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The GYM7-B(I) supports 10/100/1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The GYM7-B(I) provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2-wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2-wire serial bus at address ACh.

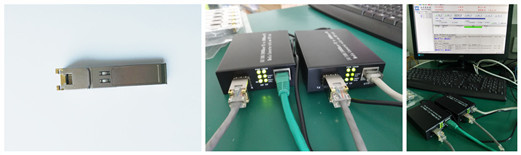

SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3 . SFP+-10GBASE-T uses the SFP's RX_LOS(must be pulled up on host) pin for link indication. If pull up or open SFP's TX_DISABLE pin, PHY IC be reset.Retest & Packaging
ShippmentDHL,TNT.UPS, FedEx and so on. 1.Warranty
One~five years Warranty based on products, three monthes free exchange and one year free repairing.
2.OEM is welcome.
3. Any Inquire is welcome.
Any inquire will be replied within 24 hours.
4.After-sales service.
a. From the beginning of production till the successful delivery, we will track on time and post you the status.
b. When the goods arrived, if you have question after inspection, please feel free to contact us, we'll provide solution.
FAQ
1. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
2. We can be compatible with:
3. What is the lead time?
For usual products. We keep stock, could ship 1~15 days based on qty after PO. For big quantity and special products. Please check lead time with our sales representative.
4. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
5. What is your payment terms?
Usually, we need prepayment by T/T, West Union or Cash, we will consider other payment terms if we cooperated more 6 months.
6. Could I return the products if there is a quality problem?
Yes, if there is a quality problem happen, including products defects, uncompatibilty, we could accept free exchange or return and refund.
7. How to place an order?
Please send your inquires to sales or call our sales hotline: +86-0755 86957360
8. Could I use our own logo and label?
Yes, we could provide a OEM service and make the products with your own label.
(If you prefer discuss about the products in English)
Ms. Niki Qin
www.gysuntec.com
Tel: +86 0755 86957360
GY SUNTEC is a high-tech enterprises of ShenZhen China, was founded in 2006. Design and manufacture fiber optic active components, modules and fiber optic system products, Include SFP, SFP+, XFP, CFP, CFP2, CFP4, QSFP+, SFP28, QSFP28 series optical transceiver, and fiber media converter, optical video transmitter and receiver, we also customorized the laser diode for customer. Our products widely applied in many fiber optical communication fields, such as Telocom, Datacom, Data centre, access network, fiber channel and FTTX, CCTV surveillance etc. Our engineer have more 18year experience in fiber optic field, abundant technology design capability and rich OEM & ODM co-operation experience, we would design and biuld your product for your application. Compliant with CE, RoHS, FCC. To achieve your 100% satisfaction is our persistent goal! Looking forward to establishing a long-term and steady co-operation relationship with you!
GYSUNTEC have more than 50 employee, include R&D 6 and businessman 8. We have more than USD500000 investment in auto machine and test equipment.
Our products fully compitable with all famous brands
We have an experienced engineering team with over 18 years on cross platform compatibility and able to access to massive major manufacturer's switches, routers...To verify the compatibility in our test lab.
CISCO, HP, EXTREME, , JUNIPER, ARISTA, FUJITSU, HUAWEI, , ZYXEL, DLINK, Siemens, WESTERMO, KORENIX etc.
