Shenzhen Linko Electric Co., Ltd. >> RJ45 Waterproof Connector with LED and Transformer Cat 5e

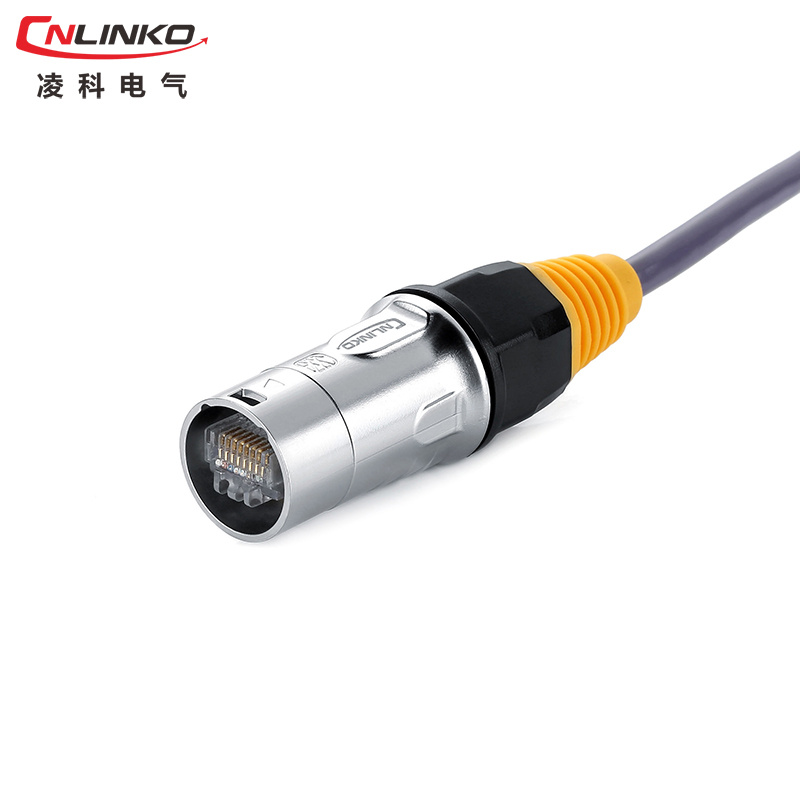

RJ45 Waterproof Connector with LED and Transformer Cat 5e

RJ45 Waterproof Connector with LED and Transformer Cat 5e
Price: US $ 5.99-6.71/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: YT-RJ45-CPE-10-002, YT-RJ45-JSX-16-001
Certification: Ce.CCC, ISO9001
Product Type: RJ45
Rated Current: 1.5A
Rated Voltage: 1000V
Protection Level: IP65
Connecting Mode: Pull/Push
Working Temperature: -40ºC-80ºC
Application: Signal Equipment
Gender: Female and Male

Product Description

RJ45 waterproof connector with LED and transformer CAE 5E

YT-RJ45 series product introduction

     YT-RJ45 can provide the solutions for signal transmission in harsh environments. Specially these connectors can apply for industiral ethernet in audio, buisness, amuse-ment, live stage action, DMX lighting, industrial and outdoor in network environments. YT-RJ45 series can provide cable jacket, assembly female plug, straight plug, cable coupler, protective style, it is the strongest protection for installation of the box with the protection level of IP65.


Data Sheet:
Cable Specification:0.15 mm2 ~ 0.2 mm2 /26~24AWG
Diameter Range:Φ5.5mm ~Φ7mm
Contact Diameter x number:Φ1.0 x8
Rated Current (A):1.5A
Operating voltage(AC.V.rms):1000V
Contact resistance:<30mΩ
Insulation resistance:>500mΩ
Protection Level:IP65
Durability:≥500 times plug in /out
Working Temperature:-40°C~80°C
Connecting mode:pull/push
Housing&Insulation parts materials:High-performance engineering plastics
with silica gel materials waterproof circle
UL94-V0 Flammability
Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
