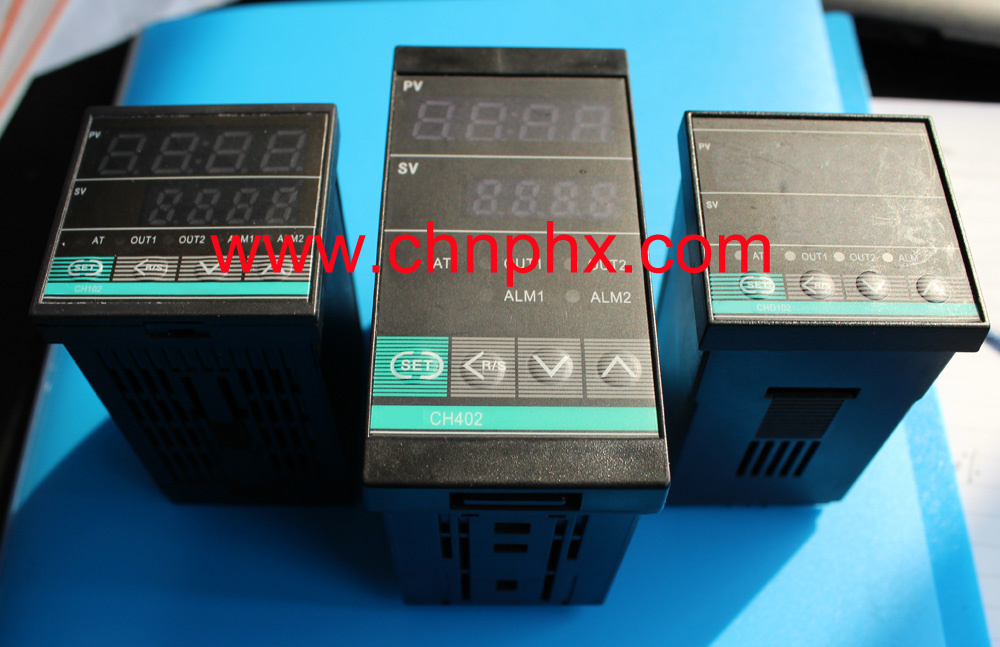

Rkc CB/CD/CH Series Digital Pid Temperature Controller Thermostat

Name: Rkc CB/CD/CH Series Digital Pid Temperature Controller Thermostat
Brand: all-electronics-online.com
SKU: 697040165
Availability: InStock
Rating: 4.5 (43 reviews)

Price:	US $ 15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input:	Universal
Output:	SSR,Relay or 4-20mA
Control:	Pid
Certification:	CE
Control Type:	Digital
Type:	Temperature Controller
Display Type:	LED

Product Description

RKC CB/CD/CH Series Digital PID Temperature Controller

1)with heating and cooling dual output
2)with up to two stages alarm
3)High accuracy

Features:
1. Power supply: 90~260VAC
2. Input: Universal input(TC, RTD, Linear Signal)
3. Display: Dual line four digits LED display
4. Output: Relay/SSR/4-20mA/Thyristor zero trigger optional(Specify when order)
5. Auto-Tuning: Auto tuning function available to secure precision control
6. Accuracy: 0.5%F. S+/-1 digit
7. Available size: 48mm*48mm, 48mm*96mm(Horizontal), 72mm*72mm, 96mm*96mm, 96mm*48mm(Vertical)
8. Control: P, PID, PI, PD, ON/OFF(P=0)
9. Decimal points: Available when input is RTD
10. Mounting: Panel Mount
11. Alarm: Up to two stages alarm available
12. Control action: Heating or cooling(selectable)
13. Heating and cooling(wind cooling on/off control)
14. Heating and cooling(water or fluid cooling, PID control)

Ordering Information
CH -1-2-3-4-5
1: Size Information
102: 48mm(Width)*48mm(Height)
402: 48mm(Width)*96mm(Height)
702: 72mm(Width)*72mm(Height)
902: 96mm(Width)*96mm(Height)
502: 96mm(Width)*48mm(Height)
2: Output 1
R: Relay
V: Logic voltage pulse(SSR drive)
D: 4-20mA
A: Single-phase thyristor zero crossing trigger output
T: Triac output
3: Output 2
R: Relay
V: Logic voltage pulse(SSR drive)
A: Single-phase thyristor zero crossing trigger output
T: Triac output
N: without output 2
4: Alarm
1: 1 alarm output
2: 2 alarm outputs
5: Power supply
96: 90~260VAC
24: 24VDC

For further information, please contact our sales team.
