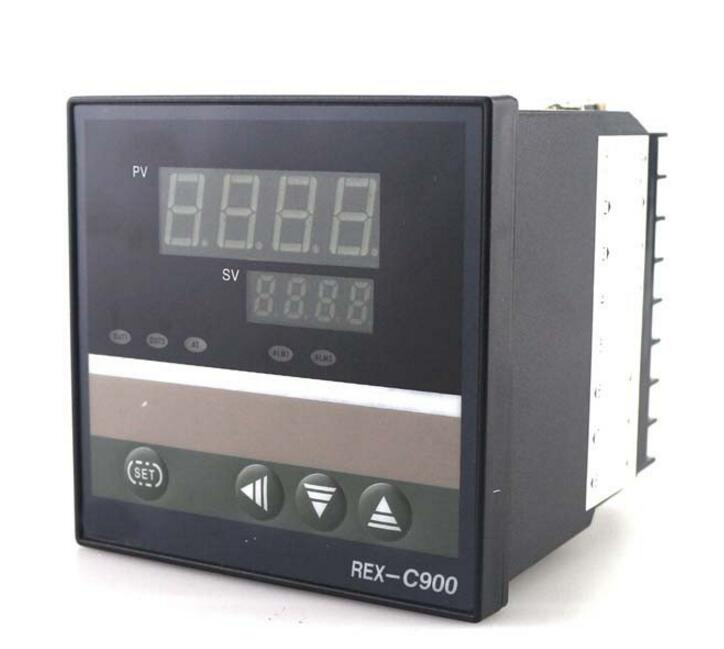

Rkc Rex-C900 Digital Pid Temperature Controller K Type Relay Output

Name: Rkc Rex-C900 Digital Pid Temperature Controller K Type Relay Output
Brand: all-electronics-online.com
SKU: 816245685
Availability: InStock
Rating: 4.5 (99 reviews)

Price:	US $ 6-8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	REX-C700
Operating Voltage:	220V
Power Supply:	AC85-AC265V 50/60 Hz
Current:	5A
Output Mode:	Relay,SSR
Input Specification:	K,E,J,PT100
Regulating Methods:	Intelligent Pid Control

Product Description

0-400 degree Digital PID Temperature Controller REX-C900 with TC/TRD multi-input Free shipping

Features:

This is a bid for a dual display universal digital programmable temperature controller that supports many type of thermocouple sensor.

it powered by 100V~240V AC

Model: REX-C900 FK02-M*AB +K thermocouple
PID control

Specifications:

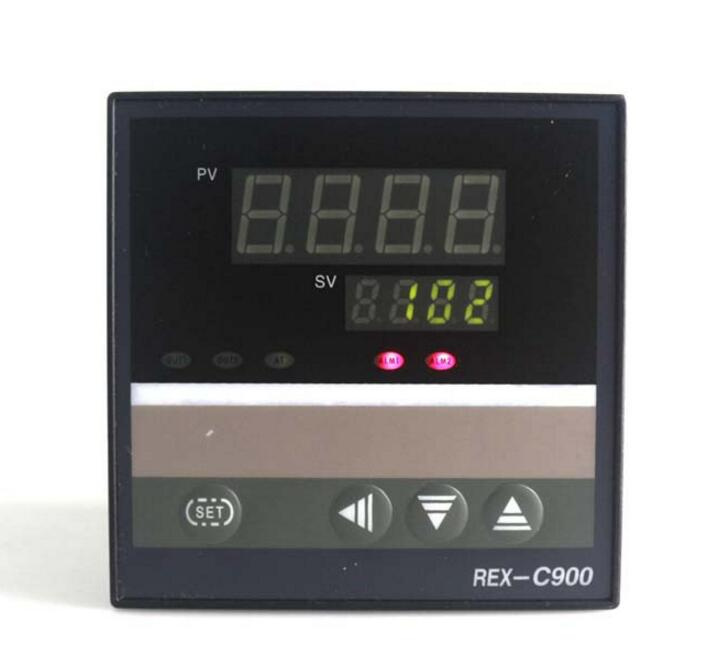

Display: Dual display for Celsius (C)
Range: -0-400C (Only when with the factory K type thermocouple)

Thermocouple: K,J,S,E,R,Wre3 ~ Wre25

Thermo Resistor: PT100, Cu50

Main Output: Relay
PID cooling/heating control
Accuracy: 0.5
Dimension: DIN: 1/8 (96mm x 96mm x 110mm)
Individually programmable PID control parameters.
P, I, d, controlling period, digital filter coefficient, and more
Relay control ready to connect
K type thermocouple: 0-400C, 1m cable .
Compact design:
DIN 1/8 great form-factor to be included/build-in to your product.

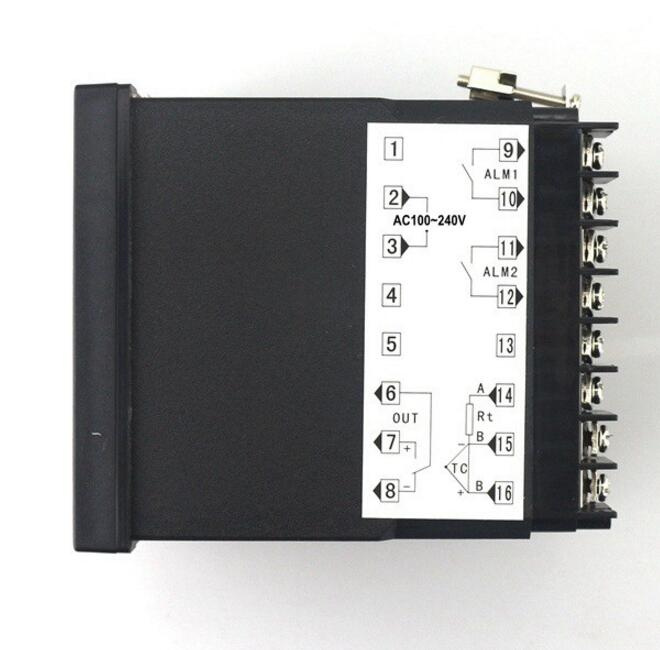

Input: TC(K, J, S, E) / RTD (Pt100, CU50) universal input, or 0-20mA signal.
Control output: one way RELAY output , Normal open, capacity 250V/3A AC or 30V/3A D
Alarm output: 2 line output, 7 kinds of alarm mode: high/low/high deviation/low deviation/interval/out of interval/breakage alarm.

Package include:

1x REX-C900 PID Temperature Controller
1x K thermocouple ( 0-400C, 1m cable (3 feet).
1 x English Manual
