| Prod Model: |
rls-600-avr-me-02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Product Line, School, Hotels, Hospitals |
| Color: |
Green , Can Be Customized |
| Capacity Range: |
100~2500kVA |
| Input Voltage: |
380V/400V±15 % ±20 % ± 30 % |
| Output Voltage: |
380V/400V |
| Voltage Regulation Accuracy: |
1%~5 % |
| Efficiency: |
> 98 % |
| Current Type: |
AC |
| Phase: |
Three Phase |
| Usage: |
SVC |
| Frequency: |
Low Frequency |
| Brand: |
Kewang |
Product Description

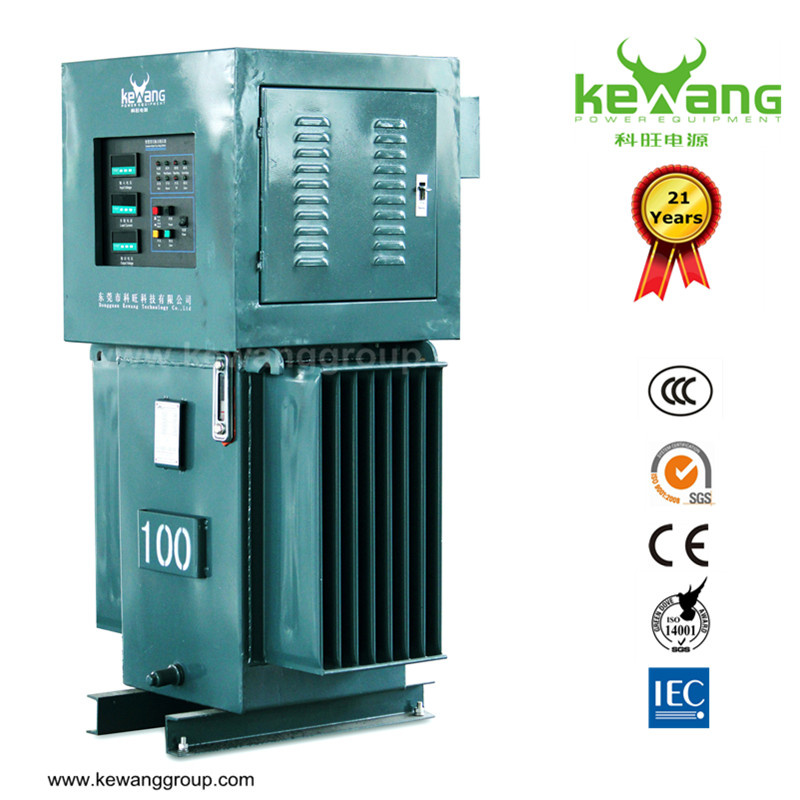

RLS Series Contactless Intelligent Type voltage stabilizer (AVR)Introduction RLS series voltage regulator is designed by advanced technology and digital control system to stabilize
the output voltage within specific range. The RLS regulator has the advantage of high impact resistance,
super strong instantaneous overload capacity and long service life.Feature 1. Contactless without carbon brush friction;
2. Integrated circuit with reliable function for voltage regulation;
3. High efficiecy more than 98%;
4. Protection system: over load, over voltage, short circuit protection;
5. Higher precision,longer cycle life,more stable voltage;
6. Low loss and maintenance-free for a long time.Senarios Comercial Application: High-rise Building, Elevator Control, Lighting Equipment Industrial Field:
Industrial Automation, Production Lines, CNC, Factory Machines, Heavy Load Machinery,Precision
Machinery Medical Equipment: X-ray, CT Scanner, MRI System, Radiation Therapy MachineTechnical ParametersCapacity Range | 100~2500kVA | Frequency | 50Hz | Resistance Power | 2000V/60S < 20mA |
Input Voltage | 380V/400V±15 % ±20 % ± 30 % | Response Time | < 0.5s | Insulation Resistance | > 5MΩ |
Output Voltage | 380V/400V | Efficiency | > 98 % | Ambient Temperature | -10ºC~ +40ºC |
Voltage Regulation Accuracy | 1%~5 % (Settable) | Waveform Distortions | < 3 % | Relative Humidity | < 95% |
Specification
(only for REFERENCE)
of RLS Series 3 phase 1000KVA automatic ac voltage regulator avr
|
Model | Capacity(KVA) | Phase | N.W(kg) | Cabinet |
| RLS-100 | 100 | 3 | 420 | 1 |
| RLS-150 | 150 | 3 | 580 | 1 |
| RLS-200 | 200 | 3 | 690 | 1 |
| RLS-250 | 250 | 3 | 760 | 1 |
| RLS-300 | 300 | 3 | 1200 | 1 |
| RLS-400 | 400 | 3 | 1450 | 1 |
| RLS-500 | 500 | 3 | 1550 | 1 |
| RLS-600 | 600 | 3 | 1700 | 1 |
| RLS-800 | 800 | 3 | 2100 | 1 |
| RLS-1000 | 1000 | 3 | 2400 | 1 |
| RLS-1250 | 1250 | 3 | 3600 | 1 |
| RLS-1600 | 1600 | 3 | 3800 | 1 |
| RLS-2000 | 2000 | 3 | 4300 | 1 |
| RLS-2500 | 2500 | 3 | 4600 | 1 |
Company Profile of KeWang Group

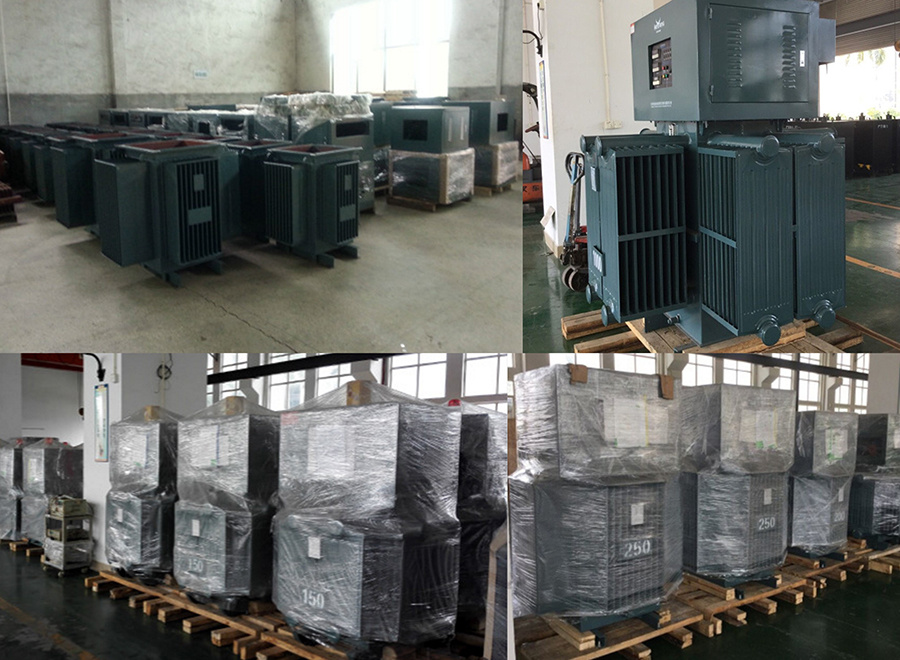

Factory View
Shipment
Quality Assurance System of Kewang Group
1.Supplier Evaluation
2.Income Inspection ( Material Purchasing )
3.Testing (Winding ) ( Lamination stacking )(VPI Peration)
4.F/G Ispection ( Assembling and Cleaning )
5.Packing
6.Shipping
Our Service
1.Quick response in before sales period help you got order
2.Excellent service in production time let you know each step we made
3.Reliable quality solve you aftersale headache
FAQ
Q1: What is the Guarantee? A1: 12 months (for free) from the date of B/L.
Important: 1. The efficiency of our Voltage Regulators / Stabilizers are 90% to 95%
(some series of them reaches 95%), please don't let them work overload!
2. Please make sure that all the electric wires are connected correctly
according to the electric diagram!
Q2: Can we put/show our own Logo on your products?
A2: Yes, no problem, however, the quantity should be a bit bigger.
Q3: For your products, can we take our Favourite Colours?
A3: Yes, no problem. But we need certain quantity , all colors need to be debugged.
Q4: Is OEM/ODM available?
A4: Yes, it is! Our products can be Customized. We have 20 senior engineers in our R&D Dept.,
we design and produce all kinds of Automatic Voltage Regulators/Stabilizers ,transformers
according to our customers' specific requirements.
Q5: How about the Packing?
A5:All exported goods are packed with compsite board cartons , so that we could better protect
our roducts and also easier for being piled up
Q6: How about the Delivery Time?
A6: Generally speaking, it takes us 2 weeks to produce the goods after deposit or L/C.
Q7: What is your monthly output? A7: 6000pcs
Q8: What is the MOQ?
A8: For the small capacity products (Automatic Voltage Regulators/Stabilizers) of the
default configuration, it is 5 sets. For the big capacity products, it is 1 set.
Q9: How about the Delivery Terms?
A9: By sea or by air or by road, FOB ,CFR, CIF, etc. any is acceptable to us.
Besides, some items can be sent by international express, such as DHL,TNT,UPS,EMS, Fedex, etc.
Q10: Can you offer Form A or Form E or C/O ?
A10: Yes, no problem, we can apply for it from our local government.
Kewang Group is one of the largest professional provider and leader in the new energy and power distribution filed in China whose business covers power devices for Wind power, Solar power, and Natural Gas Energy. It's dedicated to R&D, manufacturing, sales & engineering of high/ low voltage transmission, distribution devices & related power devices. Moreover, it provides integrated solutions for enterprises power supply, data center, and distributed new energy. Kewang has been serving for royal customers over 40 countries, with recognized good quality & professional service.
As a leading power supply company, Kewang Group had taken the lead to be qualified with the ISO9001 quality system certification & ISO14001 environment system certification, and the CCC China mandatory certification. Our products are qualified with European CE certification and American UL certification. We had taken 11 projects nominated by the local government: 4 of which had won government's scientific prizes, and over 30 patents had been achieved. We keep consistent cooperation with South China University of Technology and Wuhan University. With the introduction of high class technical talents, we integrate various resources for R&D, quality& management improvement-- these cooperation enable us to set up strong advantages in techniques, talents & brand promotion.
Product line:
1. Customized Transformer & Reactor for application of UPS, PV Inverter, Electrical Car Station, etc.
2. RlS Series Contactless Intelligent type Voltage Stabilizer
3.1kw-5kw Smart Solar Energy Storage System with built in Inverter and Battery
4. DBW/SBW Dry type Voltage Regulator
5. SE series Air-cooled Transformer
6. UPS
7. Generator Set
