Product Description

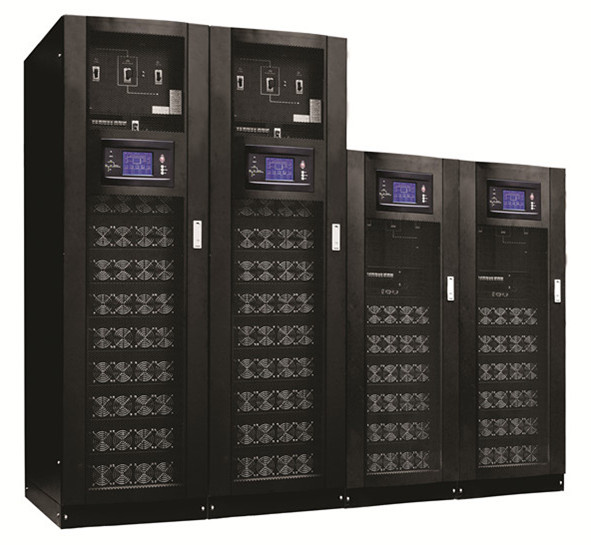

RM series Modular UPS 10-200kVA
System characteristics:
1. Modular design, hot swappable.
2. Strong load adaptability for linear and nonlinear load.
3. Intelligent module and system protection design.
4. Incredible low noise system design.
5. Double DSP controller for individual power module.
6. Digital control for the whole parts including rectifier, inverter, charger and discharger.
7. IGBT modules rather than discrete components are applied in the power module.
8. Inbuilt power distribution for input and output connection.
9. Large touch screen LCD with plenty of information.
10. Independent charger for batteries, intelligent battery management system.
11. Digital paralleling technology, very low circle current between modules.
12. Totally front access, top and bottom cable connection.
13. Each individual module is configured with independent controller, avoid single point failure risk.
|
Capacity |
10-200KVA |
|
Main Input |
|
Input voltage |
380V/400V/415V(line to line)
220V/230V /240V(line to neutral) |
|
Input frequency |
50/60Hz |
|
Power factor |
>0.99 |
|
Input voltage window |
-40%~+25% |
|
Frequency window |
40-70HZ |
|
Battery |
|
Battery voltage |
±240VDC |
|
Charger power |
20%*Power |
|
Charger voltage precision |
1% |
|
Bypass |
|
Bypass voltage |
380V/400V/415V, three phase
220V/230V/240V, one phase |
|
Bypass voltage window |
-20%-+15%, full load |
|
Bypass overload capabiltiy |
125%, long time operation |
|
125%< load <130%, last for more than 1 hour |
|
130%
|
|
>1000%, last for more than 100ms |
|
Output |
|
Output voltage |
380V/400V/415V, three phase
220V/230V/240V, one phase |
|
Voltage precision |
1% (balance load),1.5% (unbalance load) |
|
Voltage THD(Total Harmonic Distortion) |
THD<1.5%(linear load),THD<5%(nonlinear load) |
|
Power factor |
0.8 |
|
Phase tolerance |
120°±0.5° (balance and unalance load) |
|
Crest factor |
3:1 |
|
Overload capabiltiy |
105%,long time operation |
|
110%, transfer to bypass after 1hour |
|
125%, transfer to bypass after 10 minutes |
|
150%, transfer to bypass after 1 minute |
|
>150%, transfer to bypass after 200ms |
|
System |
|
System efficiency |
Normal mode: 95% |
|
ECO mode: 99% |
|
Battery mode efficiency |
95% |
|
Display |
LCD+LED, Touch screen and keyboard |
|
IP class |
IP20 |
|
Interface (Communication Ports ) |
RS232,RS485,Dry contacts,SNMP card,EPO,Generator interface |
|
Installation/Connection |
Top or bottom cable connection |
|
Operation temperature |
0-40 |
|
Storage temperature |
-25~70 |
|
Relative humidity |
0-95% (non-comdensing) |
|
Noise(dB) |
<55dB |
|
Weight(KG) |
6-module cabinet |
RM060/10, RM090/15, RM120/20 |
150KG |
|
10-module cabinet |
RM100/10, RM150/15, RM200/20 |
180KG |
|
PM10 |
10KVA: 20KG |
|
PM15 |
15KVA: 21KG |
|
PM20 |
20KVA: 22KG |
|
Dimension(W*D*H)(mm) |
6-module cabinet |
600*900*1600 |
|
10-module cabinet |
600*900*2000 |
|
Module |
400*600*133 (10KVA/15KVA/20KVA) |
