RM Series Rack Mounted Modular 25-200kVA UPS

Name: RM Series Rack Mounted Modular 25-200kVA UPS
Brand: all-electronics-online.com
SKU: 829451455
Availability: InStock
Rating: 4.6 (58 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RM200/25C
System Capacity:	200kVA/150kw
Power Module Capacity:	25kVA/25kw
Input:	3p+N+PE
Rate Voltage:	380/400/415VAC (Line-Line)
Rate Frequency:	50/60Hz
Output PF:	1
Battery Number:	32-44 Settable
Battery Cold Start:	Yes
Module Weight:	18kg
Cabinet Weight:	140kg
Phase:	Three Phase
Type:	On-line
Protection:	Short Circuit
Brand:	Invt

Product Description

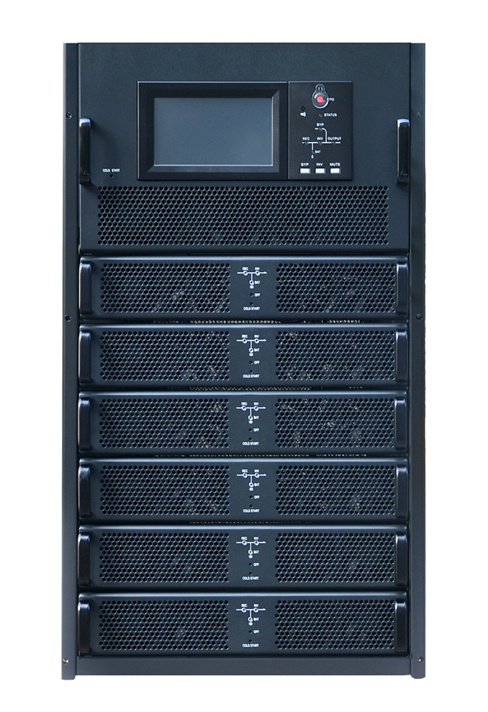

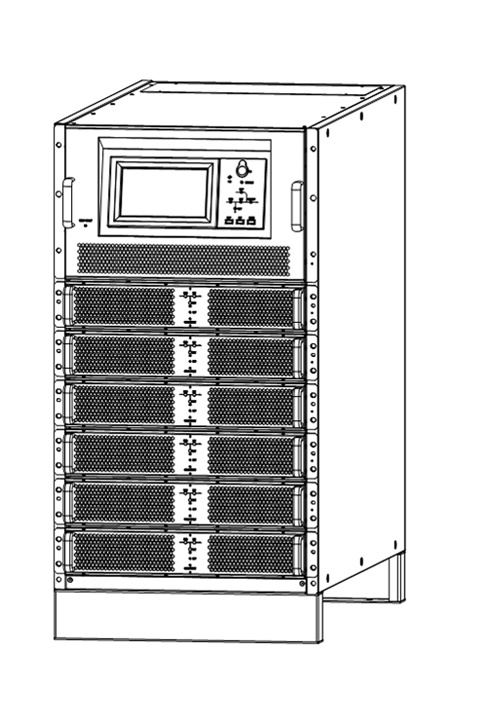

The RM Series Rack Mounted Modular UPS is scalable, hot-swappable, online double conversion. The power capacity is from 25 to 200kVA/kW, it's the ideal choice for modern data center. With the latest IGBT three-level and full DSP control technology, the new RM series delivers the best combination of reliability and flexibility.

Application:
IDC(Internet Data Center), network servers and workstation, control system, communication system, office, PC etc

Features:
1. High Power Density

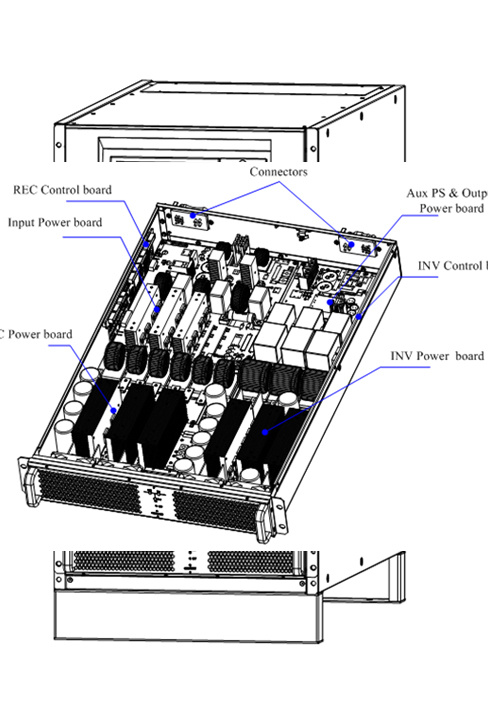

25kVA power module in 2U height, saving great amount of space, easy for capacity expansion
2. Rack Modular Design
Module design, compatible with 19" standard rack cabinet, convenient to be integrated with servers
3. Battery Cold Start
UPS can be powered on from the battery without utility
4. Friendly Interface
Touch LCD display with abundant information

System Capacity	150kVA/150kW	200KVA/200kW
Power Module Capacity	25kVA/25kW
No. of Modules	6	8
Main
Input	3P+N+PE
Rate Voltage	380/400/415VAC (line-line)
Rate Frequency	50/60Hz
Input Voltage Range	304~478Vac (line-line),full load 228V~304Vac (line-line),derate from 75% to 100% load
Input Frequency Range	40Hz~70Hz
Input PF	>0.99
Input THDi	<3% (100% Linear load)

Bypass
Rate Voltage	380/400/415VAC (line-line)
Rate Frequency	50/60Hz
Input Voltage Range	Settable, Default -20%~+15% High line: +10%, +15%, +20%, +25% Low line: -10%, -15%, -20%, -30%, -40%
Bypass Frequency Range	Settable, ±1Hz, ±3Hz, ±5Hz
Bypass Overload	110% ,Long time 110%~125%,5 mins 125%~150%,1min 150%~400%,1 sec >400% ,200ms
Output
Rate Voltage	380/400/415VAC (line-line)
Rate Frequency	50/60Hz
Output PF	1
Output THDu	<1% ,Linear load <6% ,Non-linear load( IEC/EN62040-3)
Inverter Overload	<110%, 1 hour 110%~125%,10 mins 125%~150%,1min >150%,200ms
Battery
Battery Number	32-44 Settable
Charging Accuracy	1%
Charging Capacity	up to 20% * Output Power
Battery Cold Start	Yes

Efficiency
AC Mode	>95.7%
Battery Mode	>95.5%
System
Display	LED + LCD + Touch Screen
Interface	RS232, RS485,Programmable Dry Contact
Option	SNMP Card, Parallel,SPD
Envioroment
Operation Temperature	0 ~ 40 ºC
Storage Temperature	-40 ~ 70 ºC
Rality Humidity	0 ~ 95% Non Condensing
Noise (1 meter)	65dB @ 100% load, 62dB @ 45% load
Phisical data
Module Dimension	43667785mm
Module Weight	18kg
Cabinet Dimension	4859001072 mm	4829161550 mm
Cabinet Weight	140kg	160kg

As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.

The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.

INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
