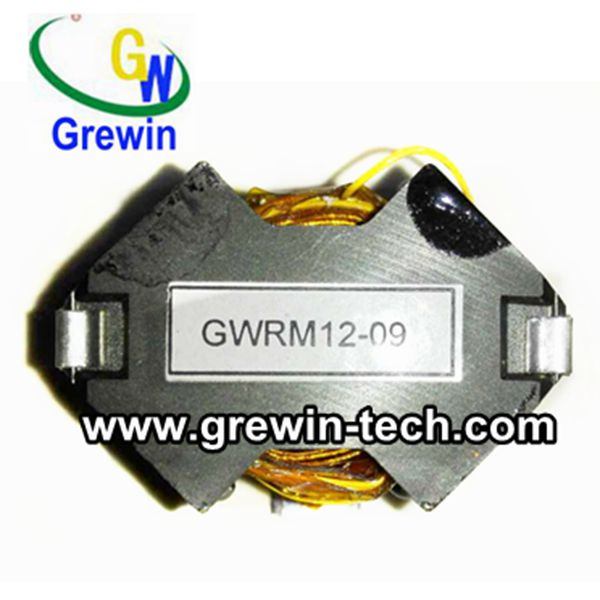

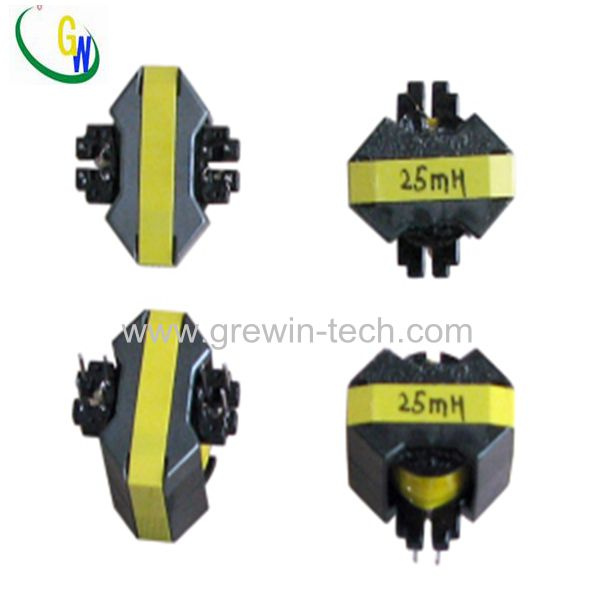

RM Type High Frequency Transformer with IEC

Name: RM Type High Frequency Transformer with IEC
Brand: all-electronics-online.com
SKU: 671398422
Availability: InStock
Rating: 4.7 (142 reviews)

Price:	US $ 1.1-1.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	300/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RM6, E (F) 20, P18, U15 AND EFD15
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Transformer
Application:	Power Supply
Phase:	Single
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Coil:	Ee Core
Brand:	Grewin High Frequency Transformer

Product Description

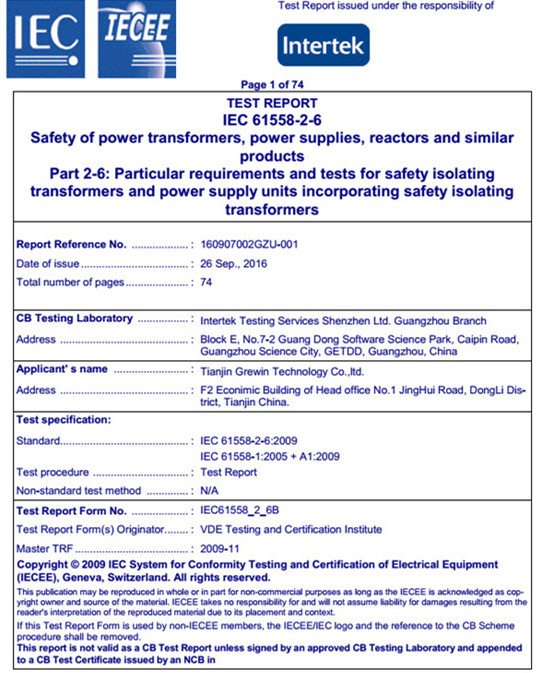

We have passed ISO9001:2015,CE,SGS approval and IEC report

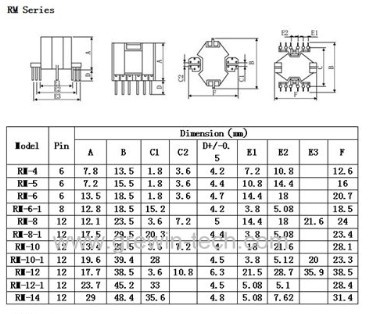

RM type Transformer Parameters

1).Features:
Has a strong anti-interference, distributed capacitance, impedance, attenuation of low transmission, firm
structure,can fine-tune the inductance, etc., are widely used in fax
machines, PBX.

2). Applicable frequency range: 20 to 100kHz :
Operating frequency: higher than 200kHz
High magnetic flux and low loss magnetic materials
With low leakage inductance and high efficiency .

3).Applications:
PCB circuits, computer, TV, monitor, scanner, duplicator, mobile adapters, printer and other equipments and instruments.
UL insulation system for Class B (130), F (155), H (180)

4). Can make other customized Ferrite transformers:
Power range: core type using N67 grade material
<5: RM4, P11/7, EF12.6 and U10
5 to 10: E (F) 16, RM5 and P14/8
10 to 20: RM6, E (F) 20, P18, U15 and EFD15
20 to 50: RM8, P22, RM10 ETD29, E25 and EFD20
50 to 100: ETD29, ETD34, RM12, P30 and EFD25
100 to 200: ETD34, ETD39, ETD44, P36, E30, E42 and EFD30
200 to 500: ETD44, ETD49 and E55
>500: ETD54, ETD59 and E65

5)Advantage:
1.UL, CUL, CE, ISO9001:2015
2.We offer custom-made transformers, OEM and ODM are welcome
3.We deliver the quality you expect at consistently competitive prices
4.Transformer quality lifetime:10 Years.
5.Specialty Sales service:5 -10 Years
6.Transformers Test: 100% test before the shipment

About us:
1). Tianjin Grewin Technology Co.,ltd. has always laying great emphasis on our core business philosophy "Quality and Honesty First ".
Grewin Mission: Growing together side by side,Mutual success hand in hand.

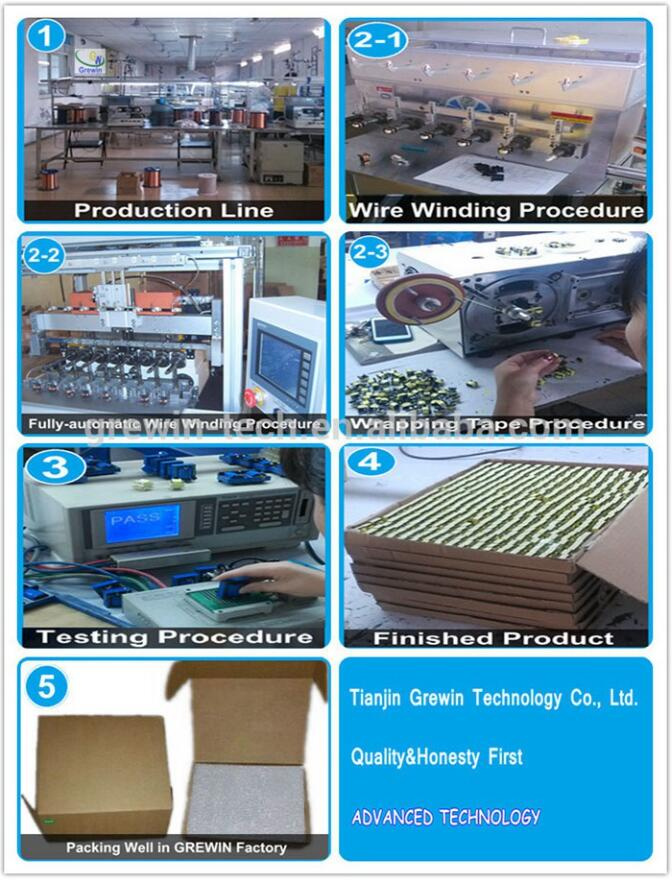

Production:

2).Terms of Shipment:
Within 10 working days after received related prepayment or L/C.

3).Payment terms:
(1). T/T 100% or 50% deposit by T/T in advance, balance amount to be paid 7 days before
delivery.
(2). By irrevocable L/C at sight, to be issued immediately against confirmed order.
(3). Payment by T/T, if order amount is less than USD 20,000.

4).Flow chart of trading activities:

NO	Step	Days need
1	Request for quotation	1 day
2	Making quotations	1 day
3	Offer and counter offer	3 days
4	Sending and receiving samples	3-10 days
5	Sample confirmation	3 days
6	Placing a firm order	1 day
7	Paying and receiving the down payment	1-4 day
8	Factory production & Quality inspection	15-20 days
9	Paying and receiving the balance	4 days
10	Delivery of goods	1 days

Contact:
Cathy
Tianjin Grewin Technology Co.,Ltd.
Website:www.grewin-tech.com
Tel:86-22-84943756

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.

Our company have many advantages which can be your honesty and reliable supplier:

WHY CHOOSE US?

A. Business philosophy "Quality and Honesty First“

B. Over 40 years experience of transformer designing and producing.

C. Transformer 100% test before the shipment;

D. UL, CE, ISO9001: 2008

E. We offer custom-made transformers, OEM and ODM are welcome

F. We expect at consistently competitive prices

G. Transformer quality lifetime: 10 Years.

H. Professional experiences of the sales and engineers: 5 -10 Years

Grewin Mission: Growing together side by side, Mutual success hand in hand.

We sincerely invite you to join us to create a bright future.
