Product Description

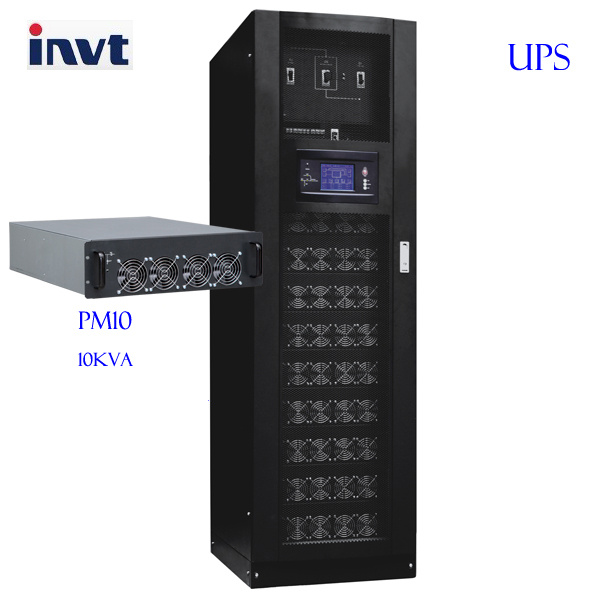

RM10-200kVA DC Startable Modular UPS Power
Ups power Features
1. RM10-200kVA DC Startable Modular UPS Power
UPS Power in modular design
PM10 to RM100.
2. RM10-200kVA DC Startable Modular UPS Power
DC startable: Built-in battery cold start module
Emergent On-UPS operation when AC unavailable.
3. High Power UPS modular solution for IT infracture construction,
100kVA in a module cabinet, 2 cabinet N+X parallellable via kit.
4. High Frequency UPS adopt high frequency PWM tech. Transformer-less structure power-saving.
5. Inbuilt PDU provide power distribution function.
6. Hot-swappable bypass module for online maintenance, repair bypass module.
7. Independent control in each single module.
8. Full digital control tech in rectifier, battery charger, inverter and discharger,
Double DSP for rectifier/battery charger, inverter/discharger.
9. Integrated IGBT module for rectifier and inverter in each power module.
10.3-level IGBT drive tech 400V 0V -400V.
11. Independent battery charger in each single power module,
High charge power available 20% of rated capacity.
12. Richful monitor interface, RS232, RS485, dry contact, power management card, SNMP network
Management tool/protocol, Mod Bus, Can Bus.
13.5.7 inch large touch screen human-machine interface for monitor, field operation UPS.
14. Parallel redundant N+X Non Master-Slave parallel
Digital circulating current control guarrantees reliability.
RM10-200Va Modular UPS is not only in advanced design, but it is power-saving, high efficiency and durability, Widely applied in IT industry infracture.
Modular UPS Photos available on your enquiry. Thks.
|
Ups Power |
10-100KVA 200kva |
|
Main Input |
|
Input voltage |
380V/400V/415V(line to line)
220V/230V /240V(line to neutral) |
|
Input frequency |
50/60Hz |
|
Power factor |
>0.99 |
|
Input voltage window |
-40%~+25% |
|
Frequency window |
40-70HZ |
|
Battery |
|
Battery voltage |
±240VDC |
|
Charger power |
20%*Power |
|
Charger voltage precision |
1% |
|
Bypass |
|
Bypass voltage |
380V/400V/415V, three phase
220V/230V/240V, one phase |
|
Bypass voltage window |
-20%-+15%, full load |
|
Bypass overload capabiltiy |
125%, long time operation |
|
125%< load <130%, last for more than 1 hour |
|
130%
|
|
>1000%, last for more than 100ms |
|
Output |
|
Output voltage |
380V/400V/415V, three phase
220V/230V/240V, one phase |
|
Voltage precision |
1% (balance load),1.5% (unbalance load) |
|
Voltage THD(Total Harmonic Distortion) |
THD<1.5%(linear load),THD<5%(nonlinear load) |
|
Power factor |
0.8 |
|
Phase tolerance |
120°±0.5° (balance and unalance load) |
|
Crest factor |
3:1 |
|
Overload capabiltiy |
105%,long time operation |
|
110%, transfer to bypass after 1hour |
|
125%, transfer to bypass after 10 minutes |
|
150%, transfer to bypass after 1 minute |
|
>150%, transfer to bypass after 200ms |
|
System |
|
System efficiency |
Normal mode: 95% |
|
ECO mode: 99% |
|
Battery mode efficiency |
95% |
|
Display |
LCD+LED, Touch screen and keyboard |
|
IP class |
IP20 |
|
Interface (Communication Ports ) |
RS232,RS485,Dry contacts,SNMP card,EPO,Generator interface |
|
Installation/Connection |
Top or bottom cable connection |
|
Operation temperature |
0-40 degree |
|
Storage temperature |
-25~70 degree |
|
Relative humidity |
0-95% (non-comdensing) |
|
Noise(dB) |
<55dB |
|
Weight(KG) |
|
|
|
|
10-module cabinet |
RM100/10 |
180KG |
|
PM10 |
10KVA: 20KG |
|
|
|
|
|
|
|
Dimension(W*D*H)(mm) |
|
|
|
10-module cabinet |
600*900*2000 |
|
Module |
400*600*133 (10KVA) |
As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.
The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.
INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
