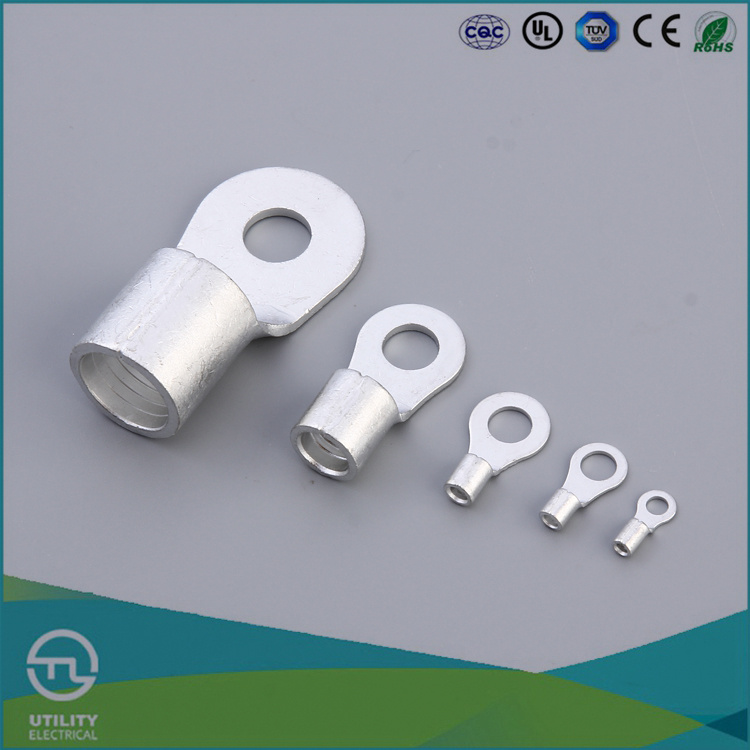

Rnb Copper Cable Lug, Copper Connector Terminal

Rnb Copper Cable Lug, Copper Connector Terminal
Price: US $ 0.01-1/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: RNB1.25-3
Current: 19A
AWG: 22-16
Thickness: 0.75mm
Rigid Cable: 0.5-1.5mm2
Material: Copper
Application: Transmission of Electrical Signals
Type: Lug
Species: Lug
Shape: Round Header
Certification: Ce
Brand: Utl

Product Description

UTL Factory Price RNB Copper Cable Lug , Copper Connector Terminal


Model No.RNB1.25-3
Item name Circular Naked Terminal
MaterialTerminal : Copper
Size See the drawings
Thinckness of terminal 0.75mm
Rigid/soft Cable0.5-1.5mm2
Conductor Size22-16AWG
Current rating19A
Coloras in picture or OEM
Payment termA.Below US$300,western,paypal accepted
B.Above US$300,bank account

Item No.USA screwScrew dia. D2Dimensions (mm)
mmBLFE
RNB 1.25-3#43.25.712.64.954.83.41.7
RNBS 1.25-3.5#63.75.712.64.95
RNBM 1.25-3.5#63.76.614.46.3
RNBL 1.25-3.5#63.78.015.87.0
RNBS 1.25-4#84.36.314.46.3
RNBM 1.25-4#84.38.015.87.0
RNB 1.25-5#105.38.015.87.0
RNBL 1.25-5#105.39.8188.5
RNBS 1.25-61/46.49.818.08.5
RNB 1.25-61/46.411.621.811.1
RNB 1.25-85/168.411.621.811.1
RNB 1.25-103/1810.513.625.513.9
RNB 1.25-121/213.019.231.016.5





Cable size : 1.5-2.5mm² ( AWG 16-14 )        max current : Imax = 27A      material : purple copper        thickness : 0.8mm
Item No.USA screwScrew dia. D2Dimensions (mm)
mmBLFE
RNB 2-3#43.26.612.34.34.84.12.3
RNBS 2-3.5#63.76.612.34.3
RNBM 2-3.5#63.76.616.07.0
RNBL 2-3.5#63.78.516.87.75
RNBS 2-4#84.36.616.07.0
RNBL 2-4#84.38.516.87.75
RNBS 2-5#105.38.516.87.75
RNBL 2-5#105.39.516.87.25
RNB 2-61/46.41221.811
RNB 2-85/168.41221.811
RNB 2-103/1810.513.625.513.9
RNB 2-121/213.019.23116.5




Cable size : 2.5-4mm² ( AWG 14-12 )        max current : Imax = 37A      material : purple copper        thickness : 1.0mm
Item No.USA screwScrew dia. D2Dimensions (mm)
mmBLFE
RNB 3.5-4#84.38.018.07.76.05.03.0
RNBS 3.5-5#105.38.018.07.7
RNBL 3.5-5#105.31221.47.7
RNB 3.5-61/46.41221.47.7
RNB 3.5-85/168.4152813.7



Cable size : 4-6mm² ( AWG 12-10 )        max current : Imax = 48A      material : purple copper        thickness : 1.0mm
Item No.USA screwScrew dia. D2Dimensions (mm)
mmBLFE
RNB 5.5-3.5#63.77.215.75.96.85.63.4
RNBS 5.5-4#84.37.215.75.9
RNBL 5.5-4#84.39.519.88.3
RNB 5.5-5#105.39.519.88.3
RNB 5.5-61/46.412.025.813.0
RNB 5.5-85/168.415.028.013.7
RNB 5.5-103/810.515.028.013.7
RNB 5.5-121/213.019.232.416











UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
