Rocker Switch Arb Carling Narva Style LED 12V 24V Waterproof

Prod Model:	MAIYU
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Current:	DC20A\10A AC 10A \16A
Max. Voltage:	DC12V\24V AC 250V\125V
Rating Ampere:	DC20A\12V 10A\24V
Rating Current:	AC10A\250V 16A\250V
Function:	on-off
Grade:	IP68
Warranty:	12 Months
Usage:	Electrical Appliance
Standard:	Standard
Lamp:	With Lamp
Certification:	CE
Condition:	New
Color:	Red/Blue/Green/White/Orange

Product Description

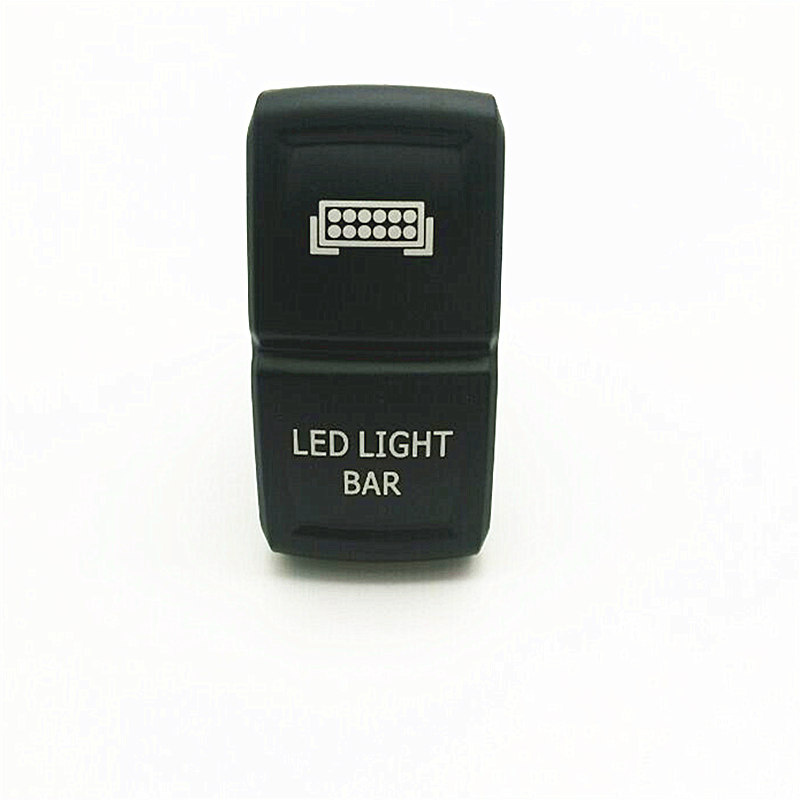

New images 12V 20A dual LED Light Rocker Switch Carling Style Boat Car Rocker Switch

Details and the Specifications:

1.Abs plastic panel
2.waterproof rocker switch
3.500000 Mechanical Life
4. Process can be screen printing and laser carving
5. It has a face surface size of 0.90' x 1.92' and uses a standard din size mounting hole. Cutout Dimensions are 0.83' x 1.45'.

These high quality 12 volt Rocker switch is a single throw ON - OFF switch designed to operate your 12 volt accessories. They have a face surface size of 2' (50mm) x 1' (25mm) and uses a standard din size mounting hole of 1.41' (36mm) x .86' (22mm) this is the standard size of most switch holes in modern vehicles, however it is best to check your particular hole size if unsure.

Single Pole Single Throw ON-OFF switch.
12VDC 20Amps, 24VDC 10Amps 125VAC 16Amps, 250V DA10Amps.
Black hard surface rocker.
Two LEDs in the switch.
Upper LED is ON only when the switch is turned ON.
Lower LED is independent.
Both LEDs have separate grounds.
Same size as the Carling and ARB switches.
Rated 16A 12V.
No rear barriers between terminals.
