| Prod Model: |
round or square Rocker switch, |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Maiyu |
| Rating 1: |
AC 250V 6A |
| Rating 2: |
AC 125V 10A |
| Style: |
[ Spst ] |
| Light Color: |
Red |
| Pin: |
3 Pins |
| Size: |
24 X 21 X 25mm/ 0.9" X 0.8" X 1" (L*W*T) |
| Approval: |
CE RoHS |
| Mount Size: |
21 X 13 X 21mm/ 0.8" X 0.5" X 0.8" (L*W*Depth) |
| Usage: |
Vehicle |
| Standard: |
Standard |
| Lamp: |
Without Lamp |
| Color: |
White |
| Certification: |
CE |
| Condition: |
New |
Product Description

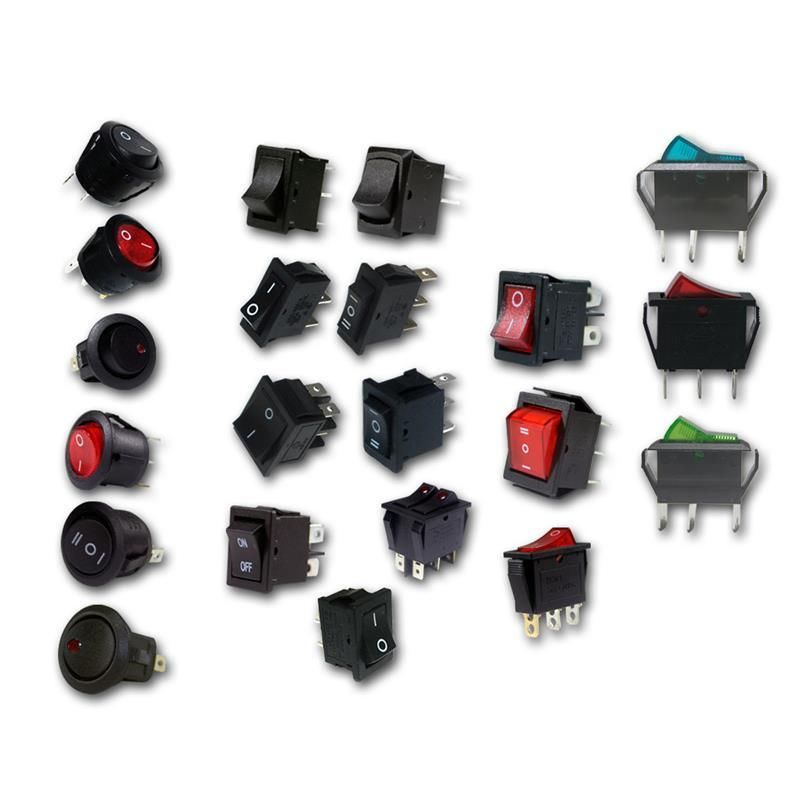

Rocker switch, round or square, Built-in switches, Car Dashboard Dash Boat Van
Rocker switch 1 pole (item number: 60000002)
- suitable for snap-in mounting
- dimension: 13x19,2mm
- with flat connectors: 4,8mm
- dimension: 21x15x25mm (l-w-h)
- max. 250V / 3A
- on/off function
- 1-pole |
|
Rocker switch 1 pole (item number: 60000021)
- suitable for snap-in mounting
- dimension: 13x18.9mm
- with flat connectors: 4,8mm
- dimension: 21x15x26mm (l-w-h)
- max. 250V / 6A
- on/off/on function |
|
Rocker switch 2 poles (item number: 60000030)
- suitable for snap-in mounting
- dimension: 27.6x21.7mm
- with flat connectors: 6.3mm
- dimension: 25.2x30.8x32mm (l-w-h)
- max. 250V / 6A
- on/off function
- 2 poles |
|
Rocker switch 1 pole (item number: 60000033)
- suitable for snap-in mounting
- dimension: 10.4x28.2mm
- with flat connectors: 4.8mm
- dimension: 30.8x13.4x38mm (l-w-h)
- max. 250V / 6A
- on/off/on function
- 1 pole |
|
Rocker switch 1 pole (item number: 60000036)
- suitable for snap-in mounting
- dimension: 10.4x28.2mm
- with flat connectors: 4.8mm
- dimension: 30.8x13.4x38mm (l-w-h)
- max. 250V / 6A
- on/off/on function
- 1 pole |
|
Rocker switch 1 pole (item number: 60000119)
- 2 positions: on/off
- 1-pole
- connection part for lighting
- ideal for snap-in mounting
- plastic housing
- transparent rocker: blue
- 12V, max. 20A
- dimension: 27x11.8mm
- 6.3mm with flat connectors (for terminals)
- dimension l-w-h: 30x15x35mm |
|
Rocker switch 1 pole (item number: 60000122)
- 2 positions: on/off
- 1-pole
- connection part for lighting
- ideal for snap-in mounting
- plastic housing
- transparent rocker: red
- 12V, max. 20A
- dimension: 27x11.8mm
- 6.3mm with flat connectors (for terminals)
- dimension l-w-h: 30x15x35mm |
|
Rocker switch 1 pole (item number: 60000125)
- 2 positions: on/off
- 1-pole
- connection part for lighting
- ideal for snap-in mounting
- plastic housing
- transparent rocker: green
- 12V, max. 20A
- dimension: 27x11.8mm
- 6.3mm with flat connectors (for terminals)
- dimension l-w-h: 30x15x35mm |
|
Double rocker switch, 1 pole (item number: 60000179)
- suitable for snap-in mounting
- built-in dimension: about 25.5x22mm
- depth: about 29mm
- dimension: about 30x25x32mm (l-w-h)
- connection via flat connector 6,3mm
- max. 250V / 15A
- ON / OFF - Function
- double rocker switch
- red indication light (only with 230V)
- 2x 1-pole (4 switching contacts, 2x closing contacts, 2x light contacts) |
|
Mini rocker switch, black, 1 pole (item number: 60000188)
- suitable for snap-in mounting
- installation dimension 19x12.5mm
- built-in depth 19mm
- with flat connectors 4.5mm
- max. 250V / 3A
- 3 contacts
- 1 switch
- 2 positions (note: no label)
- 1-pole |
|
Mini rocker switch ON/OFF, 2 poles (item number: 60000191)
- suitable for snap-in mounting
- installation dimension 19x12.5mm
- built-in depth 23mm
- with flat connectors 4.5mm
- max. 250V / 3A
- 4 contacts
- 2 closings
- 2 positions (on/off)
- 2 poles |
|
Mini rocker switch, black, 2 poles (item number: 60000194)
- suitable for snap-in mounting
- installation dimension 18x13mm
- built-in depth 23mm
- with flat connectors 4.5mm
- max. 250V / 3A
- 4 contacts
- 2 closings
- 2 positions (no labelling)
- 2 poles |
|
Mini rocker switch, red, 2 poles (item number: 60000197)
- suitable for snap-in mounting
- installation dimension 19x12.5mm
- built-in depth 28mm
- with flat connectors 4.5mm
- max. 250V / 3A
- 4 contacts
- 2 closings
- 2 positions (O-I)
- 2 poles |
|
Rocker switch, red, 2 poles (item number: 60000200)
- suitable for snap-in mounting
- installation dimension 25.5x22mm
- built-in depth 28mm
- with flat connectors 6.3mm
- max. 250V/15A
- 6 contacts
- 3 positions (I-0-II)
- 2 poles |
|
Rocker switch 1 pole (item number: 60000212)
- suitable for snap-in mounting
- installation dimension 26x10mm
- built-in depth 28mm
- with flat connectors 6.3mm
- max. 250V/15A
- 3 contacts
- 2 positions (I-0)
- 1 pole
- rocker switch illuminates |
|
Mini rocker switch, 1 pole, black (item number: 60000024)
- suitable for snap-in mounting
- installation dimension 20.3x20.3mm
- dimension l-w-d: 29x23x26mm
- round
- with flat connectors 4.8mm
- max. 250V/6A
- on/off function
- 1 pole |
|
Mini rocker switch, 1 pole (item number: 60000045)
- suitable for snap-in mounting
- installation dimension 20.3x20.3mm
- dimension l-w-d: 29x23x26mm
- round
- with flat connectors 4.8mm
- max. 250V/6A
- on/off function
- 1 pole
- red switch |
|
Automobile rocker switch 1 pole (item number: 60000167)
- 2 positions: ON / OFF
- 1-pole
- for snap-in mounting
- plastic housing, round
- rocker switch with red light
- 12V, max. 16A
- built-in ø: 20.0mm
- flat connectors 4.8mm (for terminals)
- dimensions: l-w-h 30x12x24mm |
|
Rocker switch 1 pole (item number: 60000185)
- suitable for snap-in mounting
- installation dimension 20.3x20.3mm
- dimension Ø-h: 22x29mm
- round
- with flat connectors 4.8mm
- max. 12V/6A
- on/off function
- 1 pole
- red switch |
|
Rocker switch 1 pole (item number: 60000206)
- suitable for snap-in mounting
- built-in ø: 20.3mm
- built-in depth: 23.5mm
- switch ø: 22.7mm, round
- with flat connectors 4.8mm
- max. 250V/6A
- 3 switch functions (I-0-II)
- 1 pole
- black |
|
Rocker switch 1 pole (item number: 60000341)
- 2 positions: ON / OFF
- 1-pole
- for snap-in mounting
- plastic housing, round
- rocker switch with red light
- 230V, max. 6A
- built-in ø: 20.0mm
- flat connectors 4.8mm (for terminals)
- dimensions: l-w-h 30x12x24mm |
|
