Rod Displacement Sensor for Position Measurement

Name: Rod Displacement Sensor for Position Measurement
Brand: all-electronics-online.com
SKU: 820199675
Availability: InStock
Rating: 4.3 (54 reviews)

Price:	US $ 100-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LWH-1250
Usage:	Position Measurement Sensor
Feature:	High Pricision& High Speed
Repeatability:	0.01mm
Working Stroke:	75-1250mm
Material:	Aluminum Alloy

Product Description

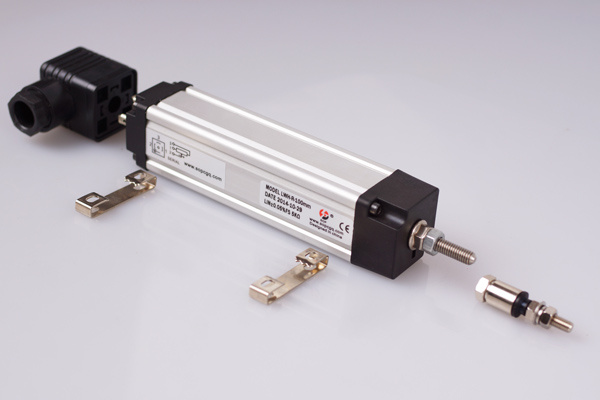

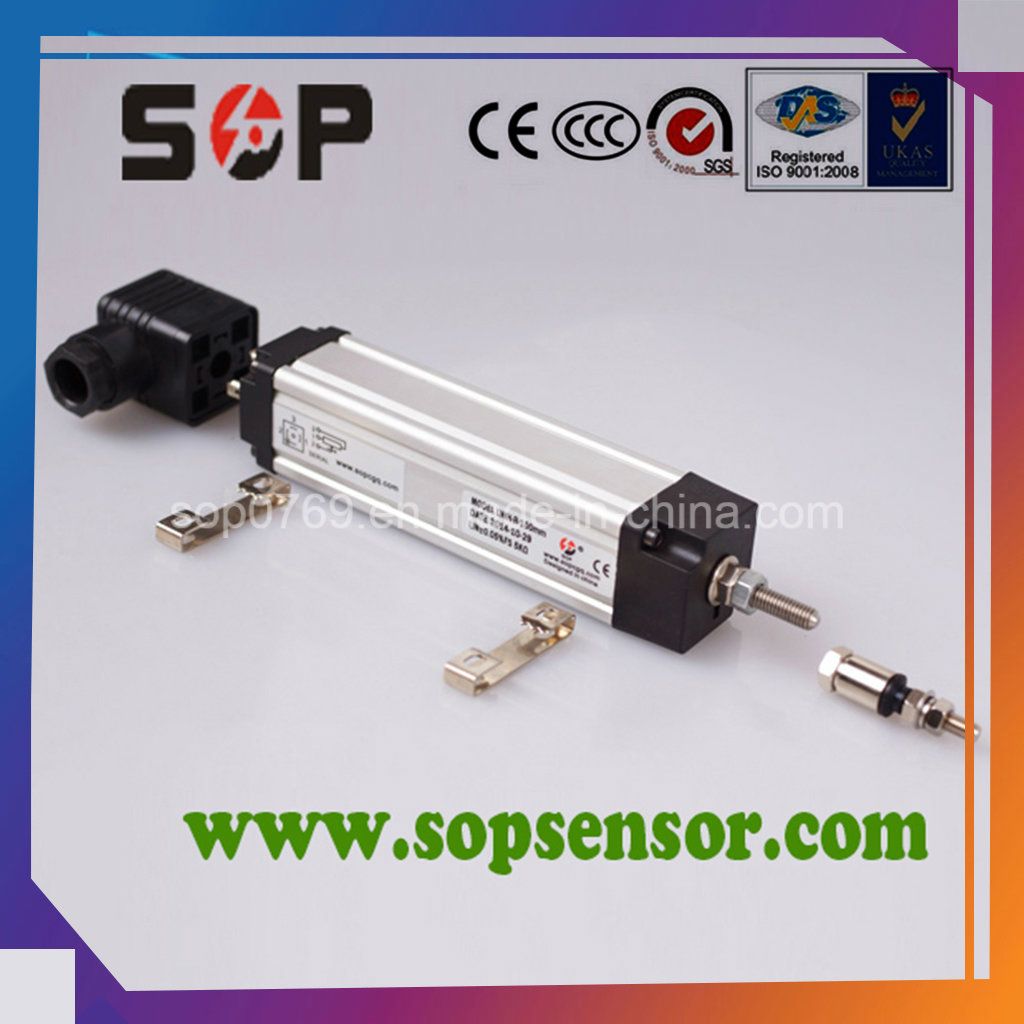

Rod Displacement Sensor for Position Measurement

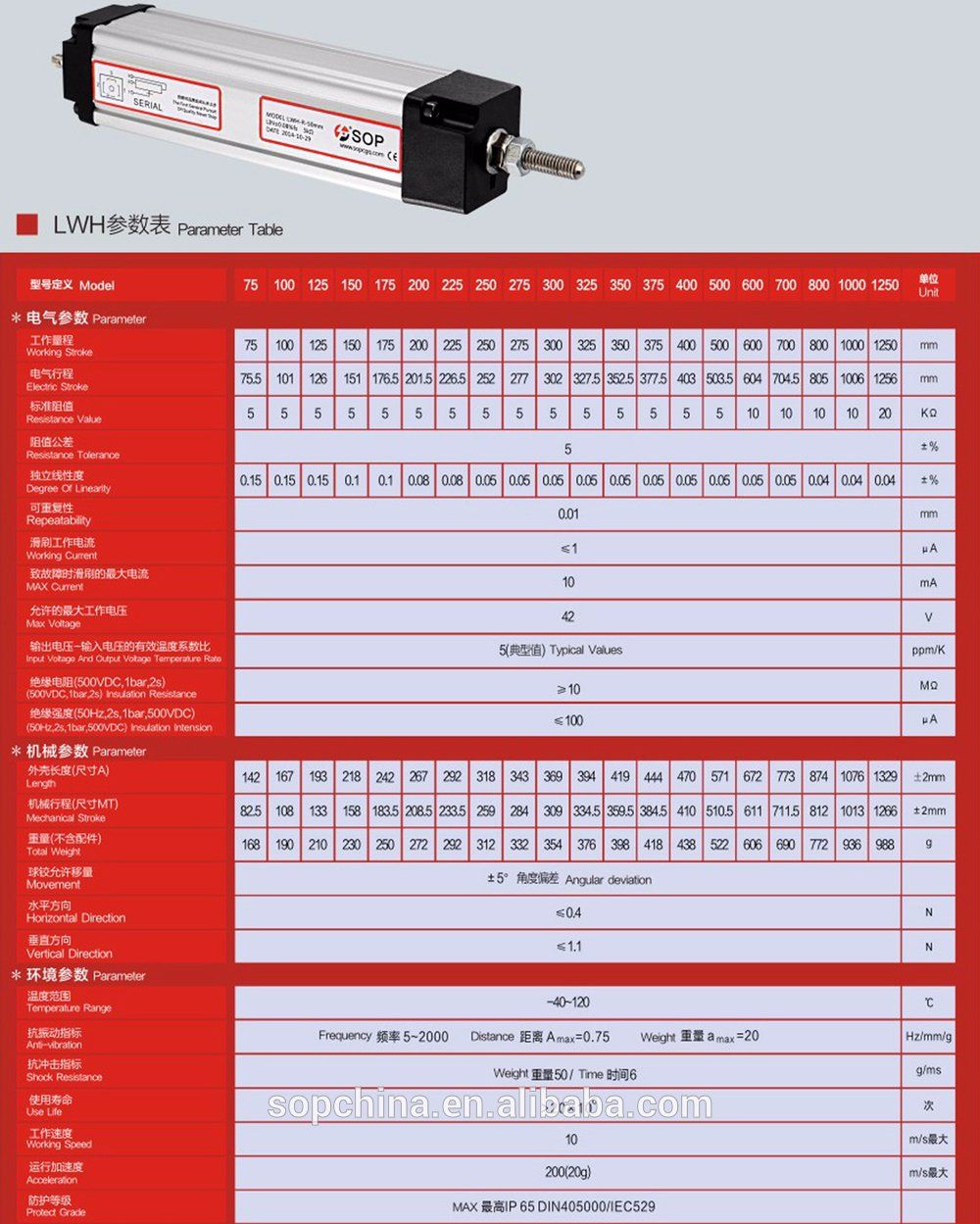

Repeatability	Working Speed	Working Current	Working Stroke	Temperature Range	Horizontal Direction	Vertical Direction
mm	m/s	μA	mm	ºC	N	N
0.01	10	≤1	75-1250	-40~120	≤0.4	≤1.1

KTC sensor range: 75mm-1250mm

Current signal range: 4-2MA, voltage range: 0-5V,0-10V

Resistance range: 1kΩ-10Ω a few trips in the world, output signal of one of the manufacturer of the widest range of transducers

Sensor Product Feature:

Usage life is longer, Times could reach fifty million
Linear excellent
Resolution rate is higher than 0.01mm
High speed
Din43650 standard plug and socket
Protection grate is ip65
Could equip with voltage and current (2line, 3line) module

Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

Packing with standard carton
Are your company a Professional manufacturer?
Yes, we are a factory with 13 years' custom production.
What's your company warranty policy?
After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.
