Rod End Load Cell Rod End Load Cells

Name: Rod End Load Cell Rod End Load Cells
Brand: all-electronics-online.com
SKU: 794266125
Availability: InStock
Rating: 4.5 (23 reviews)

Price:	US $ 65/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-64
Type:	Pancake Load Cell
Capacity:	From 0.5kg to 200kg
Ultimate Overload:	Fs% 150
Safe Overload:	Fs% 120
Aplication:	Vibratory Feeding Equipment
Pattern:	Pancake Load Cell

Product Description

Rod End Load Cell | Rod End Load Cells

Product Discription:

QH-64 load cells are available in the capacities from 0.5kg to 200kg.

Alloy.steel construction with spoke type. Tension and/or compression loading.

Silicon adhesive sealed, waterproof, anti-corrosion and suitable for all kinds of environment.

Integral structure and easy installation.

Suitable for force control in production process, vibratory feeding equipment and other electronic weighing devices.

Features:

Capacity: 0.5kg to 200kg.

IP rating: IP66 & IP67

High accuracy.

Integral installation

Alloy steel or stainless stell

Simple construction.

Reliable performance.

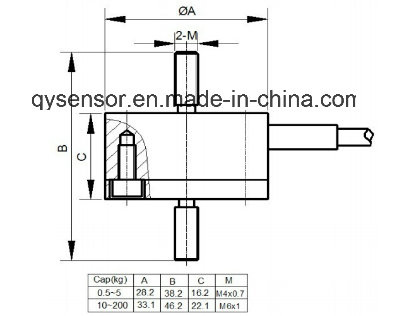

Electrical connection and Dimensions:

Technical Specifications:

Specifications:
capacity	kg	0.5,1,5,10,50,100,200
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	1.0 ± 0.1
excitation voltage	Vdc	9 ~ 12
combined error	%FS	± 0.2
zero unbalance	%FS	± 10
non-linearity	%FS	± 0.02
hysteresis	%FS	± 0.02
repeatability	%FS	± 0.01
creep	%FS/30min	± 0.02
input resistance	Ω	350 ± 10 & 700±10
output resistance	Ω	350 ± 10 & 700±10
insulation resistance	M Ω	≥ 1000 @ 100 Vdc
operating temperature range	ºC	-20 ~ +55
compensated temperature range	ºC	-10 ~ +40
temperature coefficient of SPAN	%FS/10ºC	± 0.5
temperature coefficient of ZERO	%FS/10ºC	± 0.5

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white

Four-core shielded cable with polyethylene. Cable is not connected with elastomer.

Cable length:2 m

Cable diameter :3 ±0.2 mm

The cable length could be chose by customer's application.

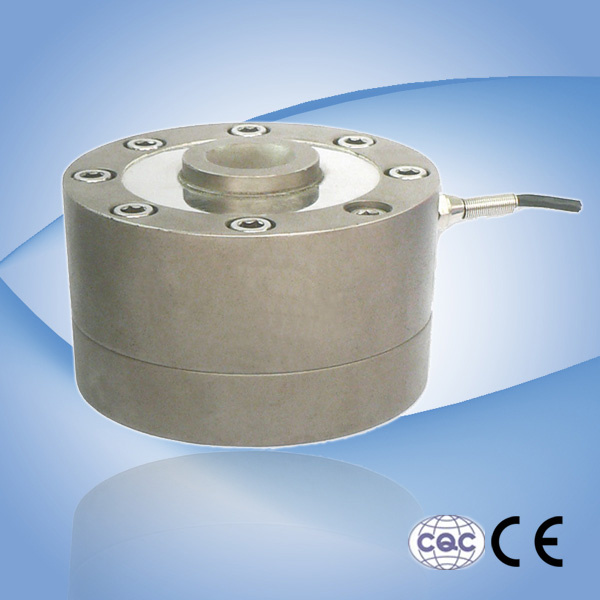

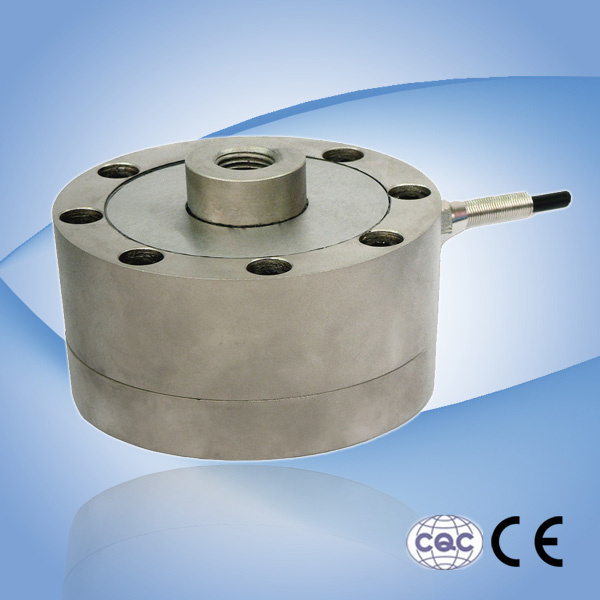

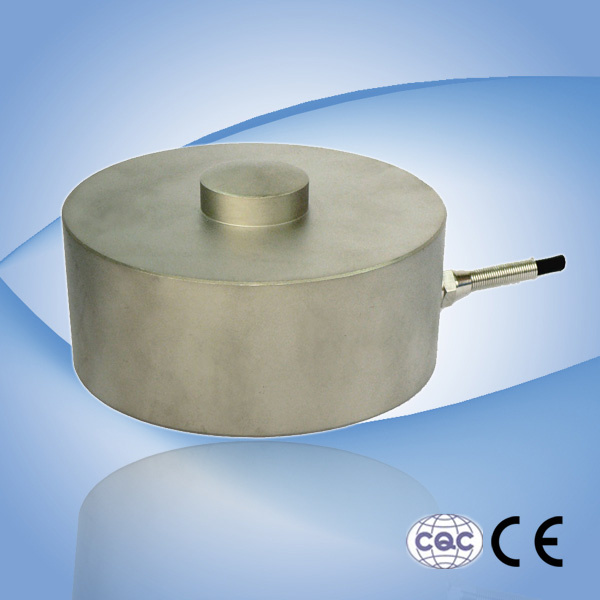

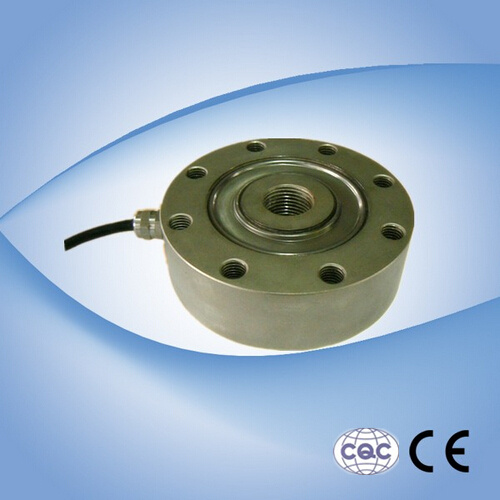

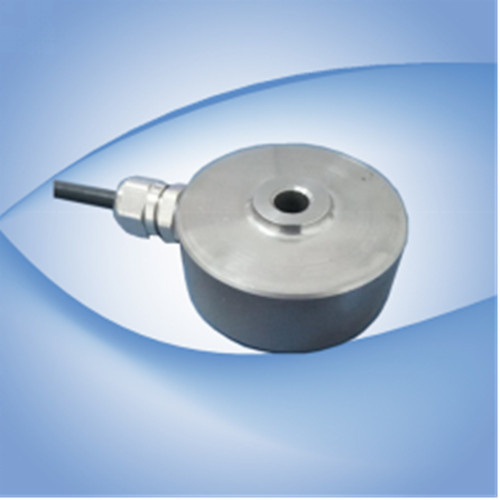

Other Types Of Compression Load Cell
