Rod Type High Quality Sop Displacement Sensor

Name: Rod Type High Quality Sop Displacement Sensor
Brand: all-electronics-online.com
SKU: 820070755
Availability: InStock
Rating: 4.7 (44 reviews)

Price:	US $ 100-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KTC
Model:	Ktc
Voltage:	42V
Repeatability:	0.01mm
Working Stroke:	75-1250mm
Material:	Alumiune Alloy

Product Description

Rod Type High Quality Sop Displacement Sensor

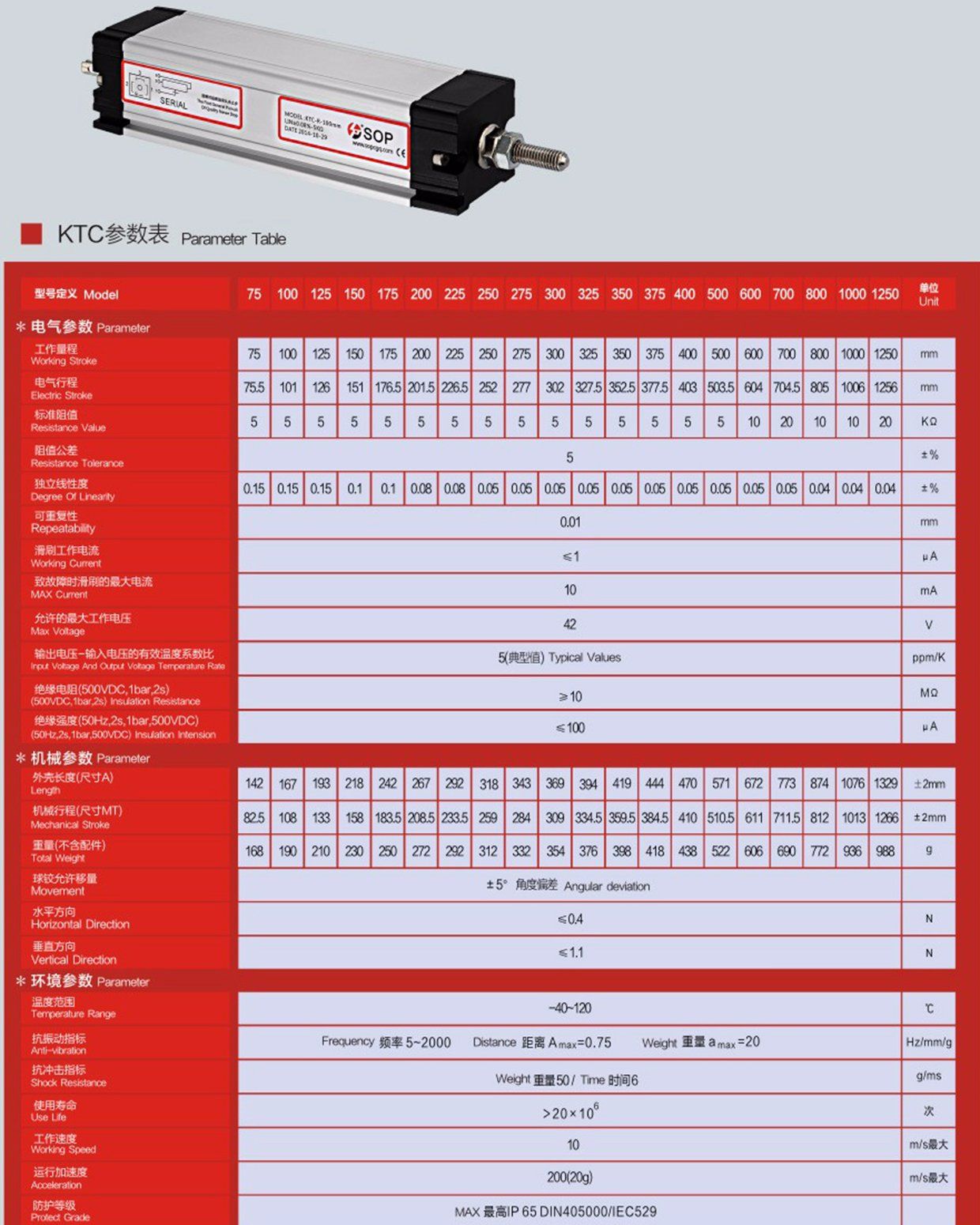

Repeatability	Working Speed	Working Current	Working Stroke	Temperature Range	Horizontal Direction	Vertical Direction
mm	m/s	μA	mm	ºC	N	N
0.01	10	≤1	75-1250	-40~120	≤0.4	≤1.1

13 years sensing technology crystallization focus on precise measurements of machinery industry, SOP company who never stop pursing the quality is just for you.
Poor selection of the industry's first high-profile, focus on quality, did not compete.

Feature:

Usage life is longer, Times could reach fifty million
Linear excellent
Resolution rate is higher than 0.01mm
High speed
Din43650 standard plug and socket
Protection grate is ip65
Could equip with voltage and current (2line, 3line) module

General KTC rod series linear position sensor for accurate measurement of displacement or length. Measuring stroke 75mm ~ 1250mm, both ends 4mm punch return trip, the linear accuracy of 0.15% ~ 0.04% FS, repeatability ± 0.01mm. Ensure the structural design of the sensor easy to install, solid and reliable. Shell was anodized, beautiful appearance, corrosion resistance, built-conductive plastic measuring unit, no temperature drift, long life, to ensure smooth operation. Ingress Protection IP65, DIN43650 Standard plugand socket for a wide range of signal transmission more stable, rod ball with a 0.5mm automatic centering function, repair lithography resistance not only to meet your linearity requirements, and can be revised based on customer requirements cut resistance value size.

Key Features

0 to 5000mm measuring range
Rugged, compact design
Profiled enclosure
Analog wire sensor
Protected to IP67
CE Approved

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
