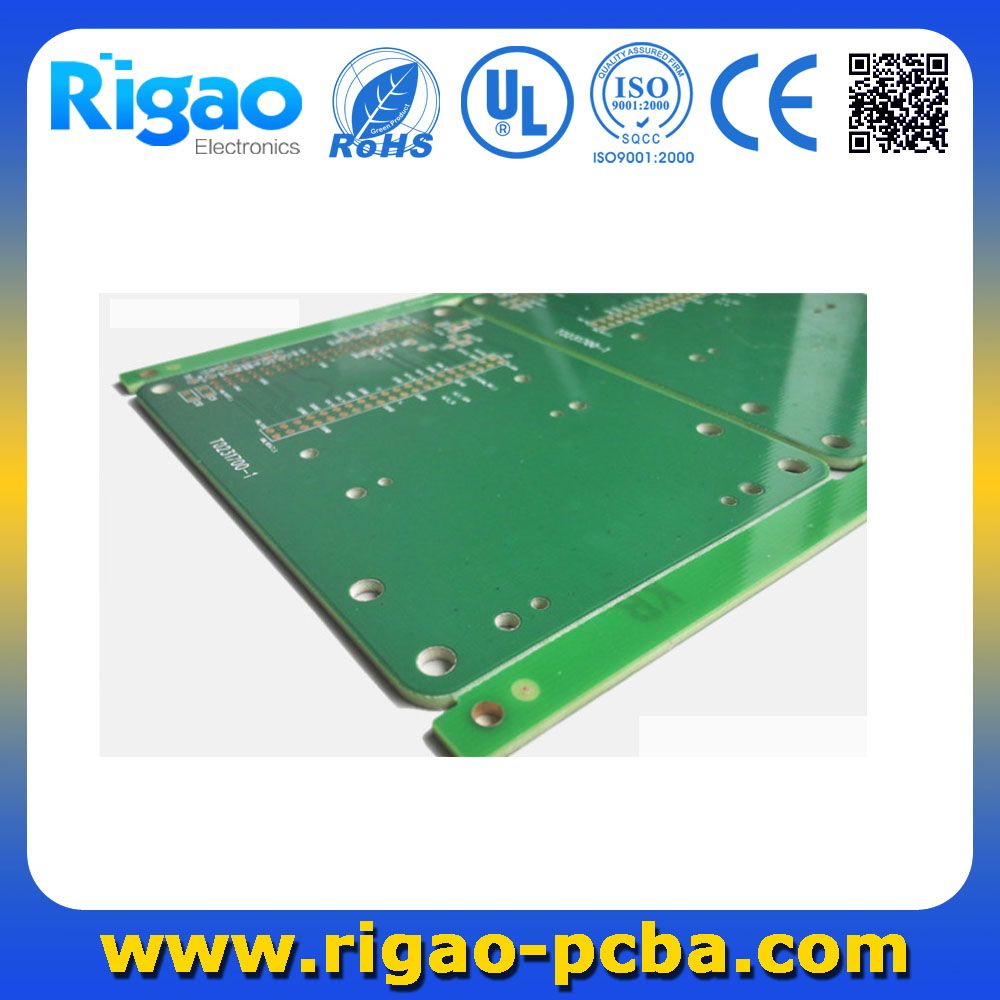

Rogers Doubled-Sided PCB Prototype and Mass Producation

Prod Model:	Rogers Doubled-sided PCB Prototype
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface Treatment:	Enig,HASL,OSP
Anti Peel-Strength:	59n/Mil
Dielectric Constant:	2.1-10
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Paper Phenolic Copper Foil Substrate
Flame Retardant Properties:	V0
Insulation Materials:	Fr4
Brand:	Rigao

Product Description

Rogers Doubled-sided PCB Prototype and mass producation

1. Specifications
PCB assembly . PCBA ,Circuit assembly,
1:PCB manufacture,
2:Prompt delivery
3: No MOQ
4:Final function e-test

PCB layout ,PCB PCBA  and Circuit assembly from China Professional supplier
Leadsintec specializes in producing the various electronic products based on your customized designs and do pcba,pcb assembly for all kinds of small ,medium Volume electronic products
The product field includes but are not limited to:
Industrial control
Alarm products
Measurement device
Telecom audio and video
Electronic security health and medical
LED application test instrument
Consumer electronics
Enabling you to focus on product development and sales, we can solve your production technology issues and take care of product quality.
The operation we can handle for you is from the Bare pc board fabrication, full component procurement, SMT/BGA/DIP assembly, mechanical/case assembly, rubber molding, functional testing, repair, inspection of finished goods to shipment arrangement

2.PCBA Technical Capability


pcba
Article	Description	Capability
Material	Laminate materials	FR4,Alu,CEM3,Taconic,Rogers
Board cutting	Number of layers	1-58
	Min. Thickness for inner layers  (Cu thickness are excluded)	0.003"(0.07mm)
Board thickness	Standard	0.04-0.16"±10%(0.1-4mm±10%)
	Min.	Single/Double layer: 0.008±0.004"
		4 layer: 0.01±0.008"
		8 layer: 0.01±0.008"
	Bow and twist	<7/1000
Copper weight	Outer Cu weight	0.5-4 oz
	Inner Cu weight	0.5-3 oz
Drilling	Min size	0.0078" (0.2mm)
	Drill deviation	±0.002" (0.05mm)
	PTH hole tolerance	±0.002" (0.005mm)
	NPTH hole tolerance	±0.002" (0.005mm)
Plating	Min hole size	0.0008" (0.02mm)
	Aspect ratio	20 (5:1)
Solder mask	Color	Green,white,black,red,yellow,blue...
	Min solder mask clearanace	0.003" (0.07mm)
	Thickness	0.0005-0.0007"(0.012-0.017mm)
Silkscreen	Color	White,black,yellow,red,blue...
	Min size	0.006" (0.15mm)
E-test	Flying Probe Tester	Y
Controlled  Impedance	Tolerance	±10%
	Impedance tester	Tektronix TDS8200
Surface Finish	HASL,ENIG,immersion silver,immersion tin,OSP...

3. Application
Products are applied to a wide range of High-tech industries such as: LED,
telecommunication, computer application, lighting, game machine, industrial
control, power,automobile and high-end consumer electronics, ect.
By unremitting work and effort to the marketing, products exports to American,
Canada, Europe counties,Africa and other Asia-pacific countries.

4. Lead Time


Lead Time for samples	9-10 days for single-sided pcba
	12-14 days for double-sided pcba
	16-20 days for multilayer pcba
Lead Time for Mass production	14-20 days for single/double sided pcba
	18-24 days for single/double sided pcba
Lead Time for Making Mould	10-15 days for normal mould
	20-28 days for hard mould


5. FAQ
In order to assist our customers and expedite the PCB services, we have detailed below the commonly asked questions about PCB manufacturing.
What service can you provide?
We can provide PCB gerber file design,Copy and Clone,OEM and ODM service.
Not only produce PCB,PCB Assembly,but also Plastic Enclosure,and Complete products
Are my design files secure when I send them to you?
Your files are held in complete safety and security while Rigao PCBA Limited is in possession of them. Your files are never shared nor will any third parties have access to your design files. Since they are your property, we respect the copyright of your files. The customer controls the disposition of these files per your requirements and written approval.
For small quantity orders, can you produce prototype PCBs?
Yes.Rigao PCBAElectronics hasthe capability to produce PCBs in any amount. But,the greater the quantity, the greater the cost savings.
Do you have an order minimum?
We accept order with as low as a quantity of 1 piece .
What file formats do you accept for PCB assembly?
 Gerber and CAM Auto CAD DXF, DWG formats.
Welcome to find Rigao Electronics .We are your honest partner !
