Rohs Approved Xb2 Series of Push Button Switches
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
XB2, CB2, HB2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mounting Size: |
22mm |
| Operational Voltage: |
No Exceed Than 380AC or No Exceed Than 220DC |
| Operational Temperation: |
-25 to +70 |
| Operational Humidity: |
45% to 90% |
| Power-Frequency Withstand Voltage: |
2500V AC, 1min |
| Mechanical Durability: |
Monentary 1000, 000, Maintained 250 |
| Electrical Durability: |
500, 000 |
| Protection Grade: |
IP40, IP67 with Cover |
| Certificate: |
CCC, CE |
| Usage: |
Control Button |
Product Description
We can supply all range of XB2 series of push button switch and accessories
Push Button Switch(push button, pusbutton
Application and main technical parameters
1) Mounting size: 22mm
2) Operational Voltage: No exceed than 380AC or no exceed than 220DC
3) Operational temperation: -25 to +70
4) Operational humidity: 45% to 90%
5) power-frequency withstand voltage: 2500V AC, 1min
6) contact resistance: ≤ 50mΩ
7) Mechanical durability: Monentary 1000, 000, maintained 250, 000
8) Electrical durability: 500, 000
9) Protection grade: IP40, IP67 with cover
10)Certificate: CCC, CE

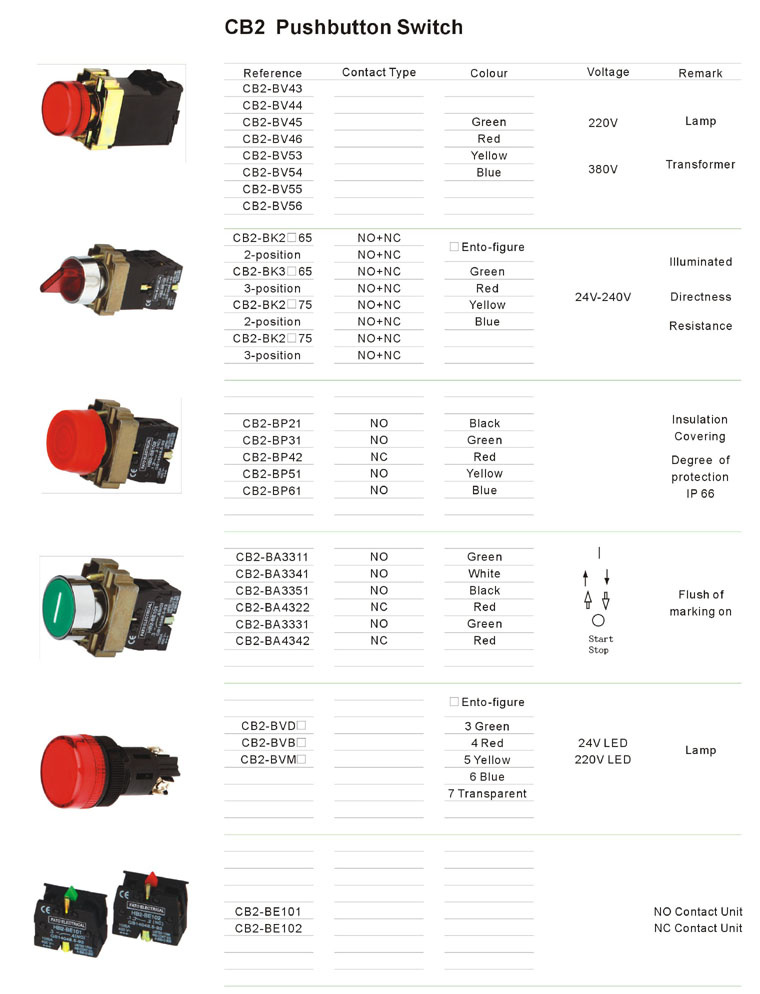

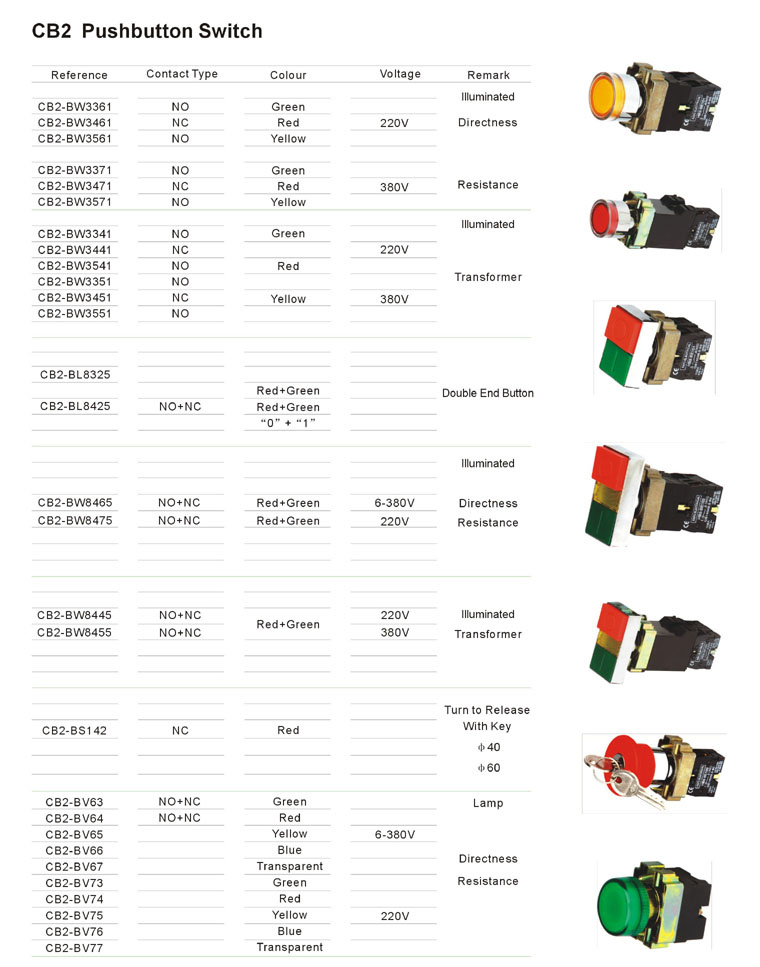

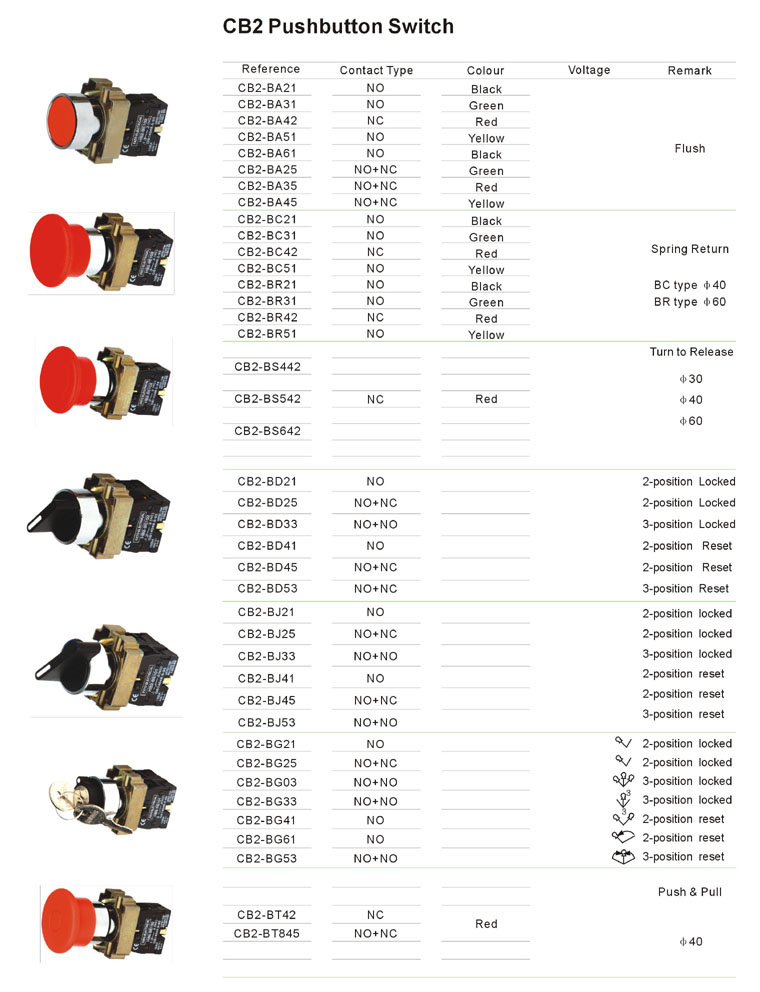

| Flush Push button | XB2-BA31 | GB2-BA31 |
| Flush Push button | XB2-BA42 | GB2-BA42 |
| Flush Push button | XB2-BA35 | GB2-BA35 |
| Flush Push button | XB2-BA45 | GB2-BA45 |
| Flush Push button | XB2-BA25 | GB2-BA25 |
| 2-position Selector switch | XB2-BD21 | GB2-BD21 |
| 3-position Selector switch | XB2-BD33 | GB2-BD33 |
| 2-position Long Lever | XB2-BJ25 | GB2-BJ25 |
| 3-position Long Lever | XB2-BJ33 | GB2-BJ33 |
| Emergency | XB2-BS542 | GB2-BS542 |
| Mushroom pushbutton | XB2-BC42 | GB2-BC42 |
| Push-pull Mushroom pushbutton | XB2-BT42 | GB2-BT42 |
| 2-position key switch | XB2-BG21 | GB2-BG21 |
| 3-position key switch | XB2-BG33 | GB2-BG33 |
| 2-position return key switch | XB2-BG73 | GB2-BG73 |

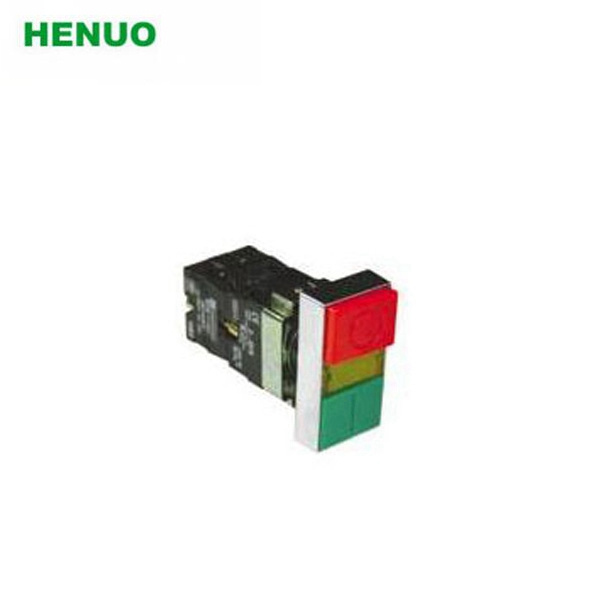

| Double button | XB2-BL8325 | GB2-BL8325 |
| Selector switch with light | XB2-BK2361 | GB2-BK2361 |
| Double button with light | XB2-BW8465 | GB2-BW8465 |
| Double button | XB2-BL8465 | GB2-BL8465 |
| key mushroom | XB2-BS142 | GB2-BS142 |
| Illuminated pushbutton | XB2-BW3361 | GB2-BW3361 |
| Illuminated pushbutton | XB2-BW3462 | GB2-BW3462 |
| pushbutton contact block | ZB2-BE101 | ZB2-BE101 |
| pushbutton contact block | ZB2-BE102 | ZB2-BE102 |
| Flush Push button | XB2-EA31 | GB2-EA31 |
| Flush Push button | XB2-EA42 | GB2-EA42 |
| Flush Push button | XB2-EA35 | GB2-EA35 |
| Flush Push button | XB2-EA45 | GB2-EA45 |
| Flush Push button | XB2-EA25 | GB2-EA25 |
| 2-position Selector switch | XB2-ED21 | GB2-ED21 |
| 3-position Selector switch | XB2-ED25 | GB2-ED25 |
| 2-position Long Lever | XB2-ED33 | GB2-ED33 |
| 3-position Long Lever | XB2-EJ25 | GB2-EJ25 |
| Emergency | XB2-EJ33 | GB2-EJ33 |
| Mushroom pushbutton | XB2-ES542 | GB2-ES542 |
| Push-pull Mushroom pushbutton | XB2-EC42 | GB2-EC42 |
| 2-position key switch | XB2-ET42 | GB2-ET42 |
| 3-position key switch | XB2-EG21 | GB2-EG21 |
| 2-position return key switch | XB2-EG33 | GB2-EG33 |
| Double button | XB2-EG73 | GB2-EG73 |
| Selector switch with light | XB2-EL8325 | GB2-EL8325 |
| Double button with light | XB2-EW8465 | GB2-EW8465 |
| Double button | XB2-EL8465 | GB2-EL8465 |
| key mushroom | XB2-ES142 | GB2-ES142 |
| Illuminated pushbutton | XB2-EW3361 | GB2-EW3361 |
| Illuminated pushbutton | XB2-EW3462 | GB2-EW3462 |
Yueqing Heng Nuo Imp. & Exp. Co., Ltd. is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.
From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly. Mainly including:
1. Electrical apparatus: Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.
2. Wiring accessories: Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.
3. Hardware: Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.
4. Tools: Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on
5. Fire alarm and warning system: Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on
Internationalization standard quality guarantee system:
The product quality of Tengen Group has been strictly controlled in each working procedure,
Many kinds of internationalization standard quality guaranteed system can be highly effective
Under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently
Make sure of our product quality.
"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American
FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management
System authentication, CCC authentication, European Union CE safe Authentication, American UL
Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first
Side laboratory -- low voltage electric appliance test center which is the first connected with
International in China.
We promise to offer you superior products, favorable price, and timely delivery. If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
