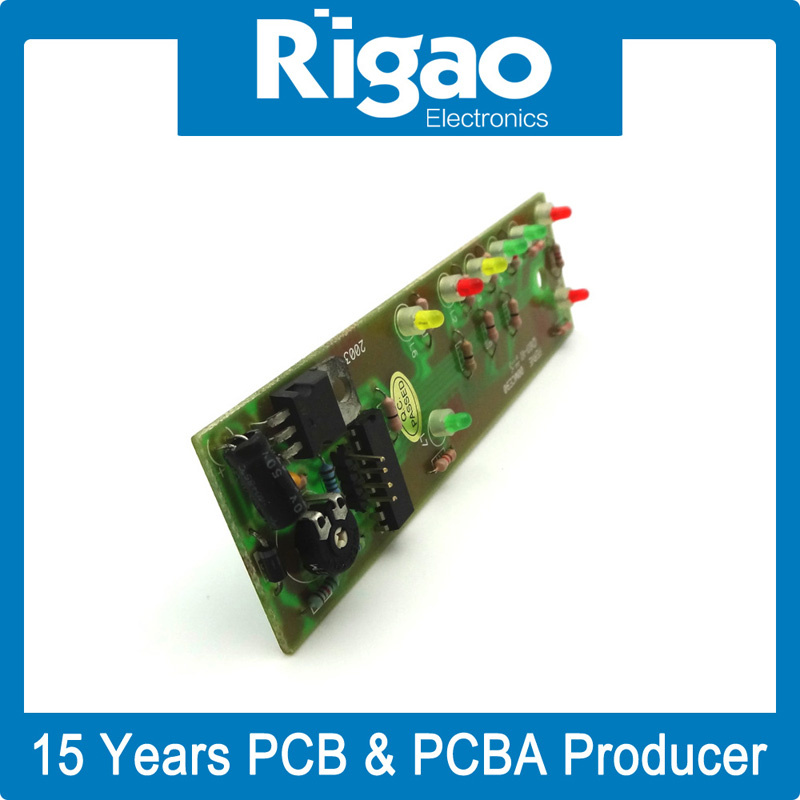

RoHS Ce Certificate PCBA

Prod Model:	pcba-007
Small Order:	Acceptable
PCBA-Testing:	X-ray,Aoi
OEM:	Yes
Solder Mask Color:	Green, Black, Red, Blue, Yellow
SMT Efficency:	Qfp, Tqfp, Qfa
PCB:	PCB Assembly
Material:	Complex
Type:	Rigid Circuit Board
Application:	Consumer Electronics
Shape:	Square
Metal Coating:	Tin
Mode Of Production:	SMT
Layers:	Double-Layer
Base Material:	FR-4
Certification:	ISO
Customized:	Customized
Condition:	New

Product Description

Welcome to  visit our company wesbite !

Hoverboard multilayer pcb board OEM PCB for Electronic Consumer

One-stop EMS service-----Your reliable PCB and PCB Assembly Supplier

1. Company Profile:
Founded in 2008, Shenzhen Rigao Electronics is privately held Shenzhen Corporation,dedicated in providing electronic engineering and manufacturing services.
After several years of development,Rigao has become an international provider of
solutions in three principle areas: Printed circuit board procurement, PCB assembly
procurement and component procurement and Flexible flat cable, FPC flat cable connectors.
As an experienced PCB and PCBA manufacturer,we provide prototypes,small volume
projects, medium volume projects and large volume projects. We are able to
maintain a complete service system with comprehensive technical backup as well
as cost advantage and scheduled delivery.
Our main services include offering:
 Rigid PCB (up to 22 Layers),
 Flexible PCB/FPC (1~6 Layers),
 Rigid-Flex (2~10 Layers),
 Aluminum-based PCB (1~4 Layers),
 High Density Interconnection/HDI PCB,
 High frequency material PCB
 Assembly Services
 Components purchasing

2. Detailed Specification of PCB Manufacturing

General Specifications  Capability
Material Requirements:

Size	Max.Finshed Size	20.9"x24.4"(530mm x 620mm )
Board Thickness	Standard	0.004"to0.16 " ±10% ( 0.1mmto4.0mm±10% )
	Min.	Single/ Double-sided:0.008"±0.004"(0.2mm ±0.1mm)
		4-layer:0.01"±0.008"(0.4mm ±0.1mm)
		8-layer :0.01"±0.008"(0.4mm ±0.1mm)
	Bow and twist	< 7/1000
Copper  Weight	Outer Cu weight	0.5oz ~ 3.0oz
	Inner Cu wight	0.5oz ~ 3.0oz
Laminate Materials	FR-4,FR-1,,FR-2,CEM-1,CEM-3


Process Requirements:

Solder Mask	Color	green,light green,white,black,dark brown,yellow,red,blue
	Min. solder mask clearance	0.003"(0.07mm)
	Thickness	0.0005"-0.0007"(0.012mm-0.017mm)
Silkscreen	Color	White,black,yellow,red,blue,green
	Min. Size	0.006"(0.15mm)
Surface Finish	HASL,HASL pb free,immersion gold,immersion silver,immersion tin,O.S.P (Entek),S/G plating,ENEPIG,G/F plating,carbon


Quality Control:

Electrical testing	Flying Probe Tester	Y
Controlled Impedance	Tolerance	±10%
	Impedance tester	Tektronix TDS8200
Routing	End Mills Test	± 0.006"(0.15mm)
	CNC Tolerance	±0.004"(0.1mm)
	V-Cut Depth V-cut	FR-4(1/3+-0.1mm);FR-1,FR-2,CEM-1,CEM-3(1/2+-0.1mm)
	V-cut angle V-CUT	15°,18°,30°
	V-CUT	line,hole,V-shape



3. Certificates


UL Cert.	Y
ISO Cert.	ISO9001 :2008
TS16949	Y
ISO14000	Y


Manufacturing Capability for PCB Board
- Contract Manufacturing
- Engineering Services
- PCB Design & Assembly and copy service
- Prototyping
- Components purchasing
- Cable and Wire Assemblies
- Plastics and Molds
- Fast turn around

1. Double-Sided FR4 material 1 oz copper pcb board
2. Green solder mask, Immersion gold
3. with Competitive price

Our main services include offering
Rigid PCB (up to 22 Layers),
Flexible PCB/FPC (1~6 Layers),
Rigid-Flex (2~10 Layers),
Aluminum-based PCB (1~4 Layers),
High Density Interconnection/HDI PCB,
High frequency material PCB
Assembly Services
Components purchasing


4. Why choose us?

Our manufacturing and quality control processes are ISO 9001:2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best."
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, " To be the most reliable supplier of PCB and PCBA."
Our orientation is clear, "Focus on prototypes and low to medium volume business "


5. Our Services:

We can provide the following services: Fully Electronic Manufacturing Services(EMS):
1. PCB Assembly: SMT, THT/DIP, BGA, COB soldering.
2. PCB Manufacture: 1-64 layers, Buried & Blind via PCB, Imdepence PCB, Highfrequency PCB, FR-4, Flexible PCB, Flex-rigid PCB, Aluminium PCB.
3. PCBA Testing Jigs: PMMA, Automated & Manual Tooling.
4. Design: we need a idea or schematic diagram for PCB & PCBA design.
5. Copy & Clone: PCB and PCBA copy, we can provide you gerber file and BOM file after we done. Welcome all kindly of pcb and pcb assembly business for inquiry, we will feedback to you soon.


If you are interested in our products, pls feel free to contact me.
Thank you.
